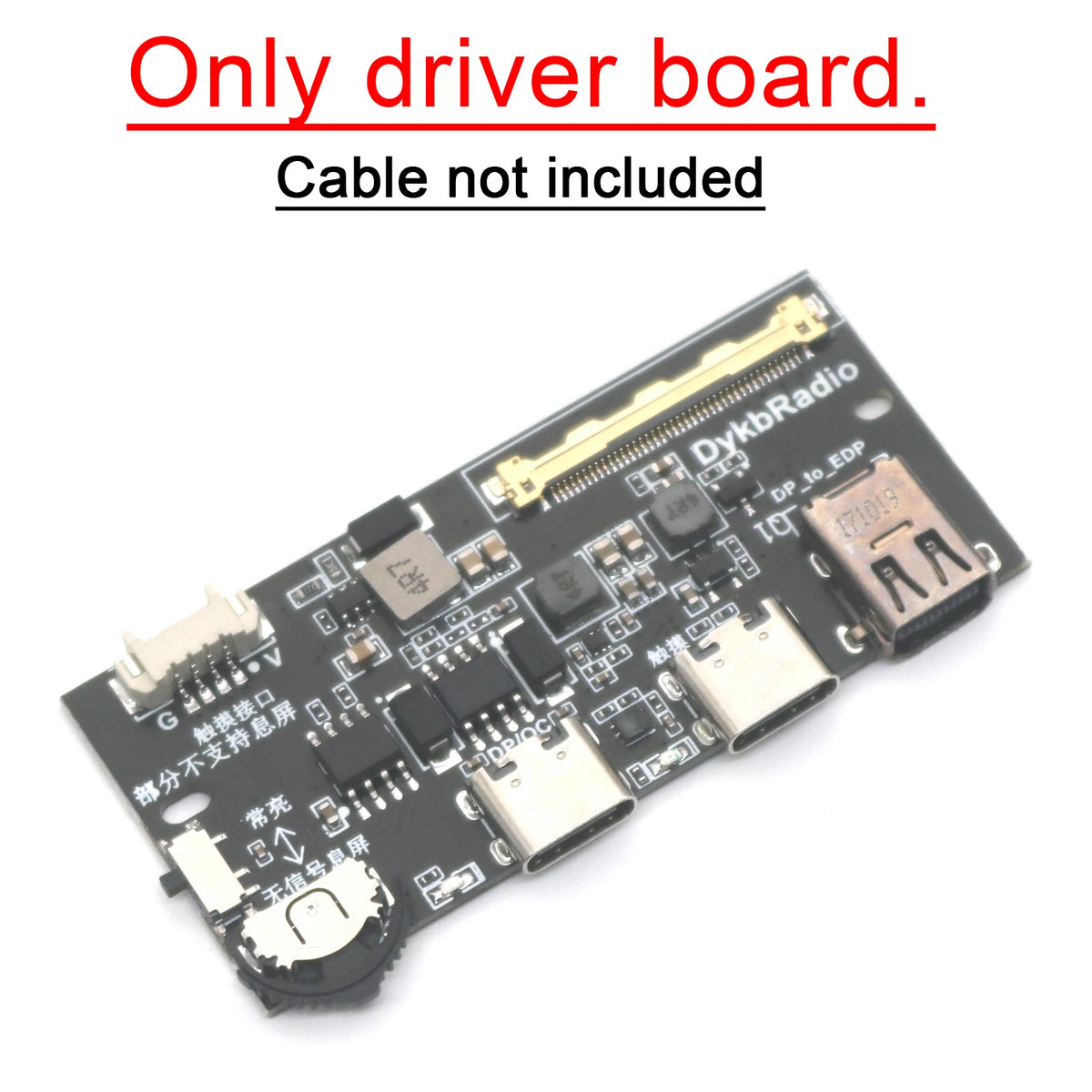

2K 4K DP to EDP Driver Board EDP Signal Adapter 144HZ 6

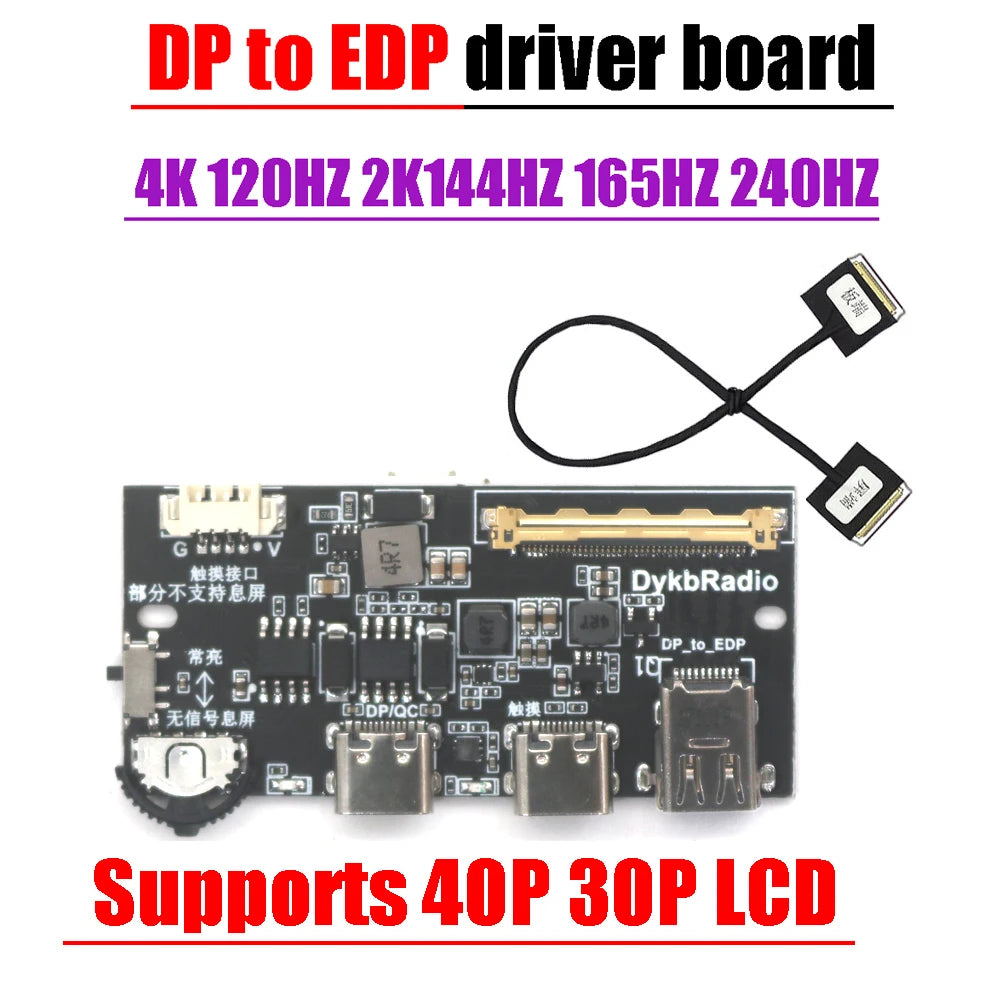

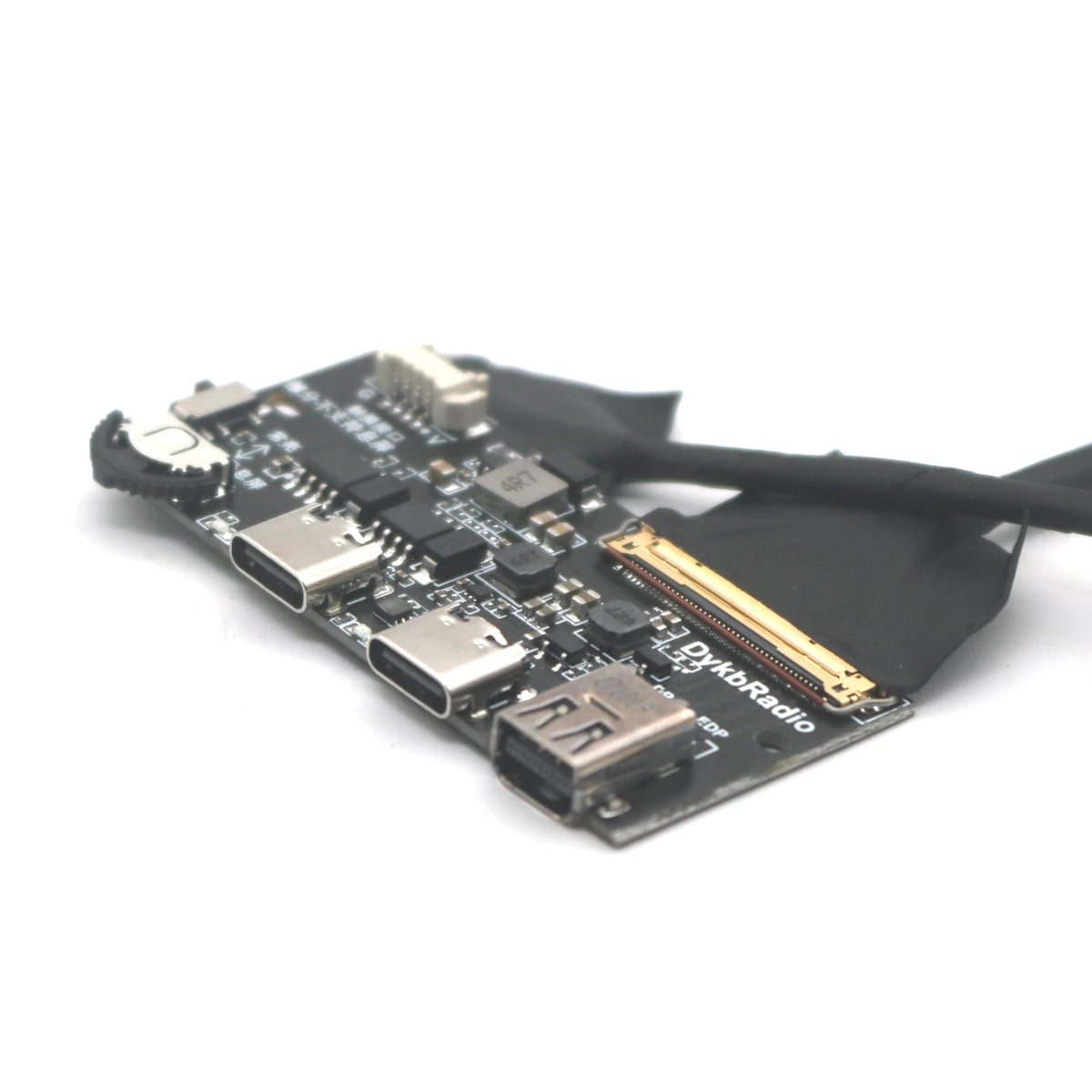

2K 4K DP to EDP Driver Board EDP Signal Adapter 144HZ 60HZ LED Portable 30pin 40pin LCD Display Screen Laptop Coaxial EDP Cable

$70.99 $95.99

4K 120HZ DP to EDP driver board 2K144HZ 165HZ 240HZ portable display laptop MINIDP INPUT DIY

Attention

Only Support EDP output signals . Please check whether the model is EDP signal output on the Internet screen before purchasing

LVDS is not Support

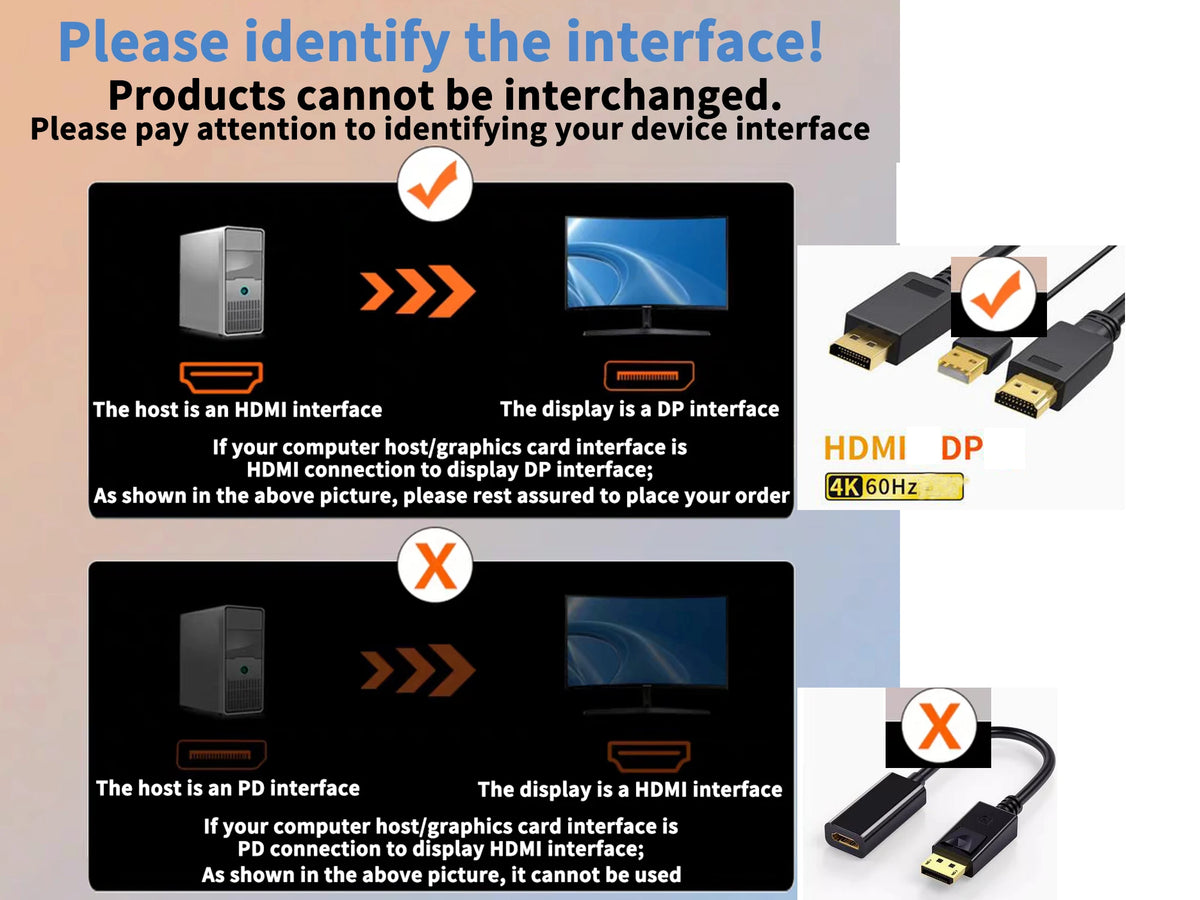

Note: supports HDMI to DP CABLE .BUT ONLY CAN supports 60hz. if use dp to dp cable . it can supports 60HZ-360HZ ..

Canot work dp to HDMI CABLE

IF YOU NEED BUY CABLE . YOU CAN BUY THE LINK

https://www.aliexpress.com/item/1005006480916305.html

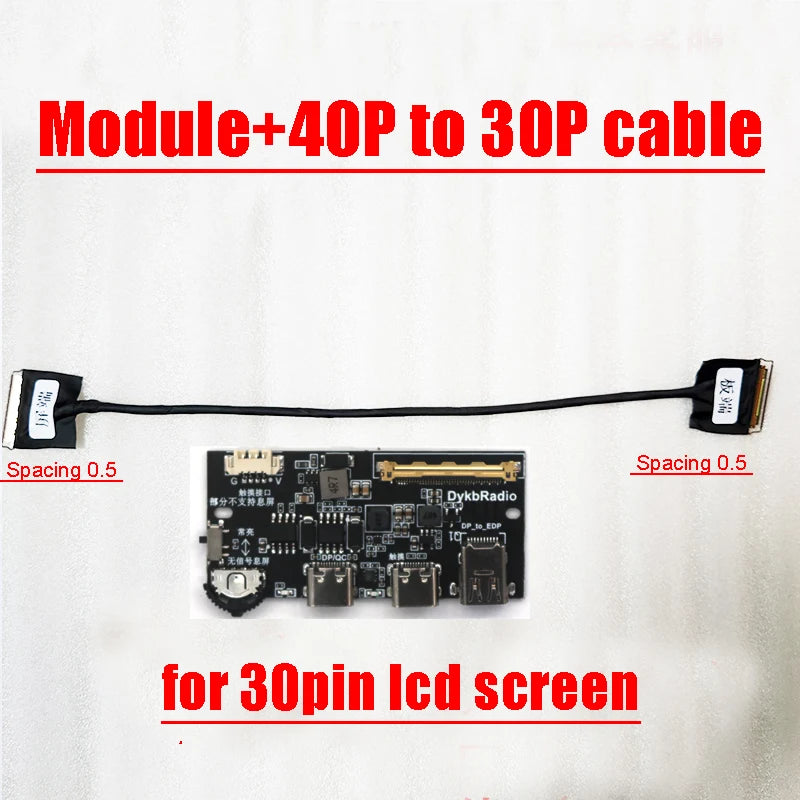

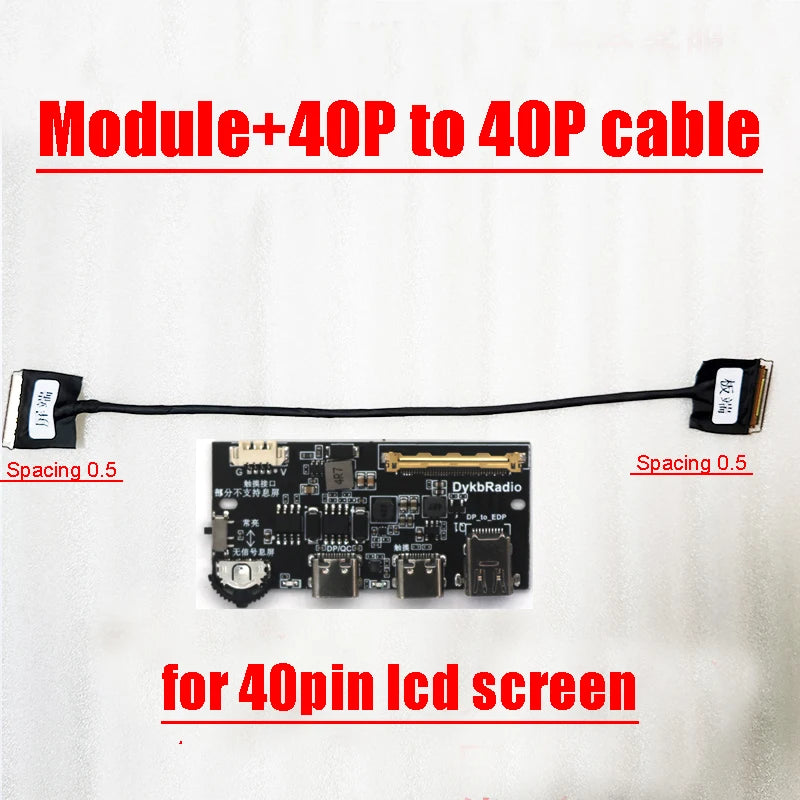

MINIDP CABLE

https://www.aliexpress.com/item/1005006482621080.html

HDMI TO DP CABLE only supports 60hz

https://vi.aliexpress.com/item/3256807043449422.html?gatewayAdapt=glo2vnm4itemAdapt

Attention:

1.If the blue indicator light is working Prove that the driver board is working

2.If the screen does not light up, it proves that the model of the screen is not supported or you can Uninstall the graphics driver. Reinstall it. Then reboot your computer try

3.interface of the screen is EDP, not compatible with Nvidia graphics cards. Most AMD graphics cards support it.

4.Some graphics card drivers need to be updated

5.Not supported (converter head).Not supported (converter head). Not supported (converter head).Not supported (converter head).Not supported (converter head)

The item supports EDP HBR3 up to UHD+4K144hz LCD MONITOR driver board.

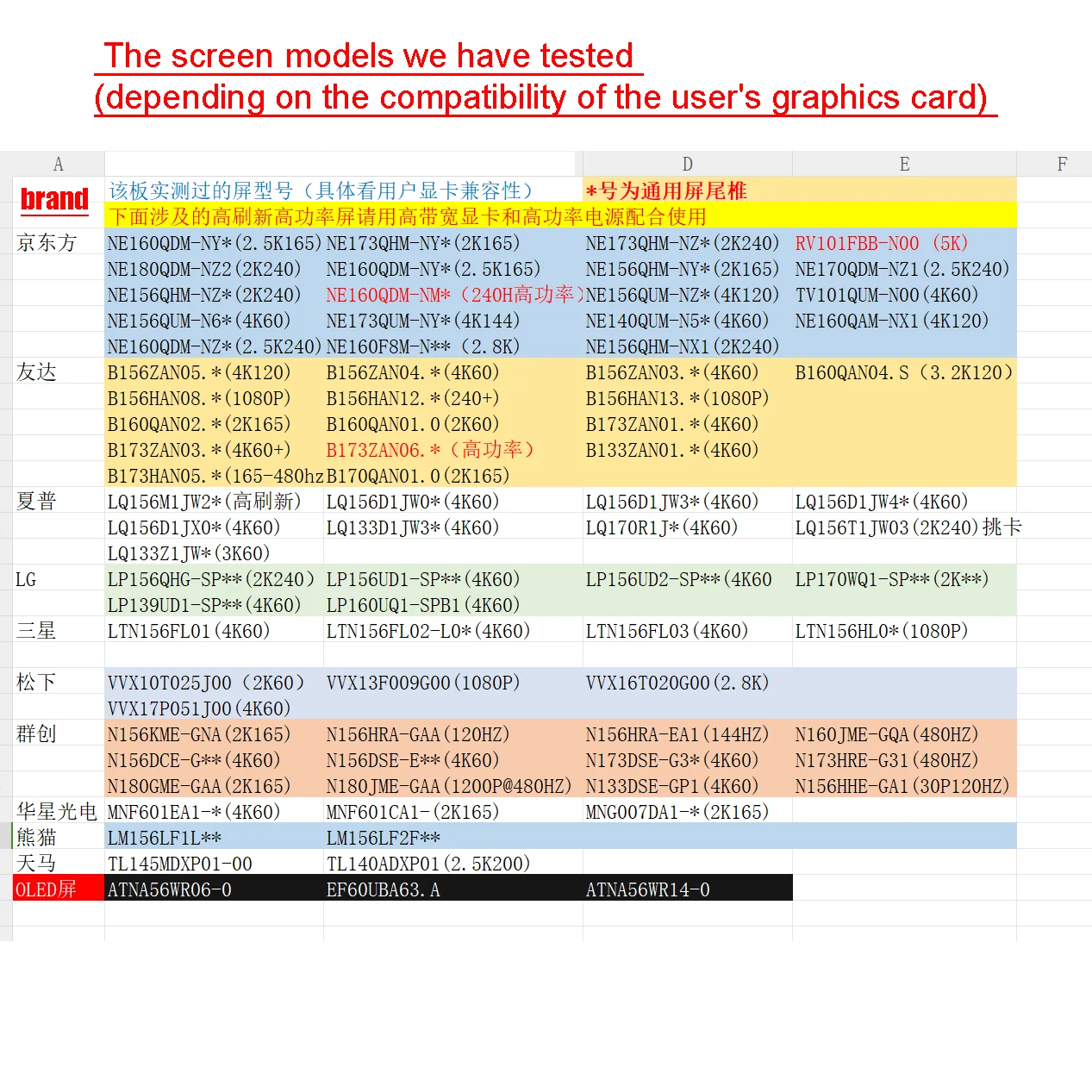

The product supports mainstream resolution TFT LCD screens such as FHD+, QHD+, UHD+, etc., such as pen EDP signal type LCD screens from brands such as BOE, Youda, Sharp, Huaxing Optoelectronics, LG, Samsung, etc.

2、 Featured features

2.1 Mini DP interface supports DP1.4 protocol, up to support 4K@144HZ ; 2.2 Supports fast charging protocols such as PD3.0/2.0, QC, BC1.2, etc;

2.2 Support no signal standby screen shutdown (may be ineffective for some screens or signal adapters, please turn on the normally lit switch);

2.3 Support USB protocol touch input;

2.4 Support self-test mode/aging mode Test (optional);

2.5 Upgrade the power chip to support a maximum of 60W LCD screen (PD-15V4A power input);

2.6 Support for built-in power/battery (5-12V input)

3.0 Add power indicator light and PD voltage detection indicator light

Screen interface types: eDP HRB1, eDP HRB2, eDP HRB3 (40PIN 41anes EDP)

PCBA size: 60x28x5.5mm

LCD resolution: MAX: 3840x2160@144HZ / 2560X1600@240HZ / 2560X1440@240HZ / 1080P@480HZ

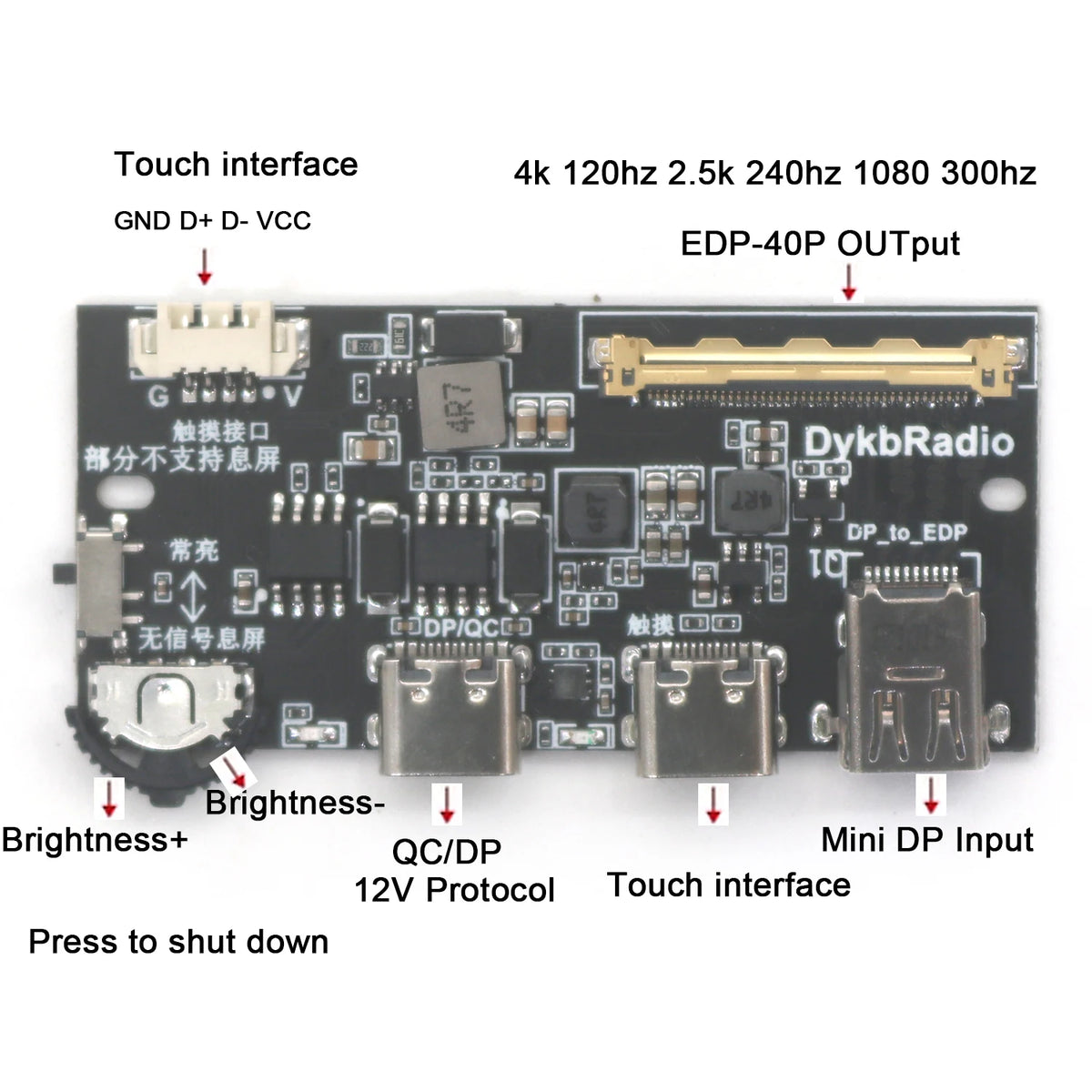

External input interfaces: MiniDP, Typec1 (PD), Typec2 (TP)
