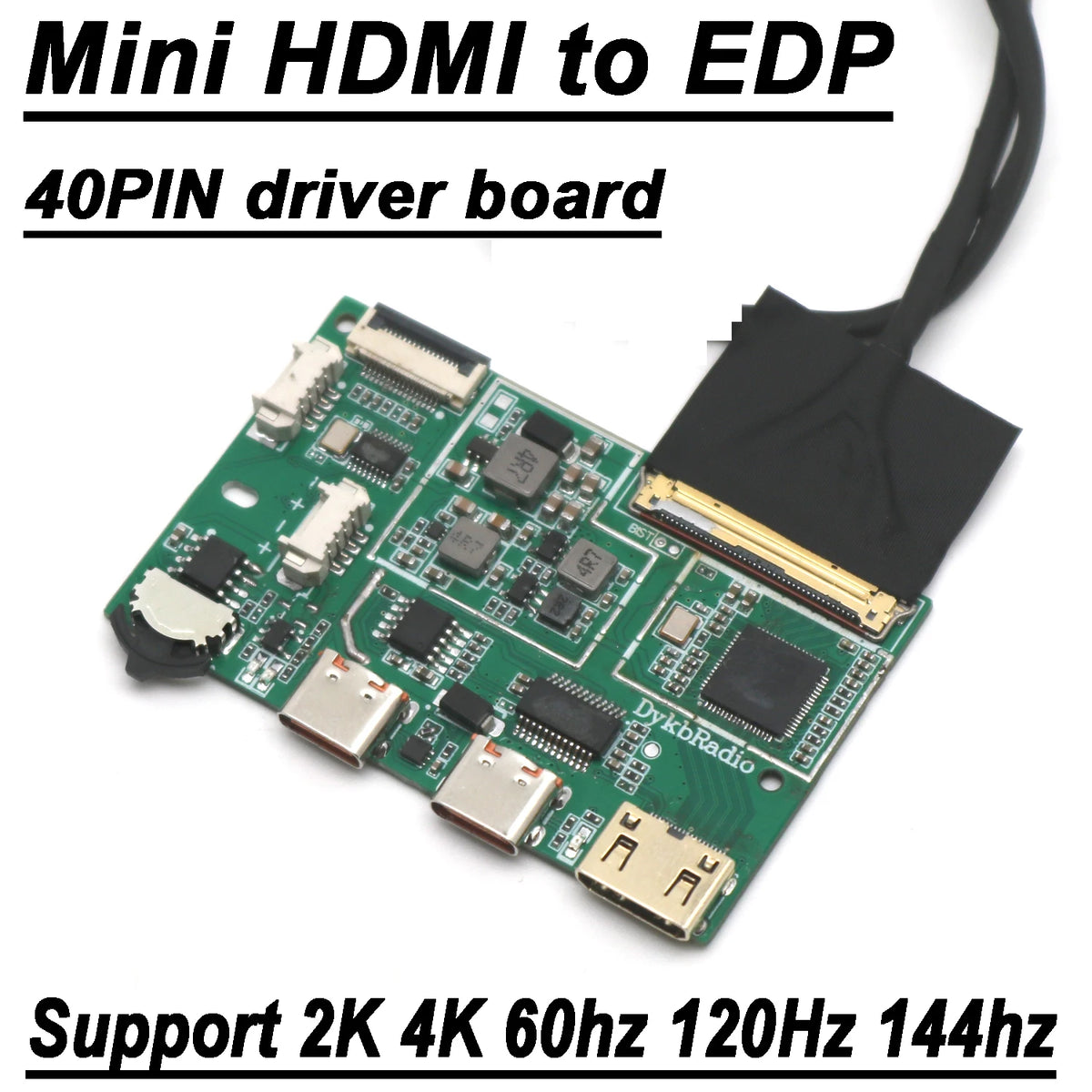

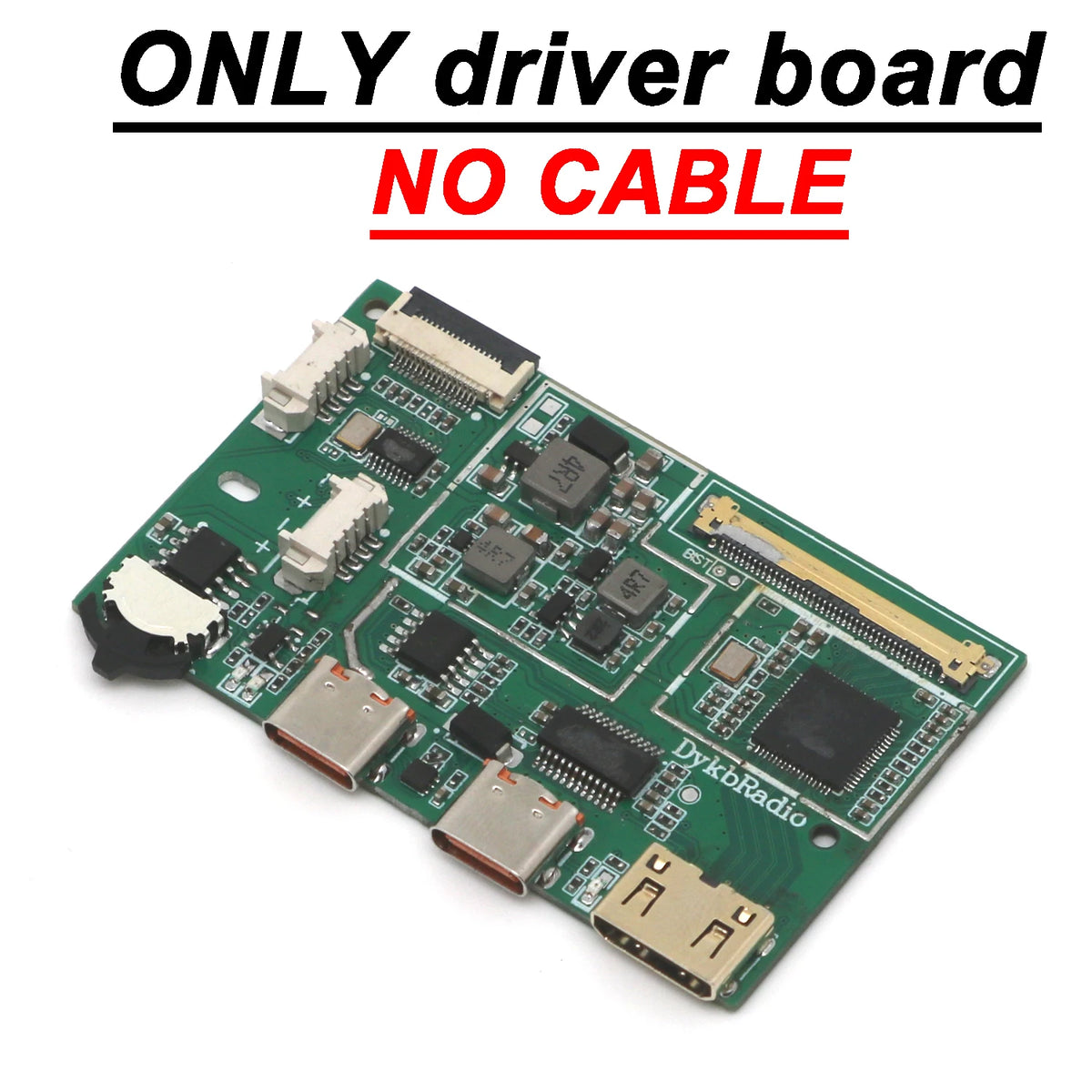

2K 4K HDMI To EDP Driver Board 40PIN EDP Signal LCD Display Screen Adapter Portable LCD Display Projection 4LAN 60hz 120Hz 144hz

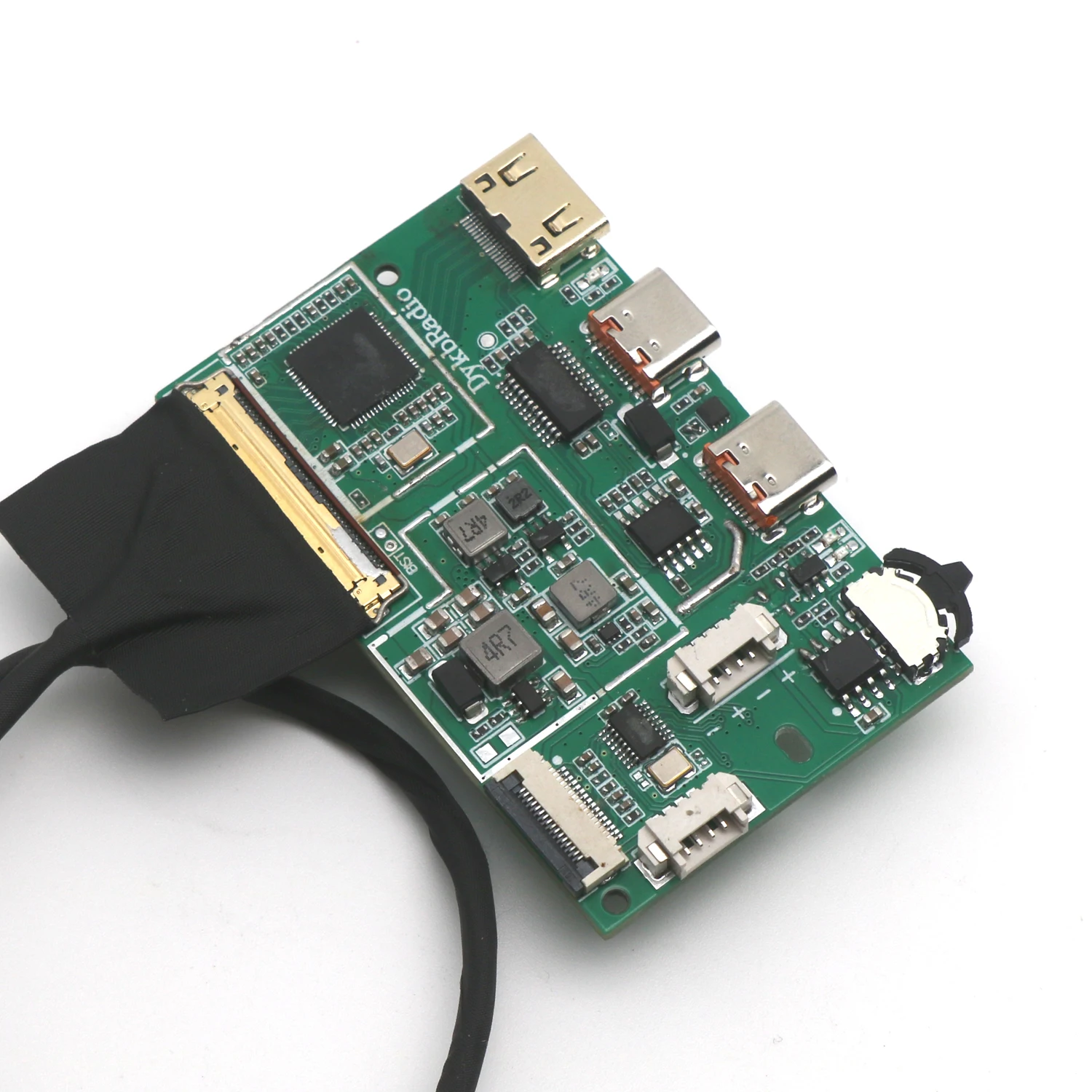

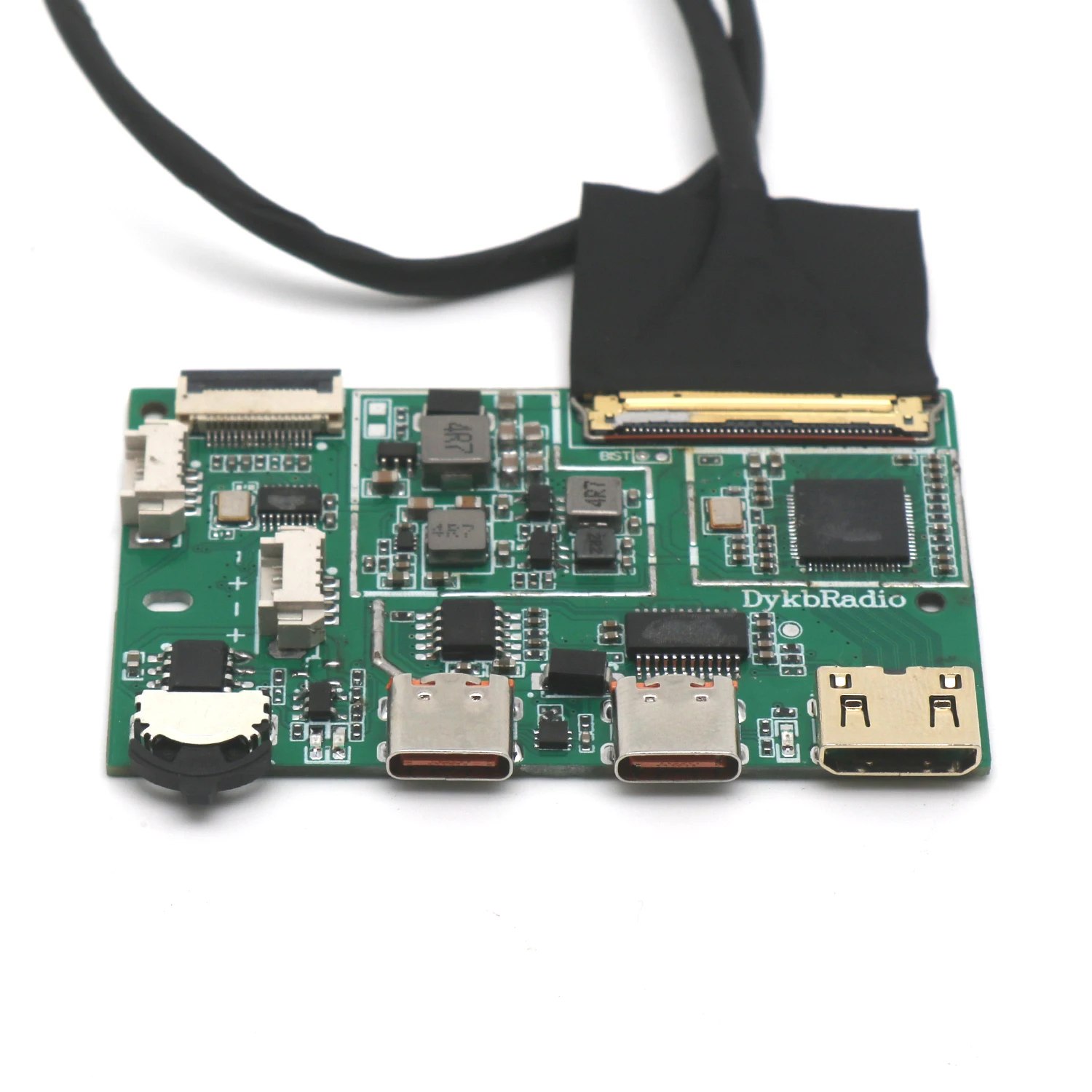

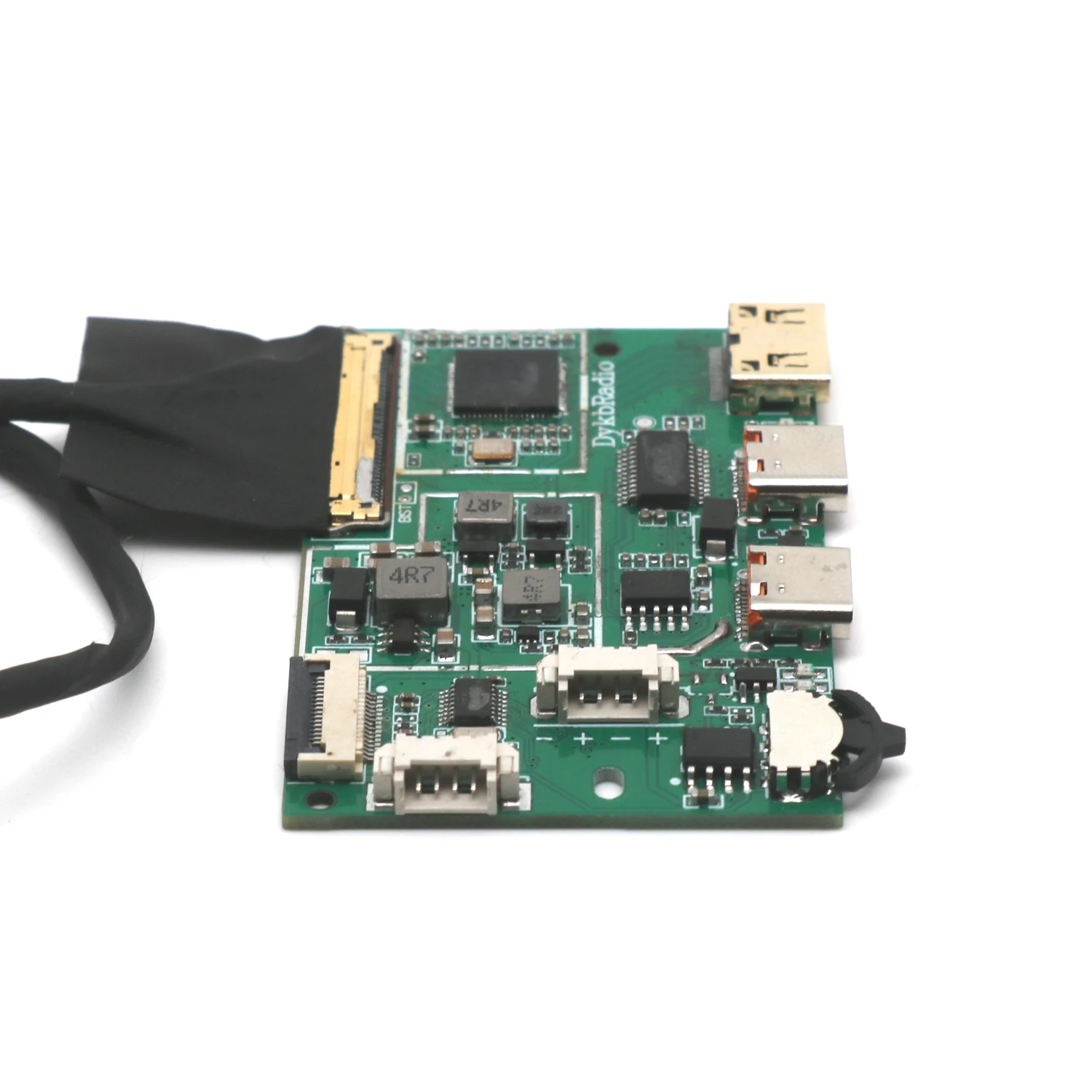

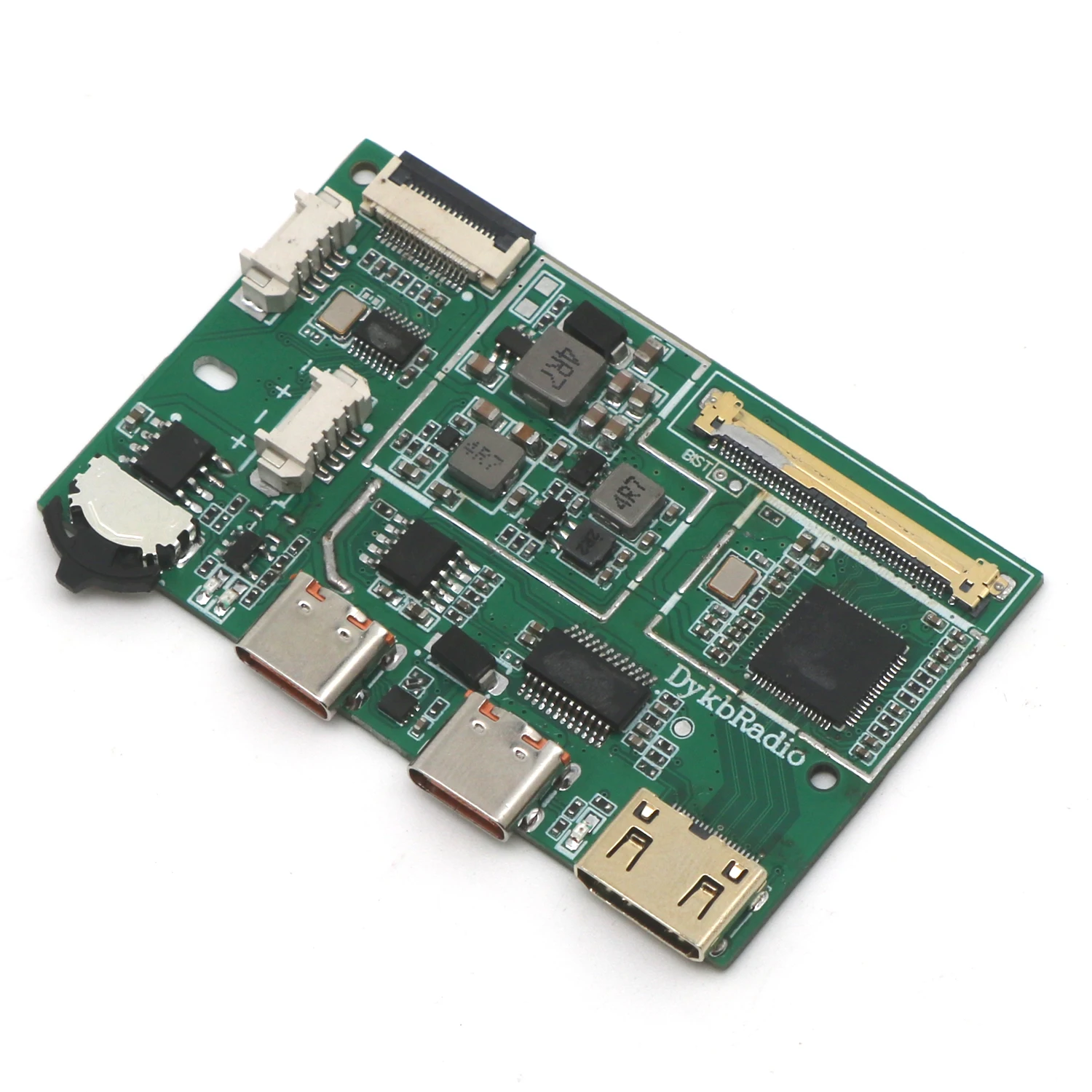

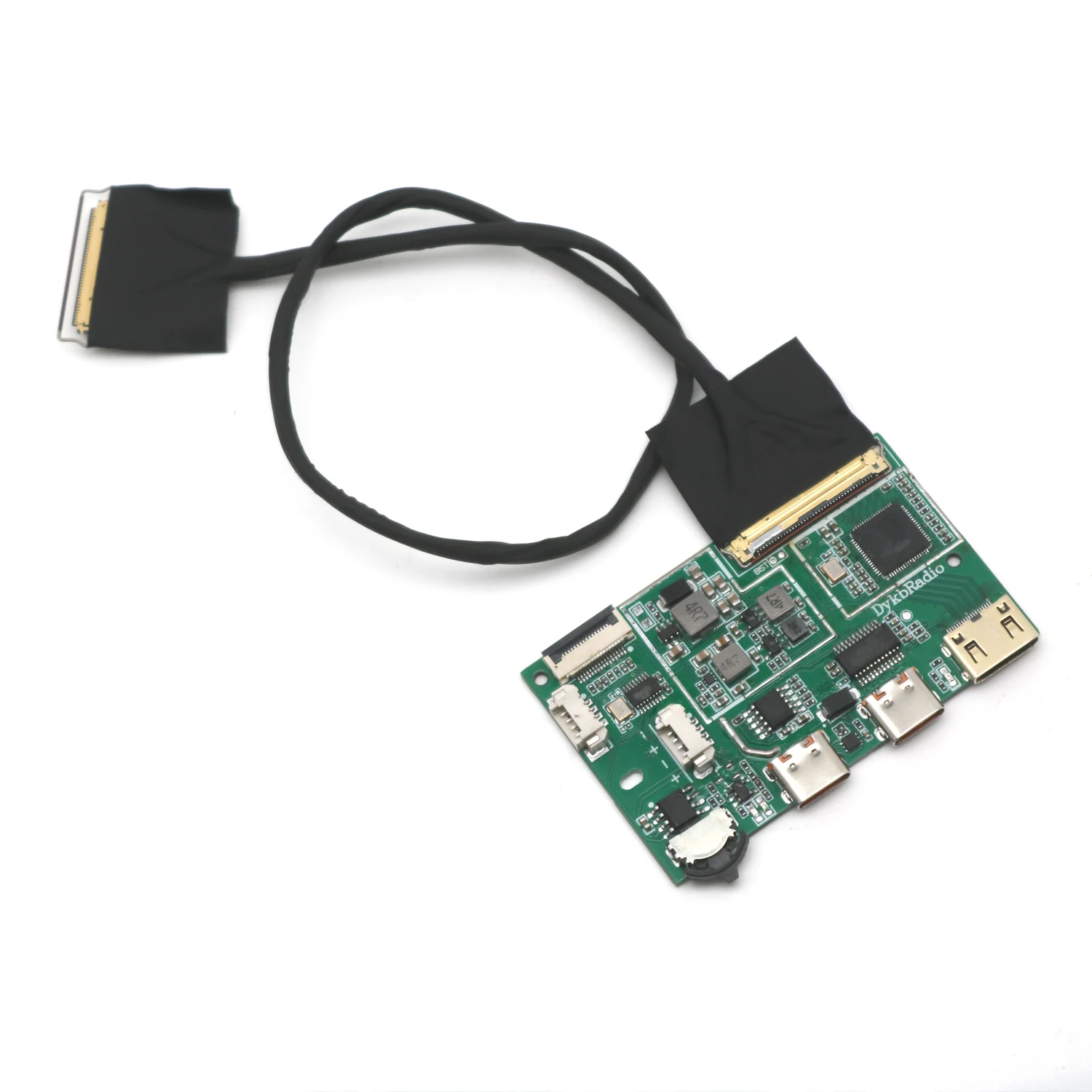

mini HDMI to EDP driver board

Size : 61.82x38.5mm

Product specification

A function description:

1. In the initial state of the product, insert the power supply cable and start the product. The default backlight brightness is 50% (< 1S) when the product starts.

2. The device does not support hot swappable. When removing the HDMI socket, disconnect the Type-c power supply. Do not remove or plug the EDP cable while the device is live, which may damage the screen. Power off first, remove all ports, and finally unplug the EDP cable.

3.EDP40 coaxial signal output.MINI_HDMI port supports1920*1080/120HZ,1920*1200/144HZ, 2560*1440/120HZ, 2560*1600/120HZ, 3200*1800/48HZ, 3840*2160/60HZ, 3840*2400/60HZ compatible with 16:9/16:10 regular resolution,support 360XBOX, PS5 (need to use 1920*1080 screen), do not support 4:3 ratio screen or other unconventional resolution screen, Does not support the scaling function (the main device input is 1080 resolution can only use 1080 resolution screen, input 4K signal can only use 4K screen, and so on). If the host supports multiple resolutions, the resolutions listed above are supported.

Two performance parameters:

Operating voltage 5V/PD15V protocol. Compatible with QC protocol. Automatic identification of charger fast charge protocol features. Support 60W PD protocol power charger; Current 2~5A. (Only a TYPE-C TO TYPE-C charging cable can support the PD protocol.USB-A to TYPE-c only supports the 12V protocol.)

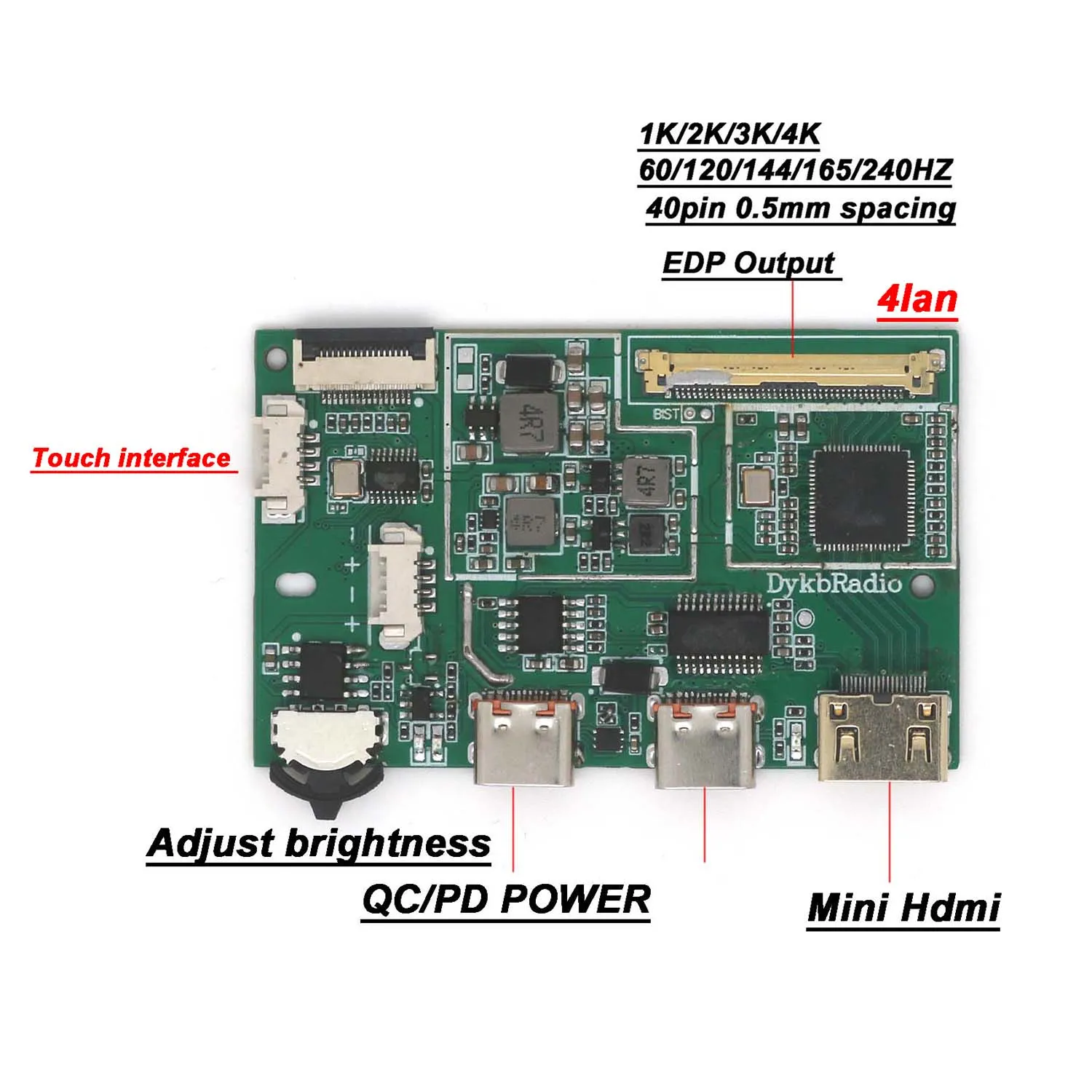

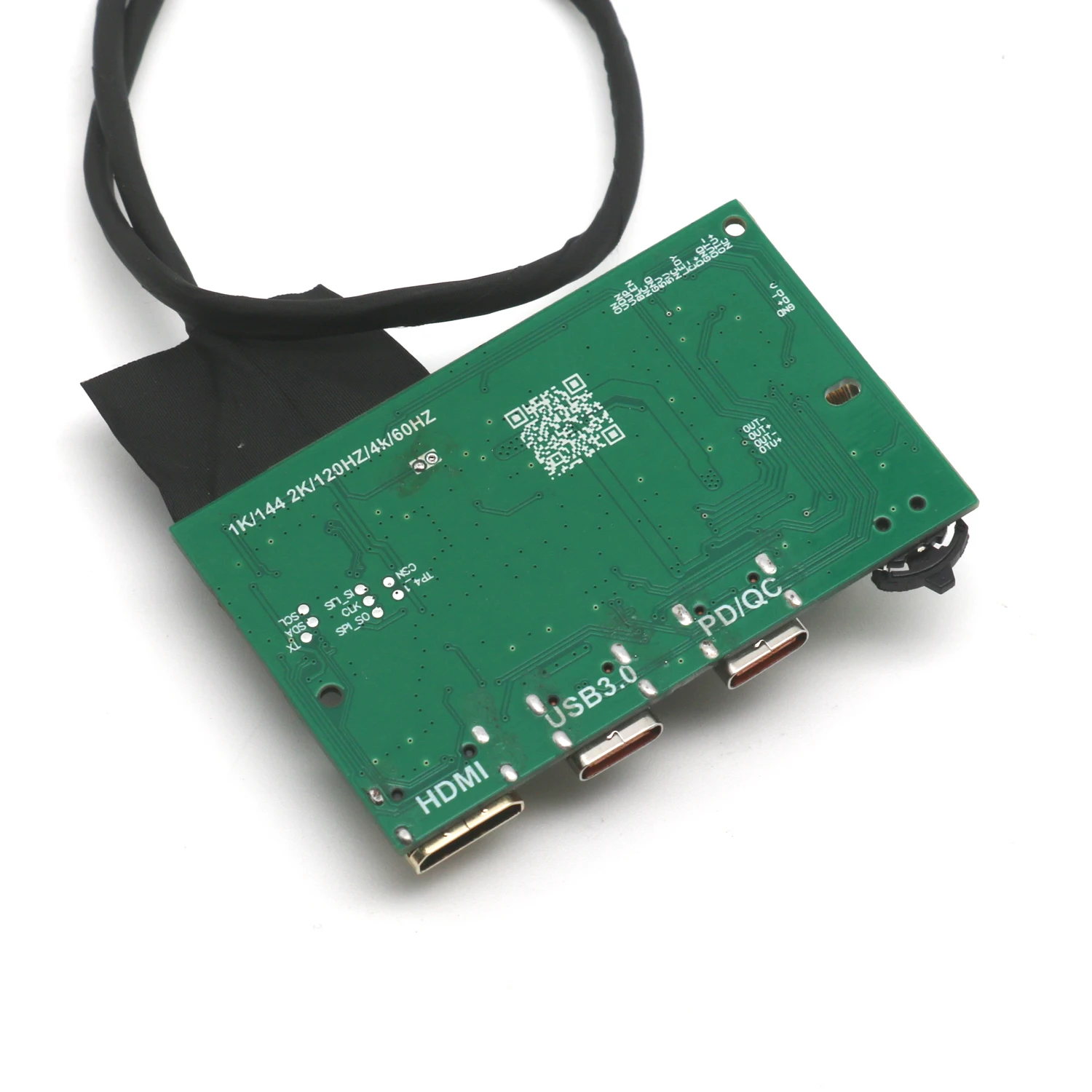

TYPE-C is the power input, supports PD protocol, DP/QC, EDP40 is the signal output, (40PIN is 4LAN), the backlight voltage is 15V by default, and the drive logic voltage is 3.3V.

Keystrokes: 50,000 times.

Operating temperature: -40-85℃

Dimming frequency 1KHZ. (non-polar dimming 8%-100% brightness) Adjust the minimum brightness to the maximum brightness for 3 seconds after downtuning

DMI does not support audio transmission so the USB expansion port must be plugged into the computer to use audio.

Support key control brightness and switch (SW1 dial switch)

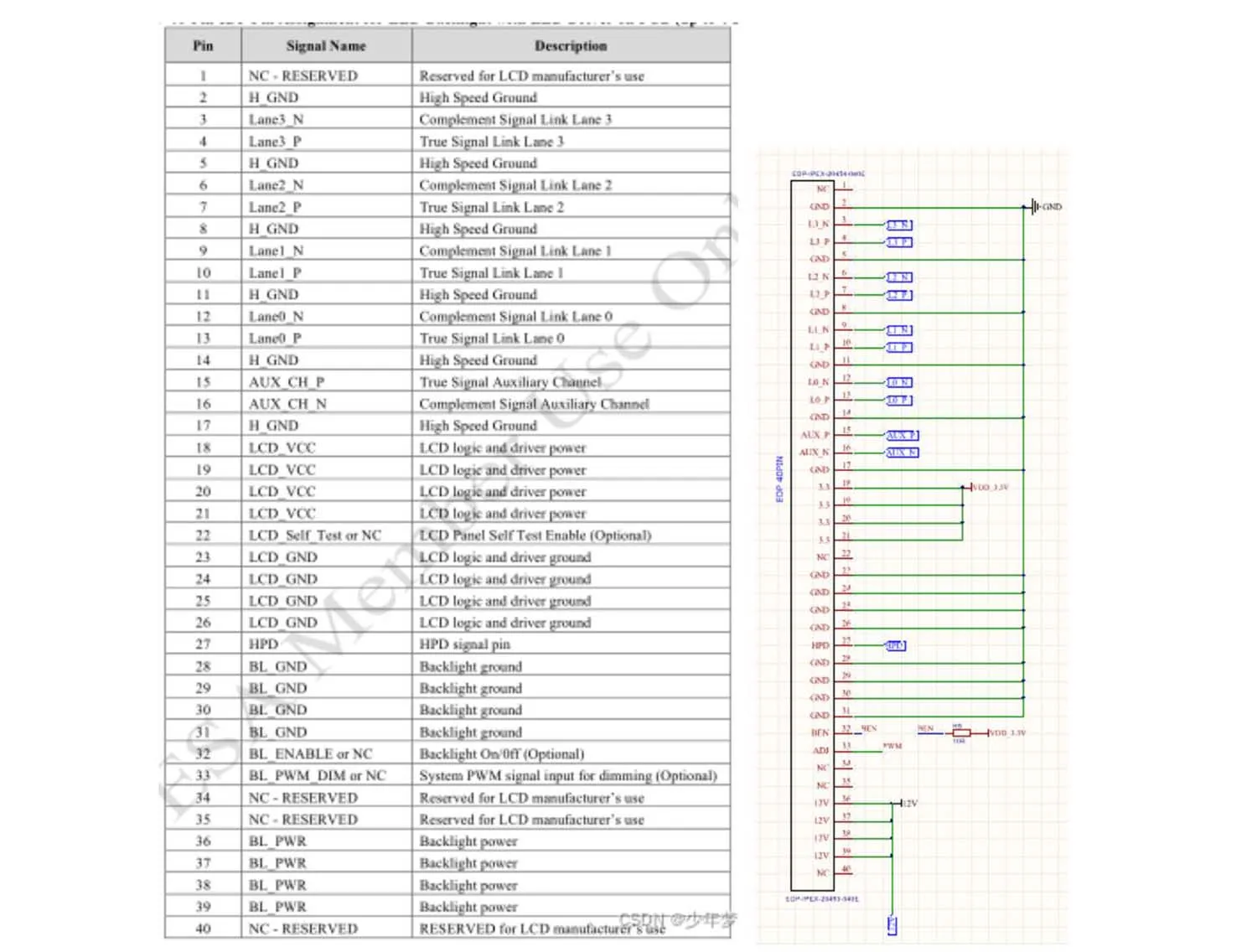

DP port description definition

EDP40 is a coaxial gold-plated port, when the screen resolution is greater than 2.5K, you must use a coaxial shielded "same direction" screen line.
