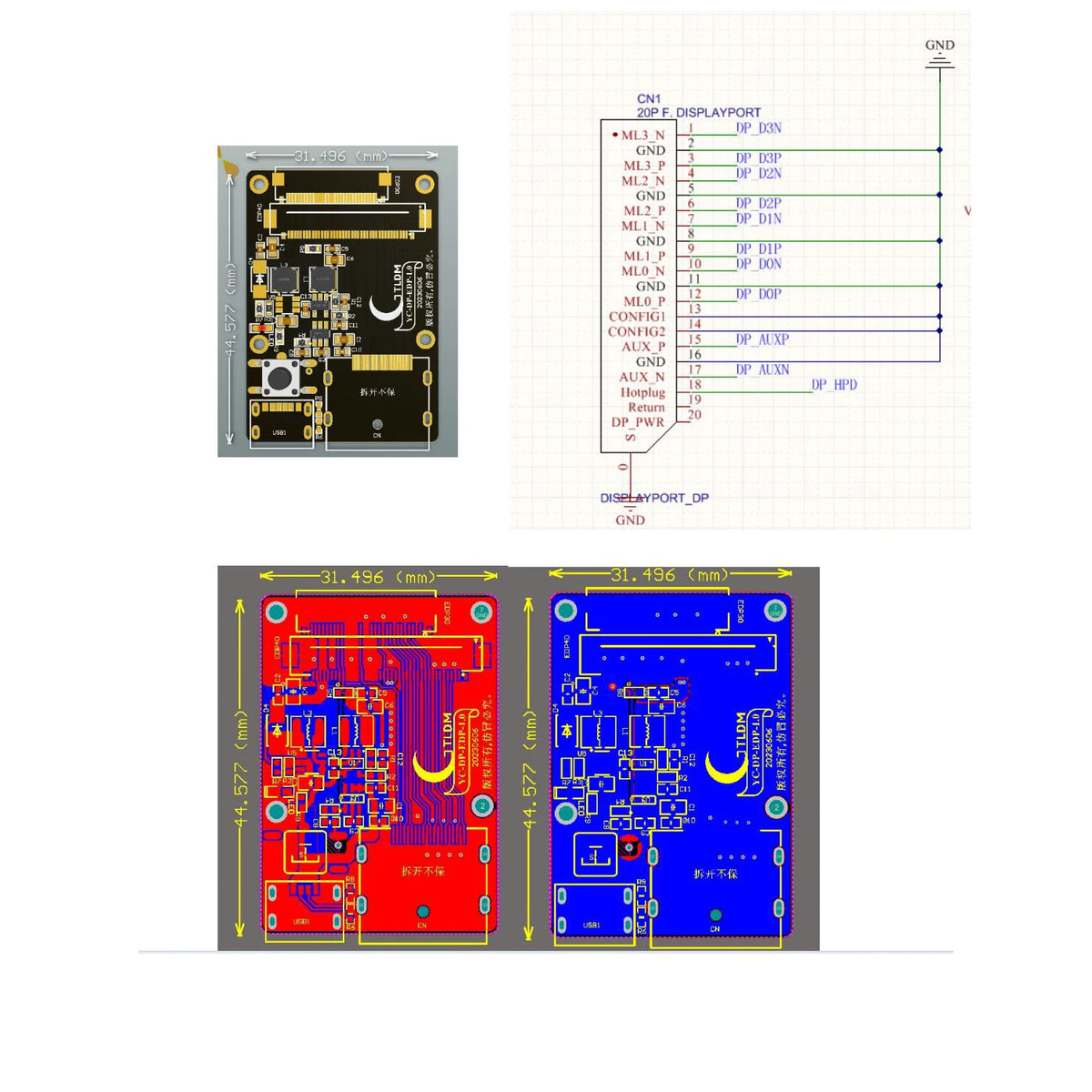

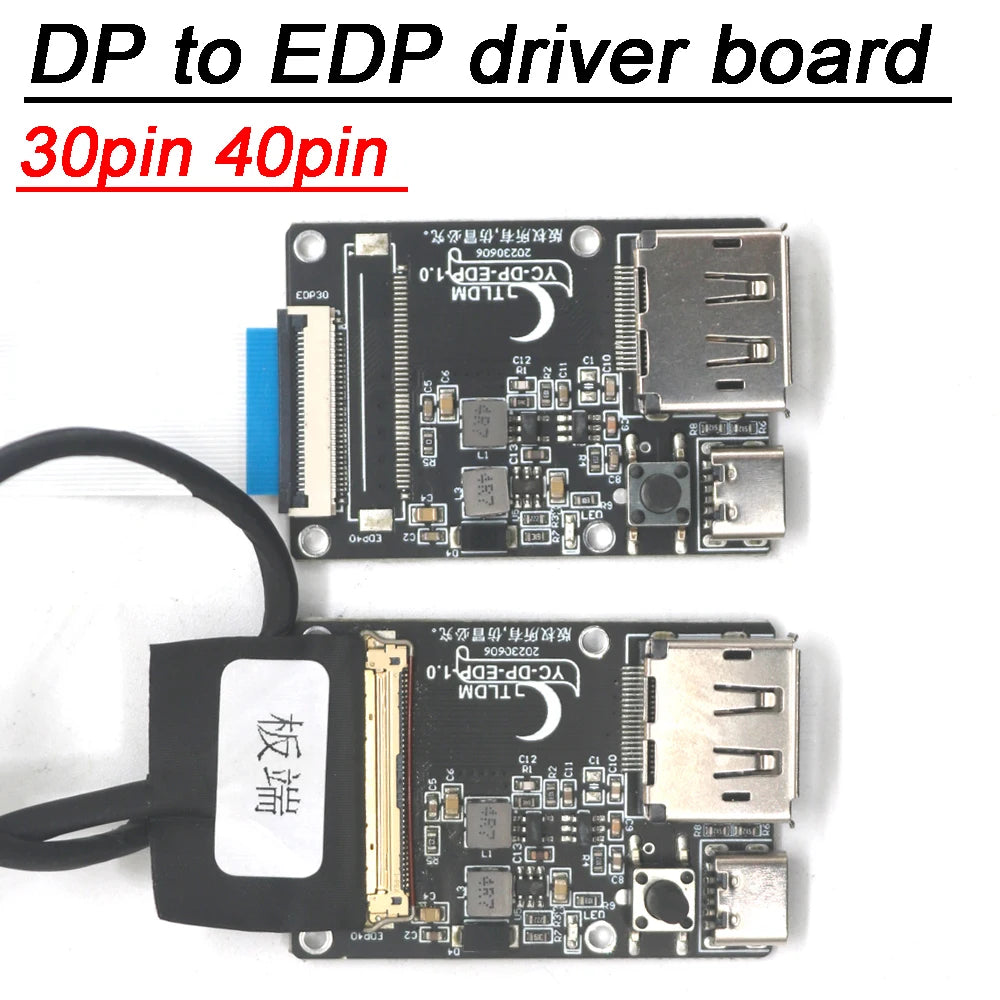

30P 40P DP To EDP Driver Board EDP Signal Adapter Board EDP Cable 4k 8K For 30pin 40pin 2lan 4lan Computer PC LCD Display Screen

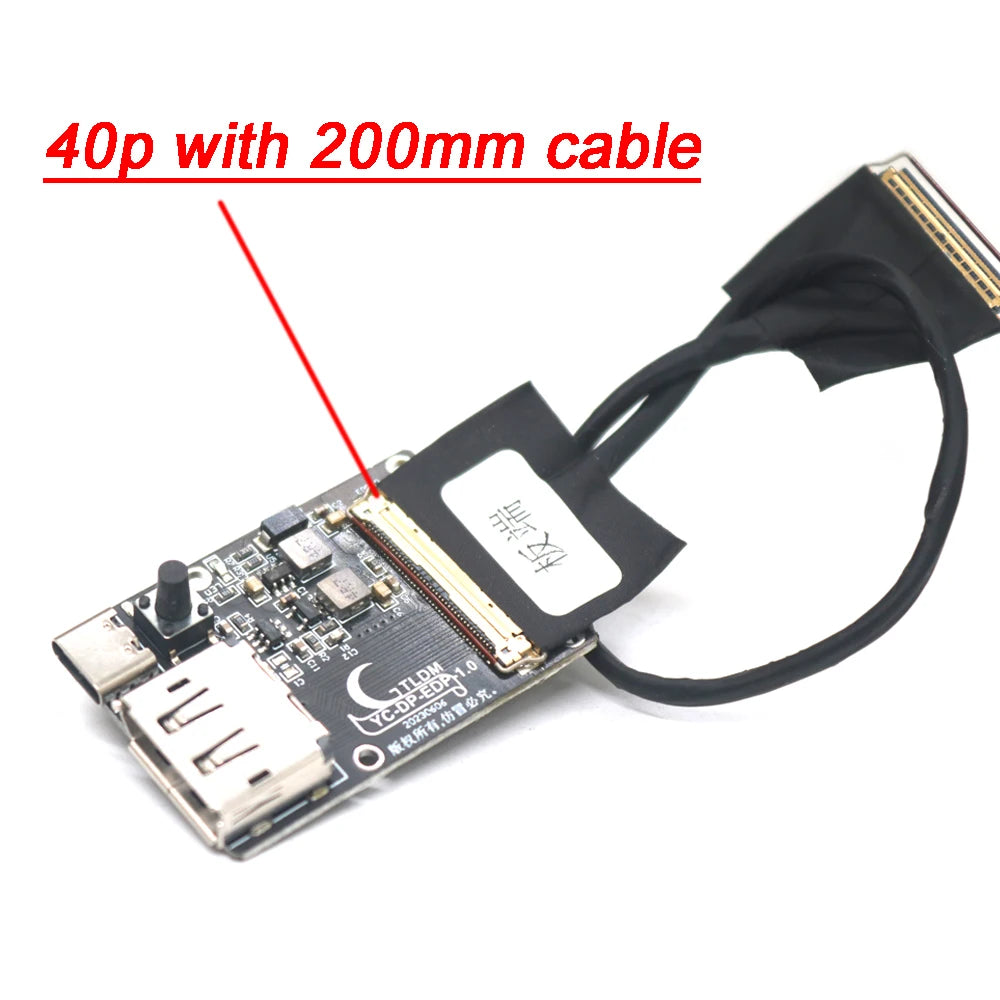

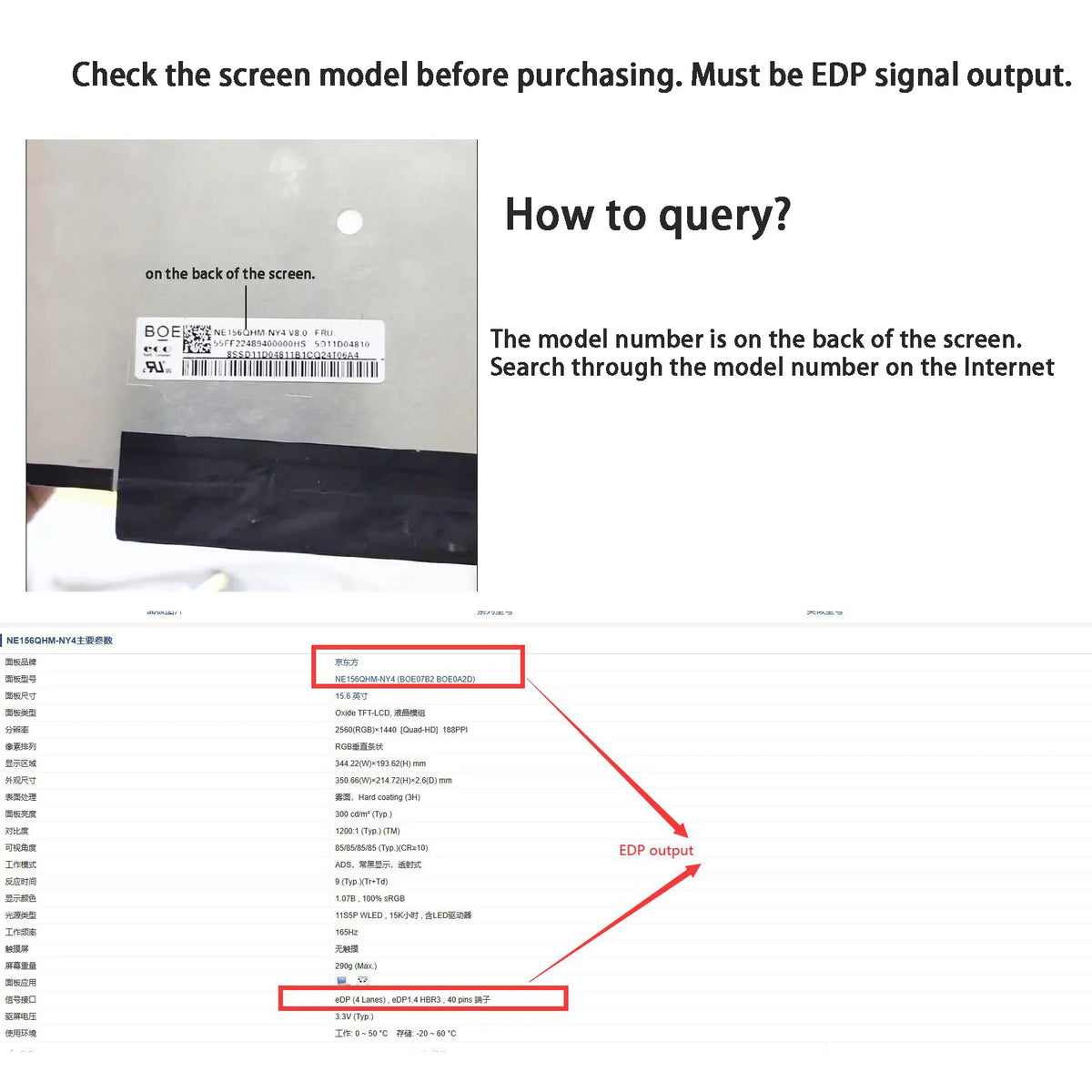

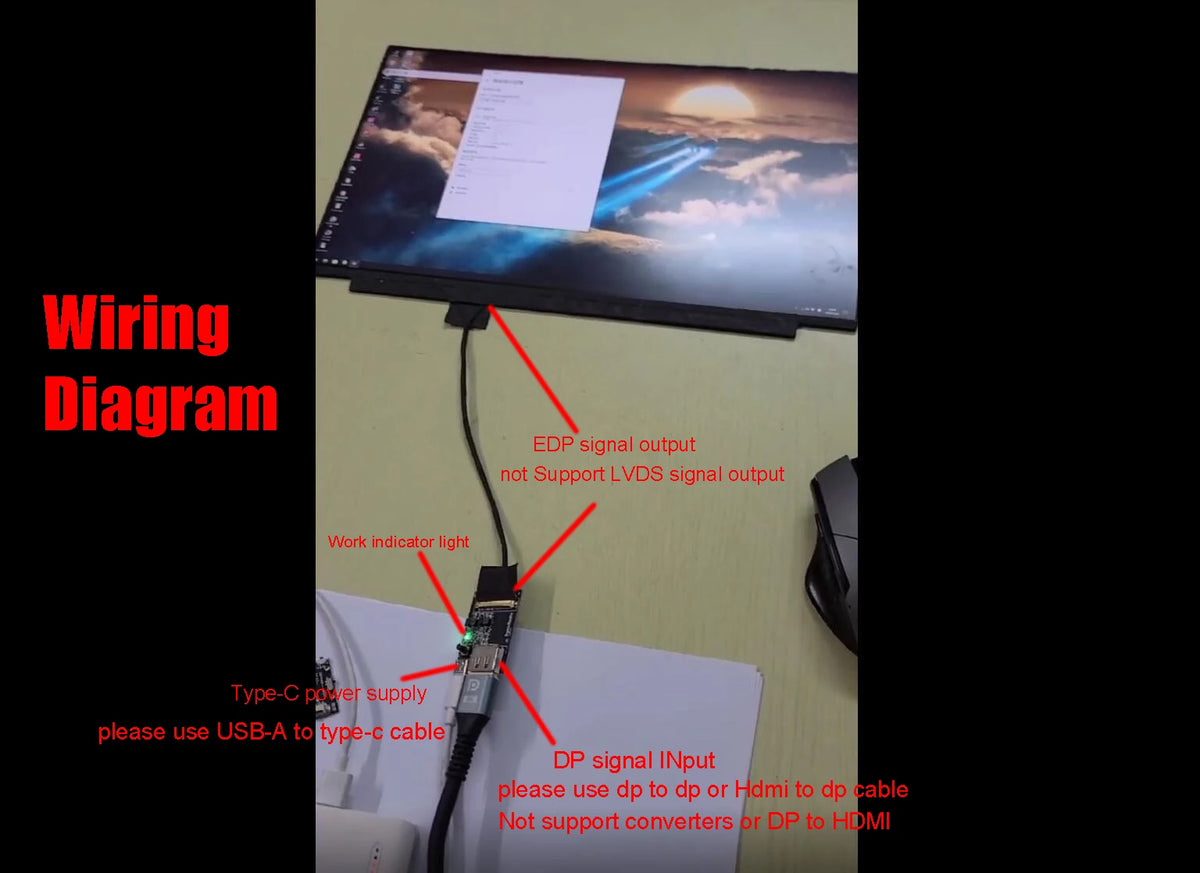

Before purchasing, please check the display screen output signal before making a purchaseOnly Support EDP signal output

LVDS is not Support

TYPE-C power cable use USB-A TO Typc-c

DP interface: DP to dp cable or HDMI to dp cable. Cannot work on converting header from dp to HDMI cable

Attention:

1.If the blue indicator light is working Prove that the driver board is working

2.If the screen does not light up, it proves that the model of the screen is not supported or you can Uninstall the graphics driver. Reinstall it. Then reboot your computer try

3.interface of the screen is EDP, not compatible with Nvidia graphics cards. Most AMD graphics cards support it.

4.Some graphics card drivers need to be updated

5.Not supported (converter head).Not supported (converter head).Not supported (converter head).Not supported (converter head).Not supported (converter head)

one ： Function description:

1.The initial state of the product is shutdown. The switch is achieved by short pressing. When the power signal is turned on, pressing the switch (<1s) indicates startup. Pressing it again indicates shutdown. The
initial brightness of the startup backlight is 90%.

2. It is prohibited to plug and unplug EDP cables with power. There is a possibility of damaging the screen. If you want to unplug the cables, you must first turn off the power in order. All ports must be unplugged before unplugging the EDP cables.

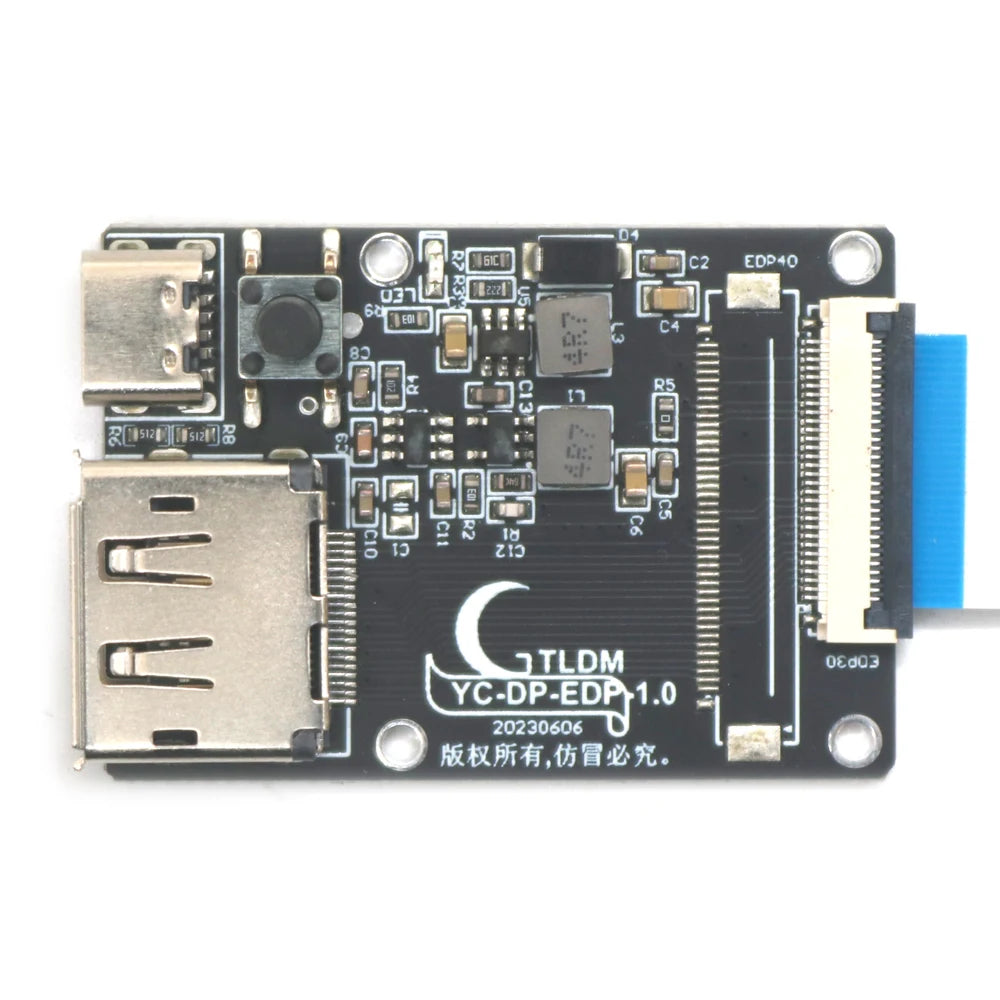

3. P29 is EDP30/40

two ： performance parameters:

Working voltage 4.2-5V; 2-3A.

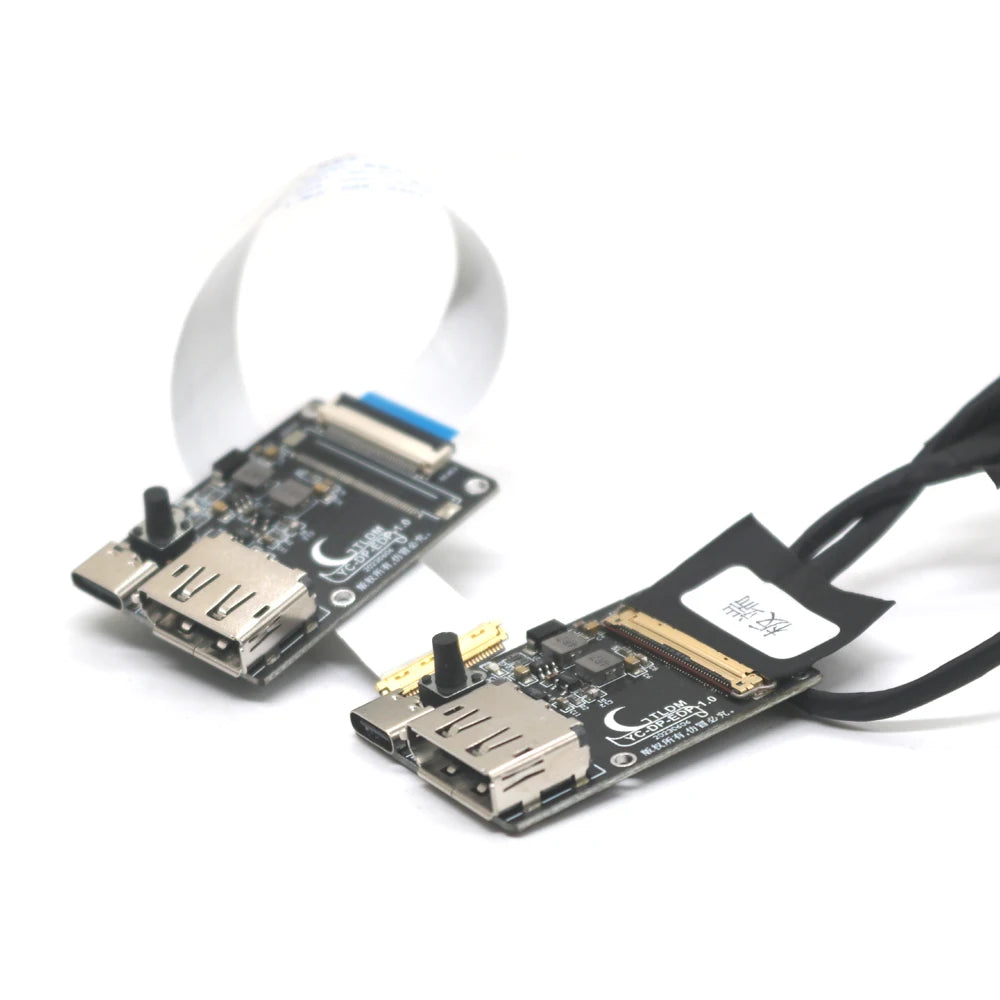

TYPE-C
is the power input, DP is the signal input, EDP30/40 is the signal
output, (30PIN for 2LAN, 40PIN for 4LAN) can drive a 15W EDP screen,
with a backlight voltage of 12V and a driving voltage of 3.3V.

Button count: 50000 times.

Working temperature: -40-85 ℃

Dimming frequency 20KHZ.

EDP30-2lan supports a maximum resolution of 2560 * 1440,

EDP40-4lan supports resolutions of 1920 * 1080 300HZ 2560 * 1440 240HZ 3840 * 2160 120Hz, downward compatible

N-card compatible screen

B156ZAN05.1 (4k 120Hz); 1080p 300Hz screen

1080p 240Hz

Ne173qhm ny2

MNF601EA1-1

Ne156qhm_ Ny2

N156kme

Screen tested by card A, where x represents any number

N156KME-GNA(2K165hz) B133ZANxx. x B156ZANxx. x NE156QUMxxx LQ156M1JWxx B156HANxx. x, NV156QUM-N72 LTN156FLxx MNG007DA1-1, B156HAN08.2/0, nuclear display LQ156D1JW02, NV156FHM-N4N/K desktop T1000+nv140drm n61

Desktop 3080+b156zan05.1

Desktop Rx580+ne156qhm ny1

Desktop 3050ti+NE160QDM-NY2

Xbox (hdmi to dp)+NE160QDM-NY2 (only supports native 2k)

Notebook 3070+n161hca ga1

Notebook 3070+Ne156qhm ny1

5300g+N156KME-GNA

5600g+N156KME-GNA

B156ZAN03.2

NV156FHM-NY0

N156hra ea1

three： Sensitivity adjustment capacitor

The C9 capacitor of PCBA serves as the sensitivity adjustment capacitor input port Users can adjust the sensitivity of all touch buttons by adjusting the capacitance value of the CAP port The recommended adjustment range is 102-103 Users should try to use polyester capacitors with an accuracy of 5% when using them Increasing the capacitance will increase sensitivity Reduce anti-interference ability; Conversely, reducing capacitance will decrease sensitivity Enhance anti-interference ability. (Using 1NF by default)
