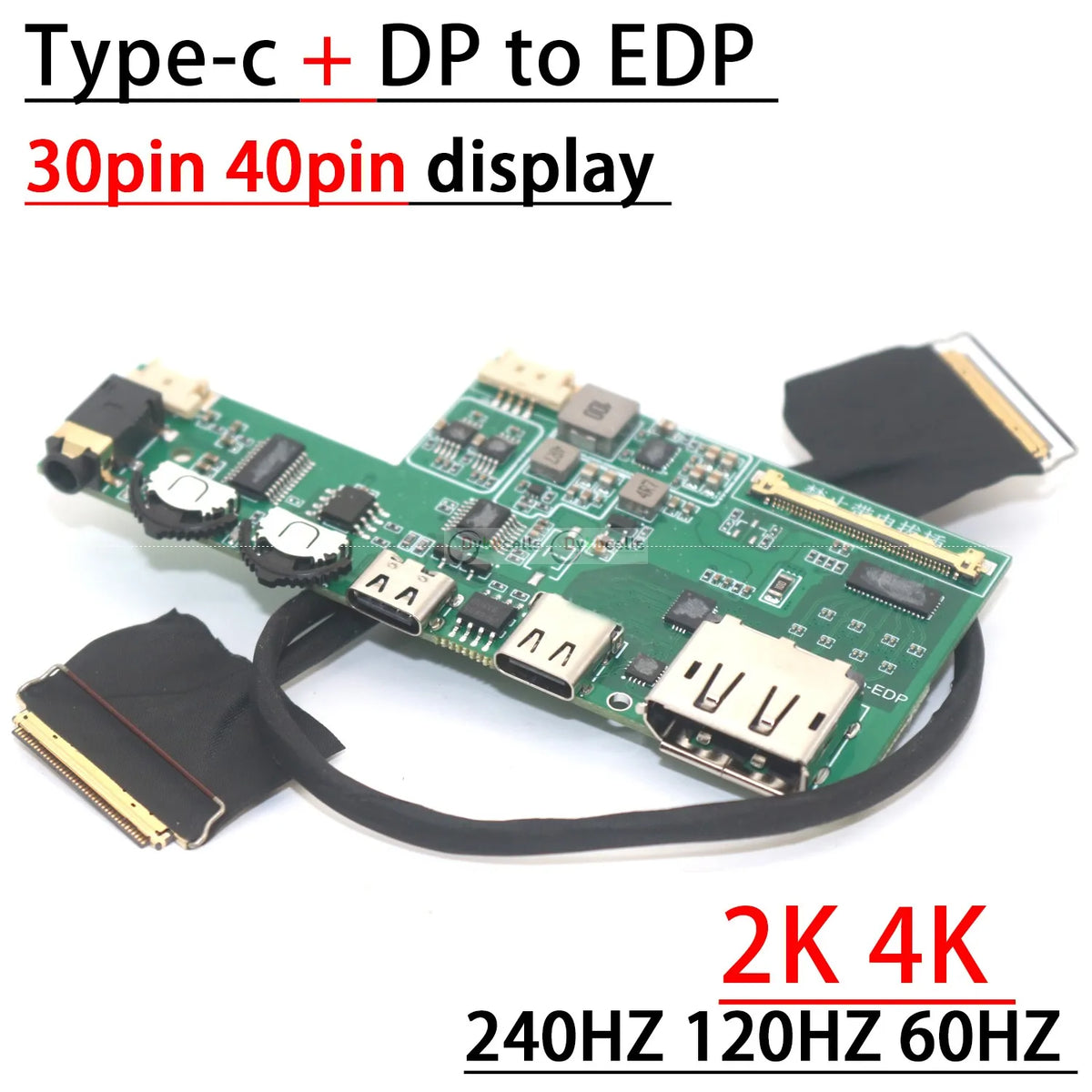

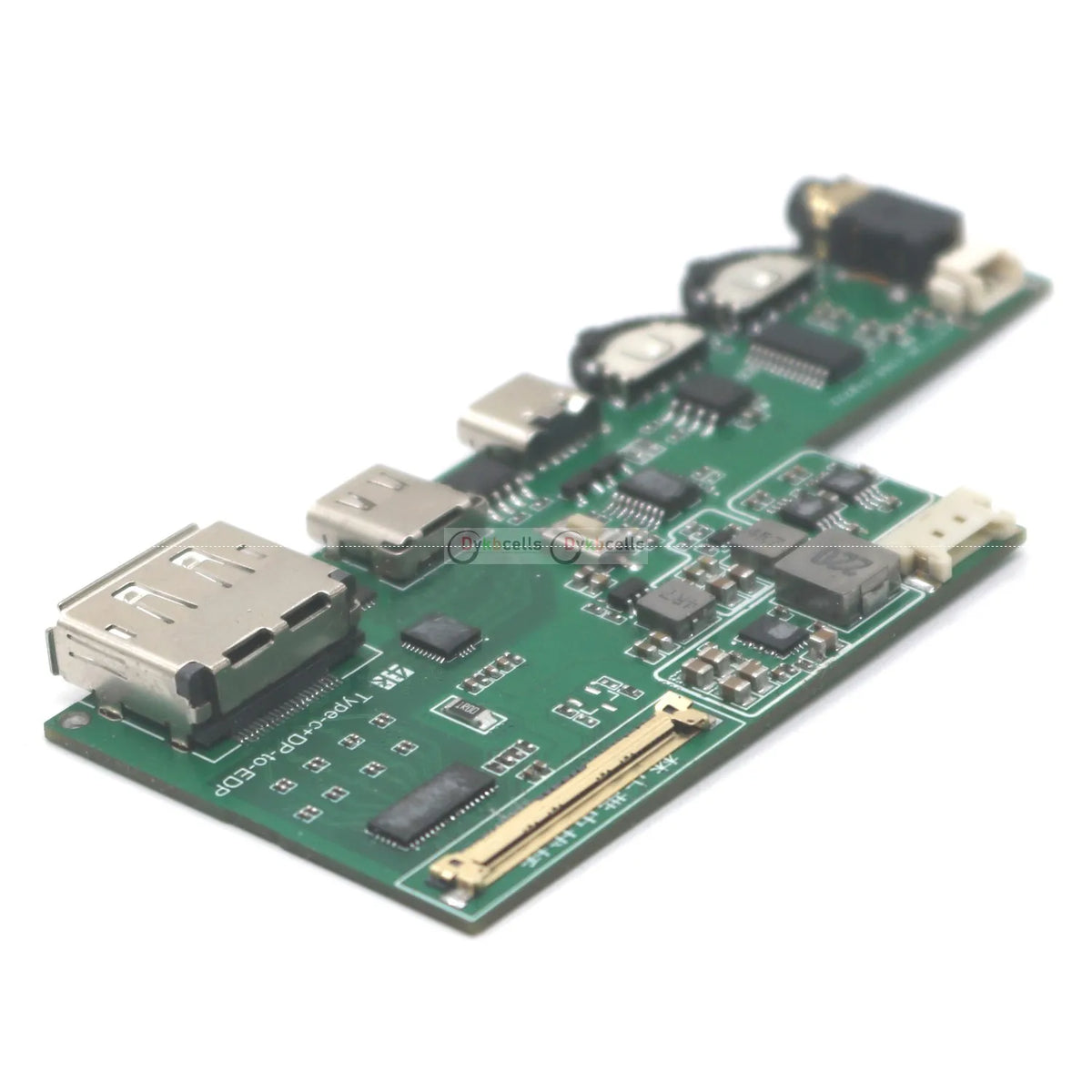

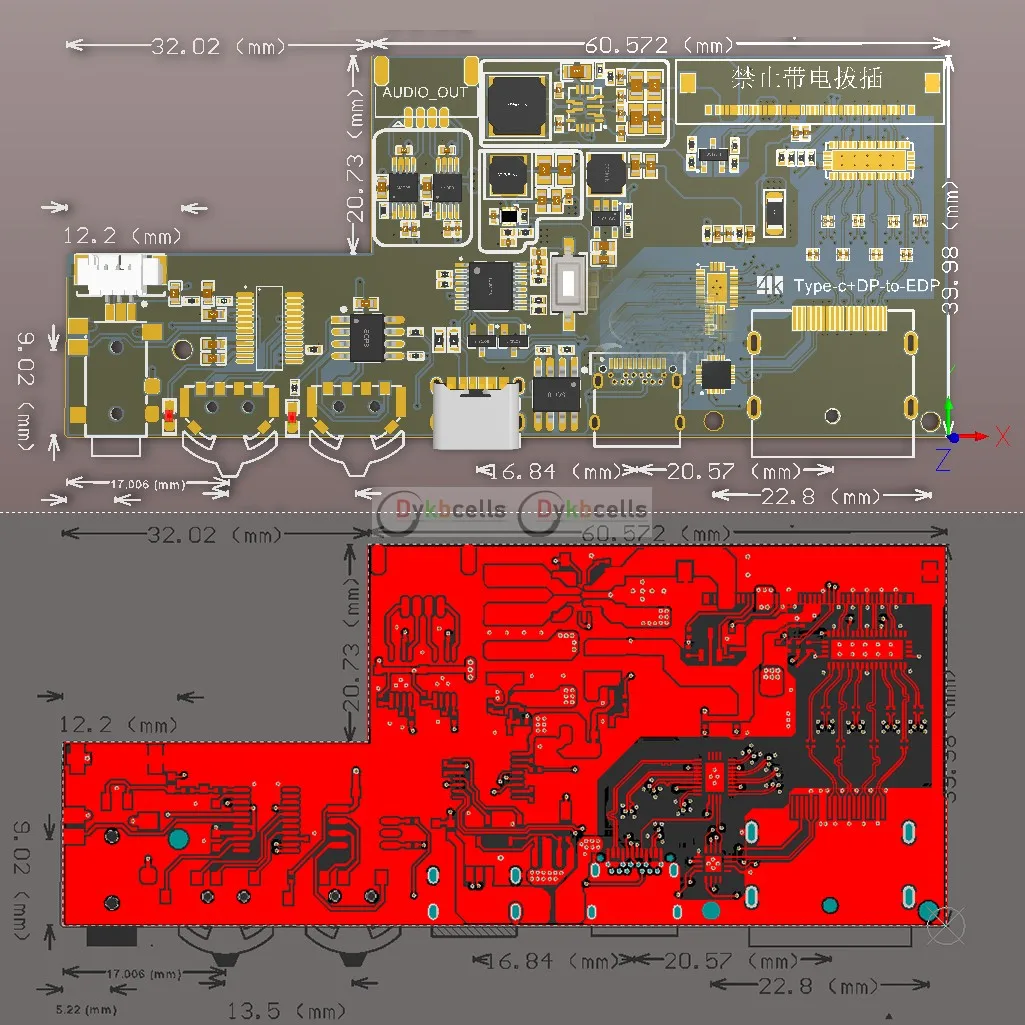

30Pin 40pin USB Type-c + DP To EDP Driver Board Signal 2K 4K 60HZ 165hz 144hz 240HZ LCD Display Screen Notebook Coaxial Cable

DP+Type-c EDP driver board Mobile phones computer LCD projection Screen Conversion 2K 165HZ 240HZ 4K 60HZ for 30pin 40pin Mobile laptop LCD display

Only Support EDP signal output

LVDS is not Support

Version selection:

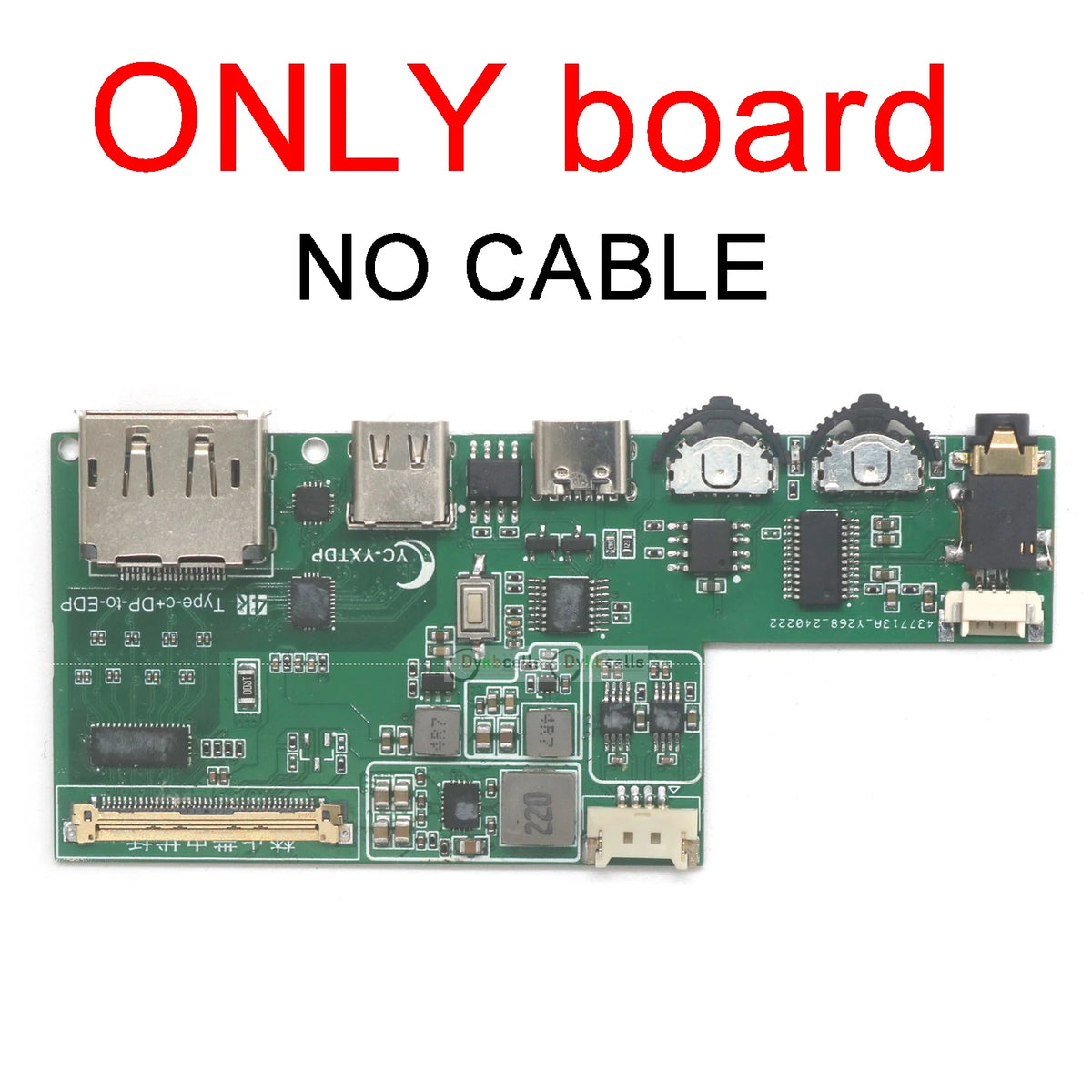

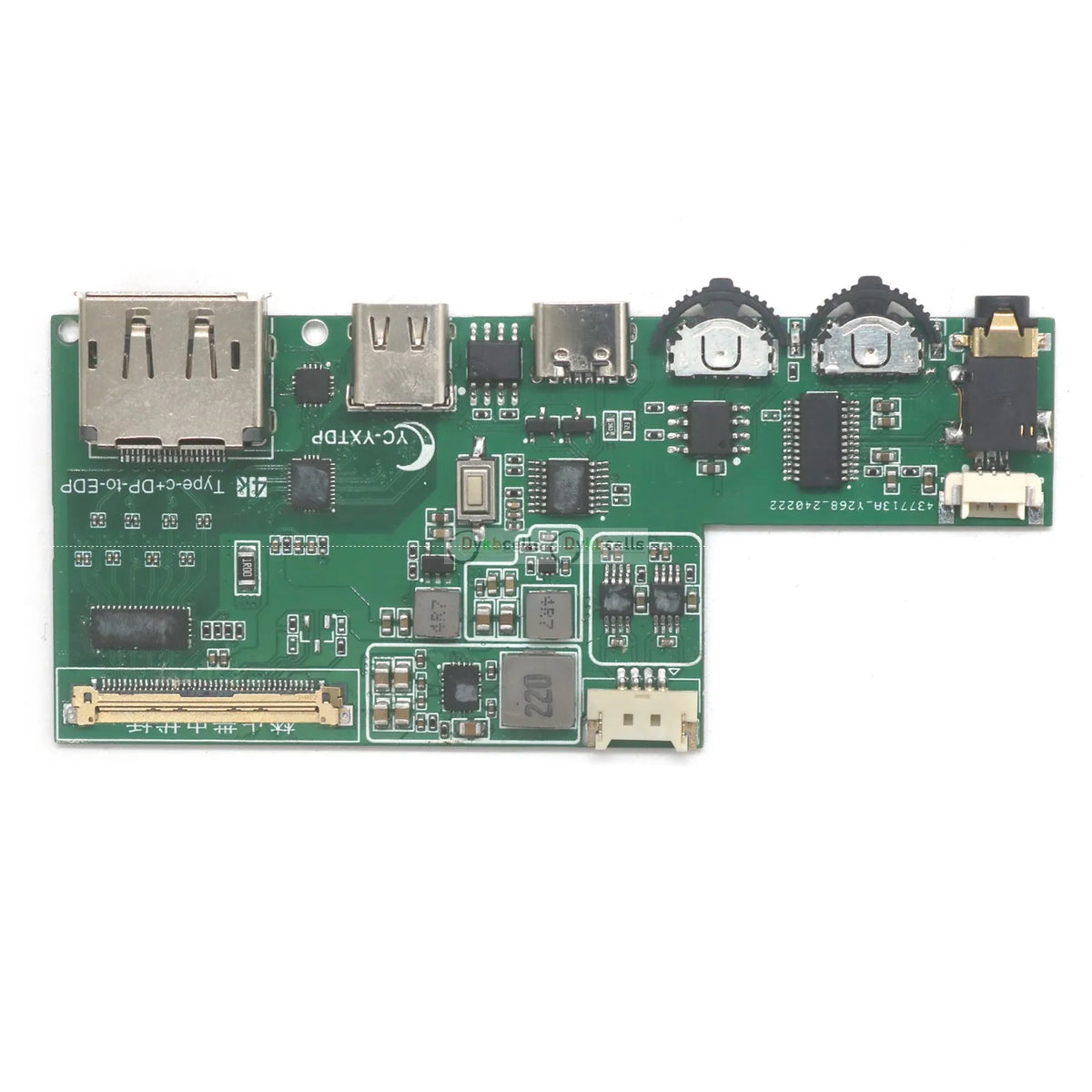

only board                    : Individual drive board  (does not include coaxial EDP cable same direction)

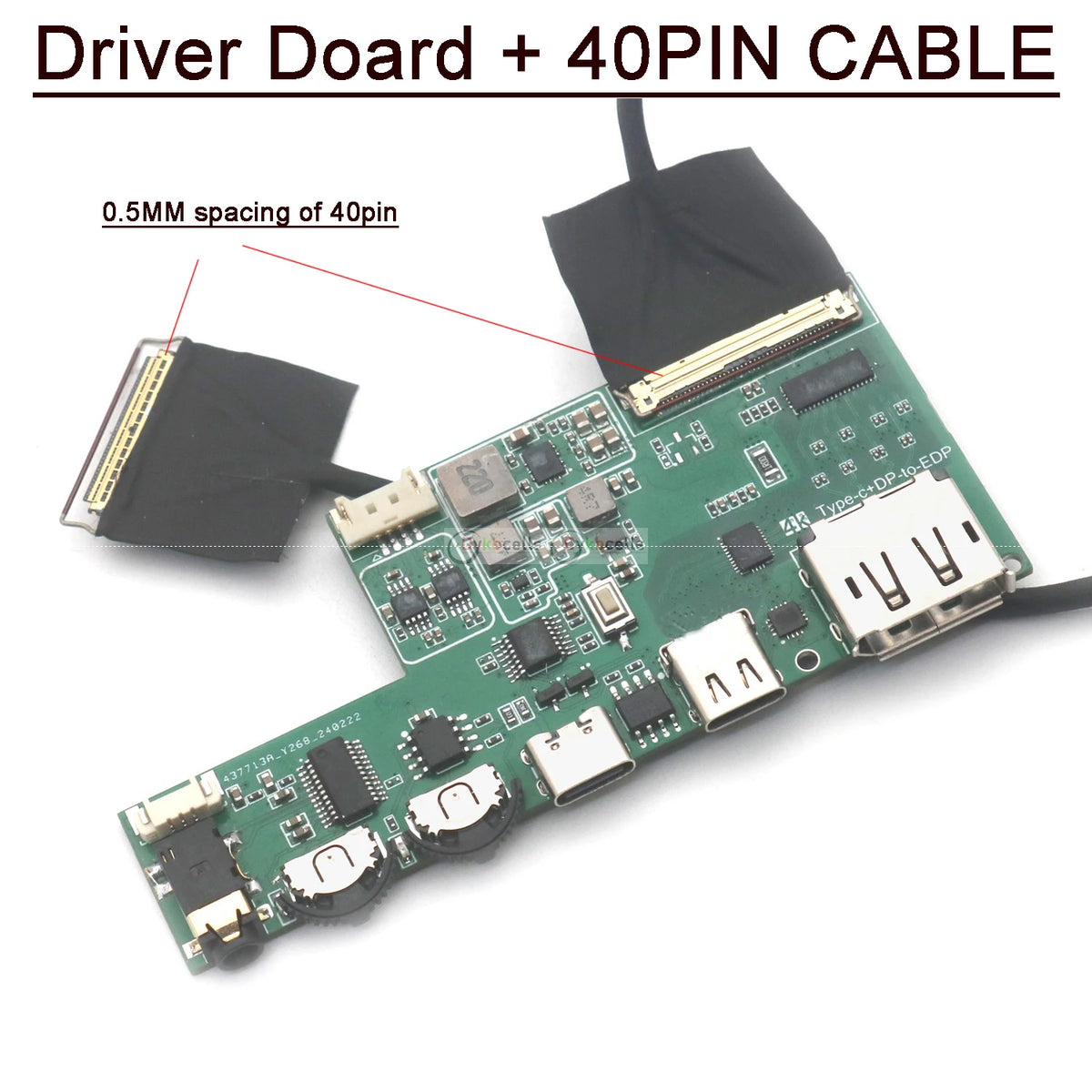

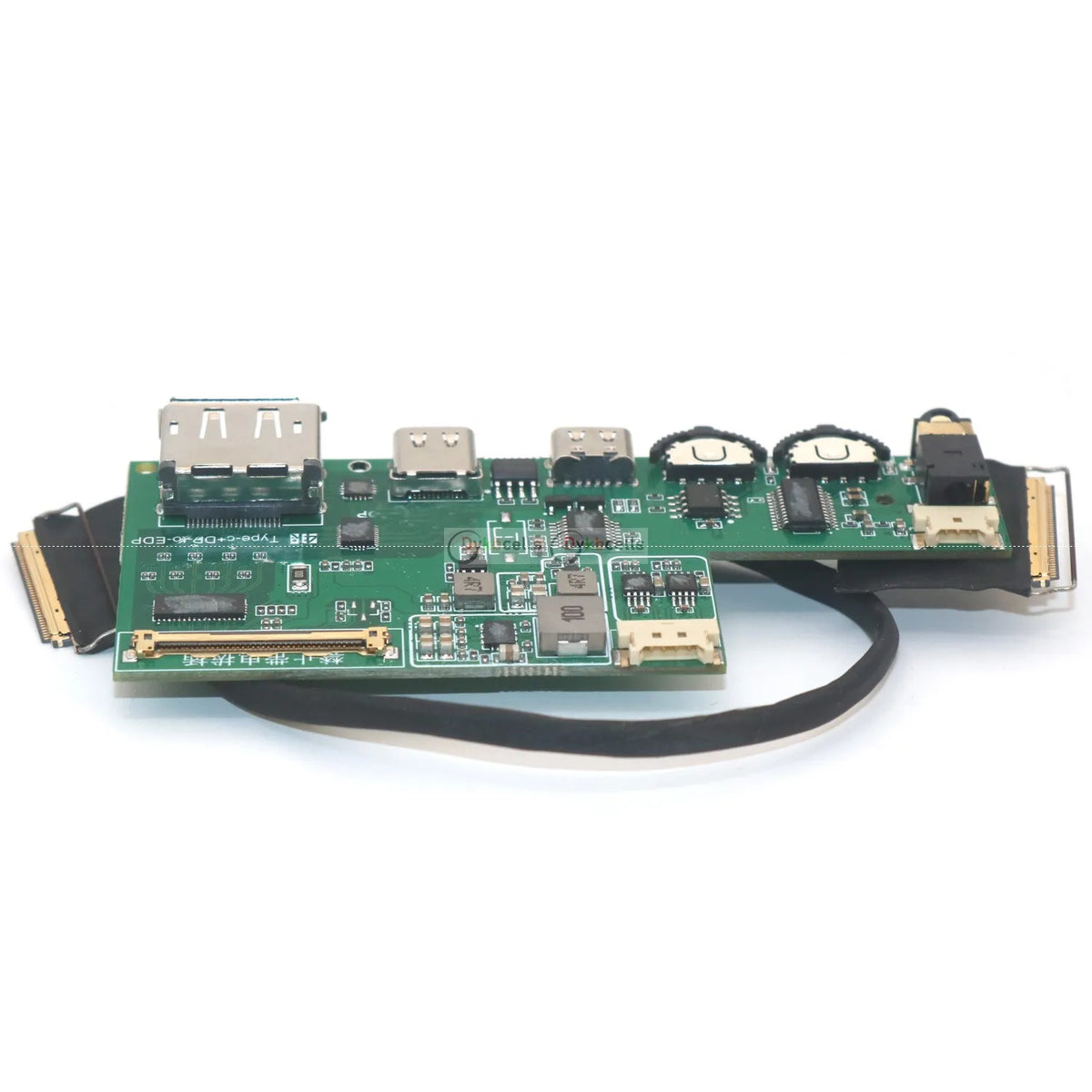

board W 40PIN CABLE : drive board + 0.5mm Spacing 40pin cable to 0.5mm Spacing 40pin cable for 40pin screen

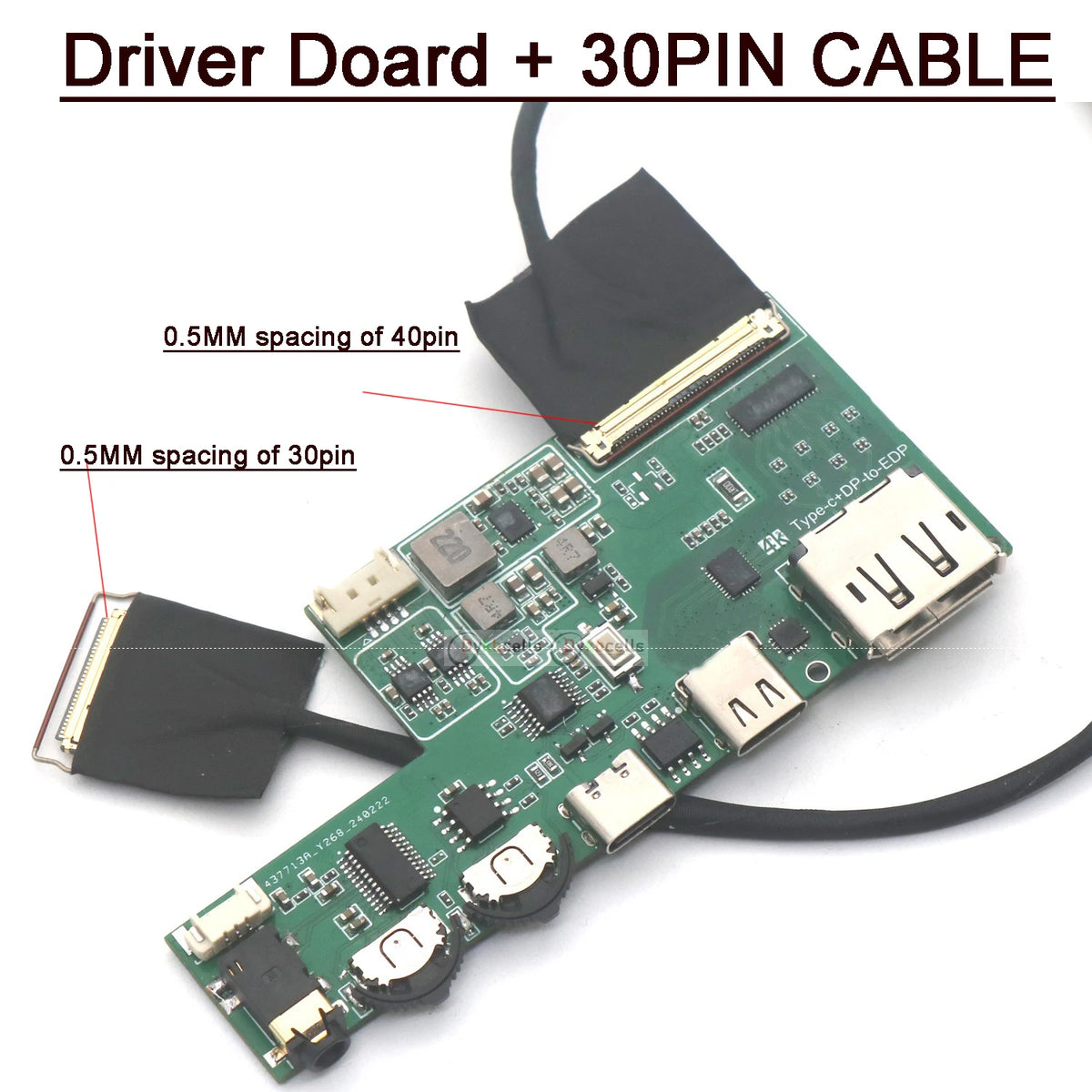

board W 30PIN CABLE : drive board + 0.5mm Spacing 40pin cable to 0.5mm Spacing 30pin cable for 30pin screen

notice :

DP and tyce can only choose one signal , and switching between them simultaneously will result in an error.

screen larger than 15W, which is 17 inches can be powered USE 12V adapter.

cable only supports coaxial cable of 0.5MM 40PIN same direction

Support standard EDP screen, 2K 165HZ 2.5K 240HZ 4K 60HZ, 17.3 inches below can work

NOT supports Industrial screens such as LVDS MIPI RGB and TL134GDXP01-00C and MNE208ZA1-3 are TV160DKT-NH0, L134GDXP04-00C, TL142GDXP01-00C

A function description:

1. In the initial state of the product, insert the data cable and start the product. The default backlight brightness is 50% (< 1S) when the product starts, and the default signal is Type-c 3.2 (Thunderbolt for short). Press again to switch back to the lightning 4 signal, the signal is one of two choices, one key switch.

2. Do not remove or insert the EDP cable while the device is live. Otherwise, the screen may be damaged. If you want to remove the cable, you must first power off in order, all ports are removed, and finally unplug the EDP cable.

3.EDP40 coaxial signal output, DP port support 4K 120HZ, downward compatible, Thunder 4 interface support 4K 60HZ, 2.5K 165HZ, downward compatible.

B : performance parameters:

1. Working voltage 5V/QC15V protocol, compatible with USB Type-C PD3.0/3.1, automatic identification of charger fast charge protocol features, support 100W QC protocol power charger; Current 2~5A.

2. TYPE-C is the power input, supports QC protocol, DP/ Thunderbolt 4 is the signal input, and EDP40 is the signal output. It can support 40P to 30P screen wire conversion (2LAN for 30PIN and 4LAN for 40PIN). The default backlight voltage is 12V, and the drive logic voltage is 3.3V.

3. keystrokes: 50,000 times.

4. Operating temperature: -40-85℃

5. dimming frequency 2KHZ. (non-polar dimming 8%-100% brightness) Adjust the minimum brightness to the maximum brightness for 5 seconds after downtuning

6. EDP30 -- 2lan (40P to 30P switching screen cable) resolution is 1920*1080, EDP40 --, -4LAN supported resolution 1920*1080 300HZ 2560*1440 240HZ 3840* 2160,120 HZ, 5120*2880 60HZ backward compatible.

7. Supports the anti-adapter for reverse power supply to the phone, reserves 15W power for the screen when charging, and supports QC15V protocol fast charging.

8. Support 3.5MM headphone interface, and 2W speaker interface, such as DP as signal source, because the audio line is lightning 4 interface, so you must plug in the computer to use the audio. One line signal source can transmit video and audio.

9. Support key control volume and mute (SW1 dial switch)

supports

Desktop:

N Card compatible screen

B156ZAN05.1 (4k 120Hz); 1080p 300Hz screen

1080p 240Hz

Ne173qhm ny2

MNF601EA1-1

Ne156qhm_1y2

N156kme

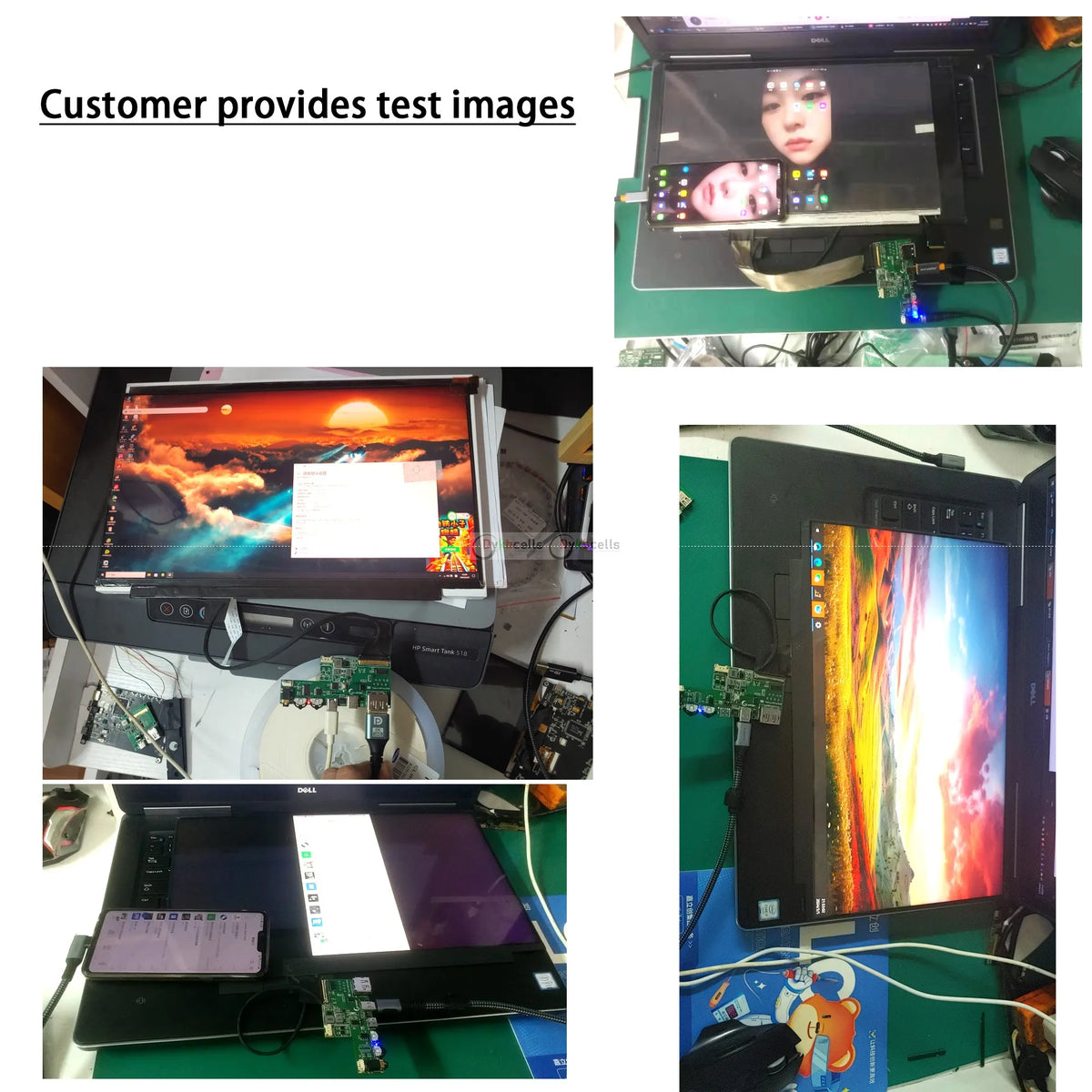

Screen tested by card A, where x represents any number

LP139UD1-SPC2 (3840 * 2160 60Hz), N156KME-GNA (2K165Hz) B133ZANxx. x B156ZANxx. x NE156QUMxxx LQ156M1JWxx B156HANxx. x, NV156QUM-N72 LTN156FLxx MNG007DA1-1, B156HAN08.2/0, nuclear display LQ156D1JW02, NV156FHM-N4N/K desktop T1000+nv140drm n61

Desktop 3080+b156zan05.1

Desktop Rx580+ne156qhm ny1

Desktop 3050ti+NE160QDM-NY2

Xbox (hdmi to dp)+NE160QDM-NY2 (only supports native 2k)

Notebook 3070+n161hca ga1

Notebook 3070+Ne156qhm ny1

5300g+N156KME-GNA

5600g+N156KME-GNA

B156ZAN03.2

NV156FHM-NY0

N156hra ea1
