ESP32-S2 Development Board Compatible with PS4 9.0 Modd

ESP32-S2 Development Board Compatible with PS4 9.0 Modded Firmware USB Port

$28.99 $39.99

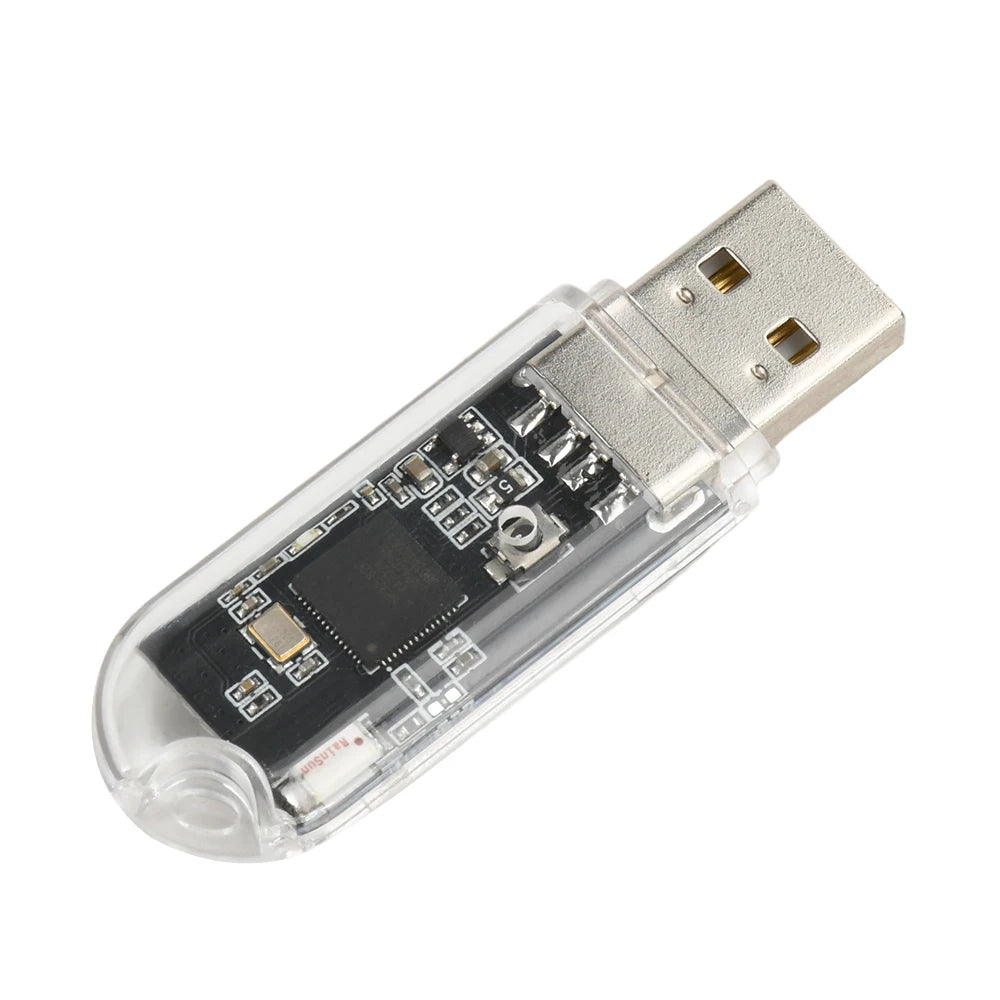

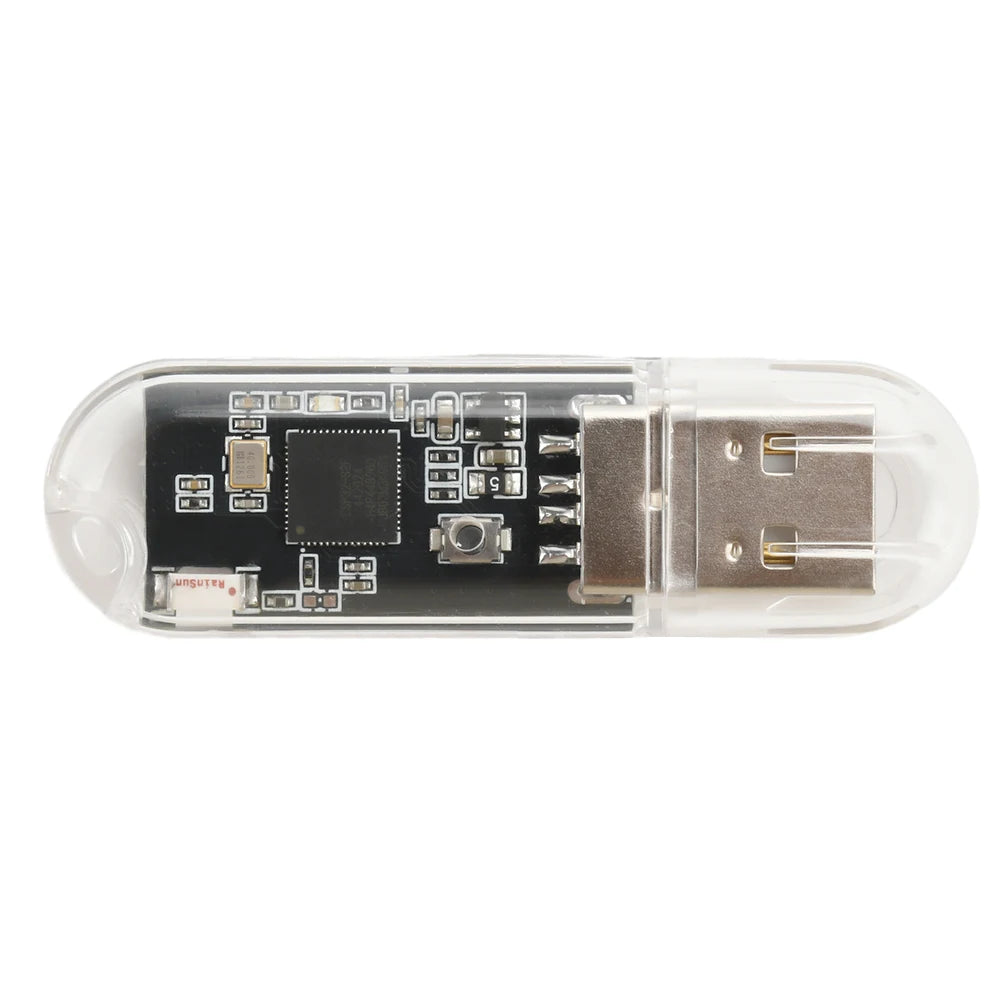

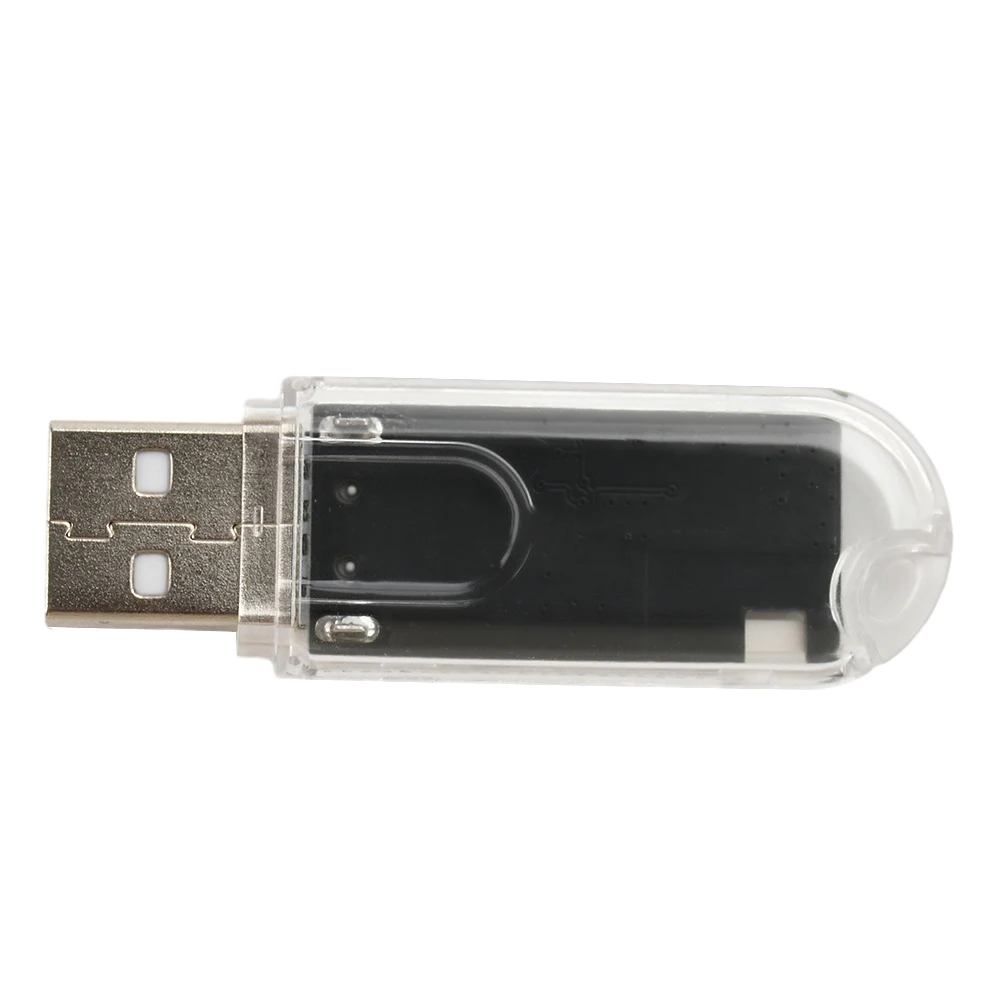

With casing

Product Features:

1. Premium materials ensure durability, extended service life, and stable performance.

2. Compact size and lightweight design facilitate portability with plug-and-play functionality.

3. On-board ESP32-S2 chip with 4MB Flash storage supports PS4 9.0 system flashing.

4. Default firmware requires no additional programming; long-term stable operation upon USB insertion.

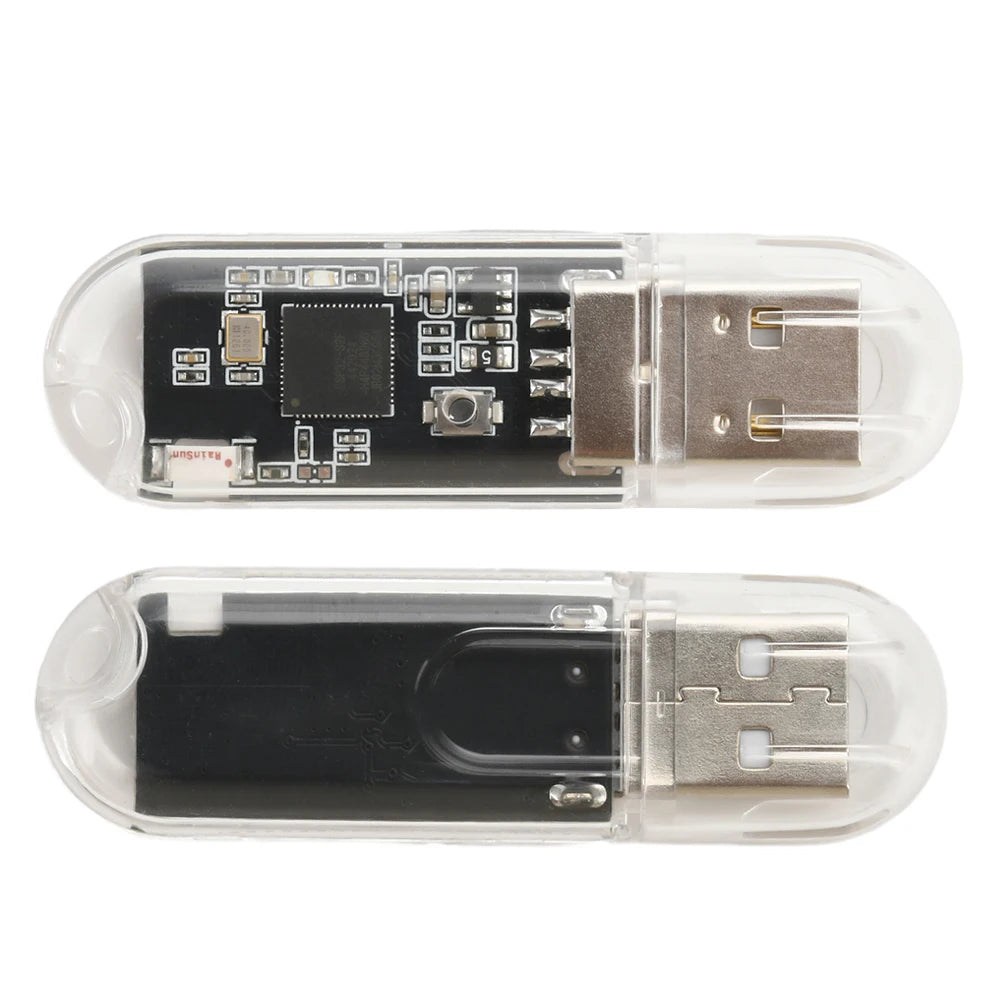

5. Plastic casing with access ports enables firmware updates without disassembly for user convenience.

Product Specifications:

Interface: USB port

Chip: ESP32-S2

Flash Storage Capacity: 4MB

Recommended Operating Temperature Range: –40 to 85 °C

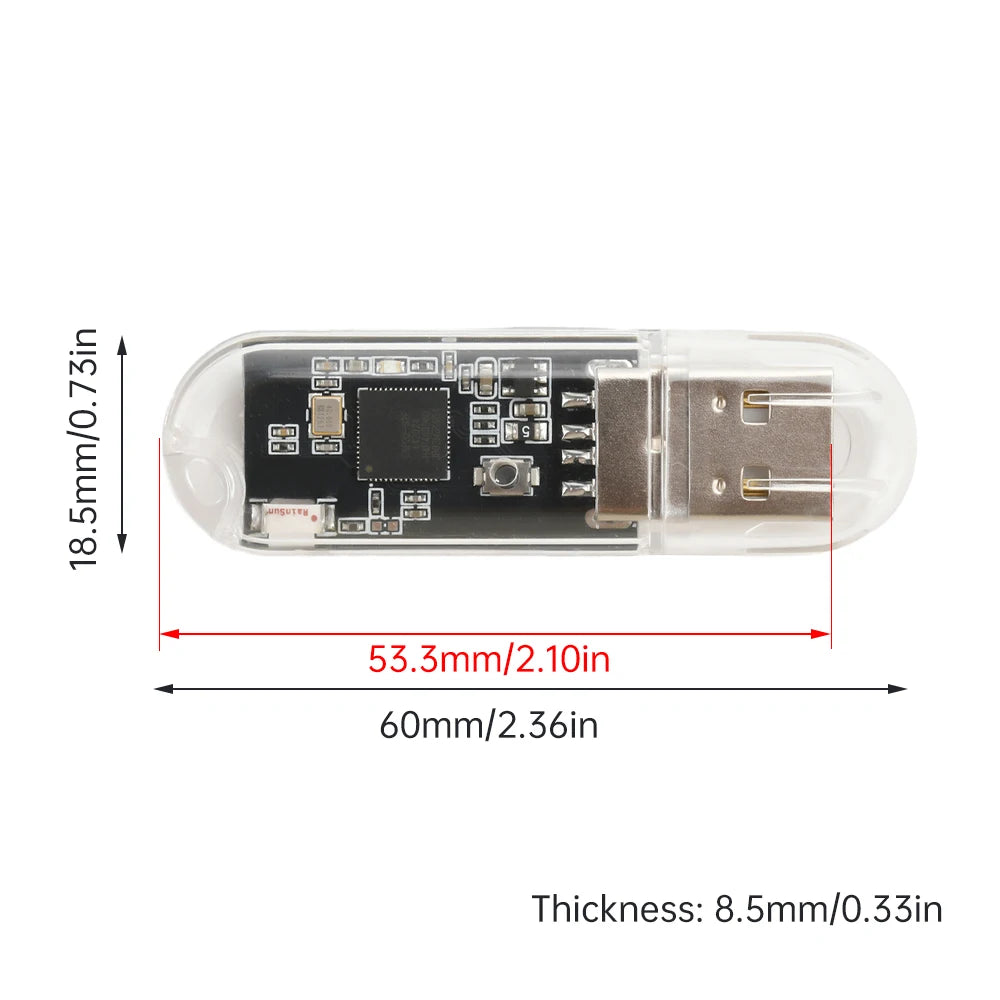

Dimensions: 60mm × 20mm

Product Description:

The pre-installed firmware enables immediate use upon receipt, eliminating the need for manual driver installation or firmware flashing. No repeated plugging and unplugging is required; it can remain permanently connected to the USB port for long-term stable operation and convenient use.

The upgraded model features a more compact and refined design compared to the base version. It is compatible with all USB ports on PS4 consoles, regardless of generation. The plastic casing incorporates access ports, enabling firmware programming without disassembly—further enhancing usability. (Firmware operation and programming procedures are identical to the base model, both utilising the ESP32-S2 chipset.)

Usage Instructions:

Operation is straightforward: insert the module into the PS4's USB port, power on the console, then connect to the module's WiFi hotspot (name: ‘PS4_G.R.H’, no password required). Navigate to Settings -> User Guide to access the automated setup webpage. After a brief wait (typically around 15 seconds), the interface will confirm successful GoldHEN installation. Exit to launch games normally.

GoldHEN v2.3

1. WiFi Name: PS4_G.R.H

WiFi Password: None

2. Navigate to Settings -> User Manual

Product Contents:

1x Development Board

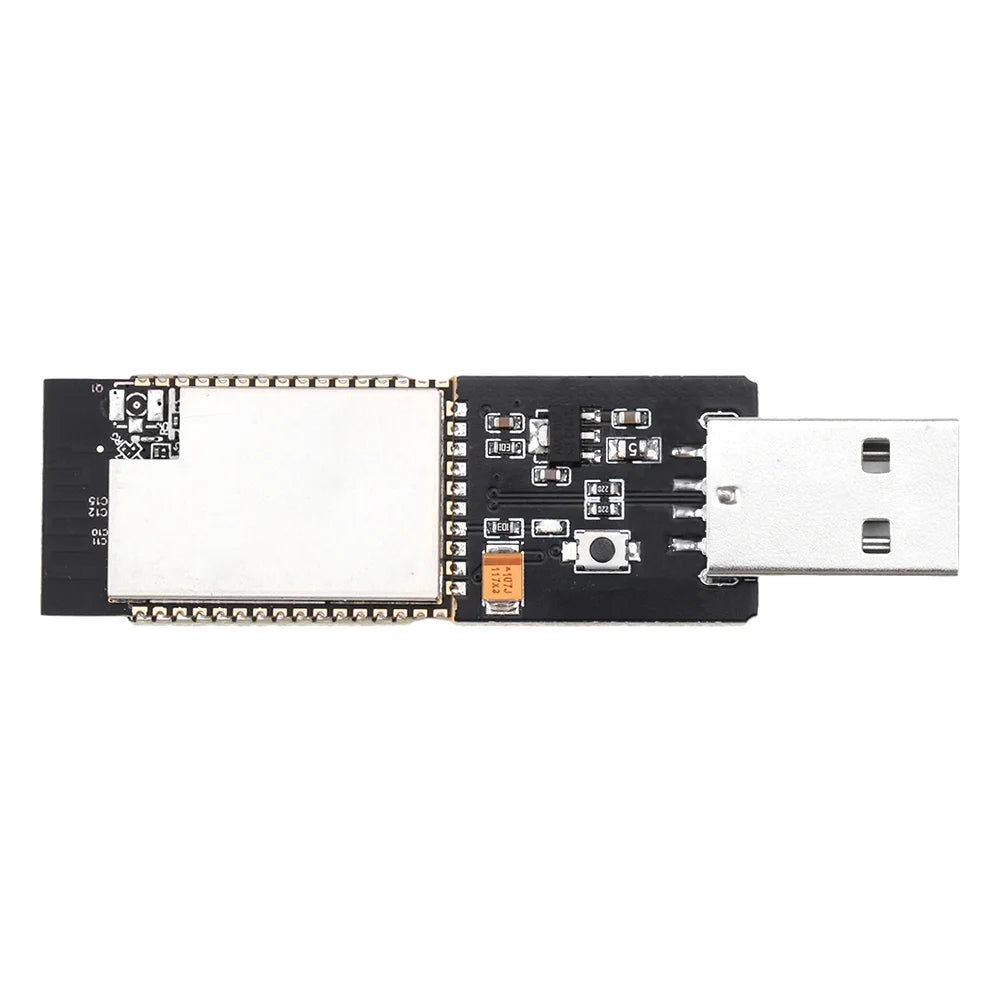

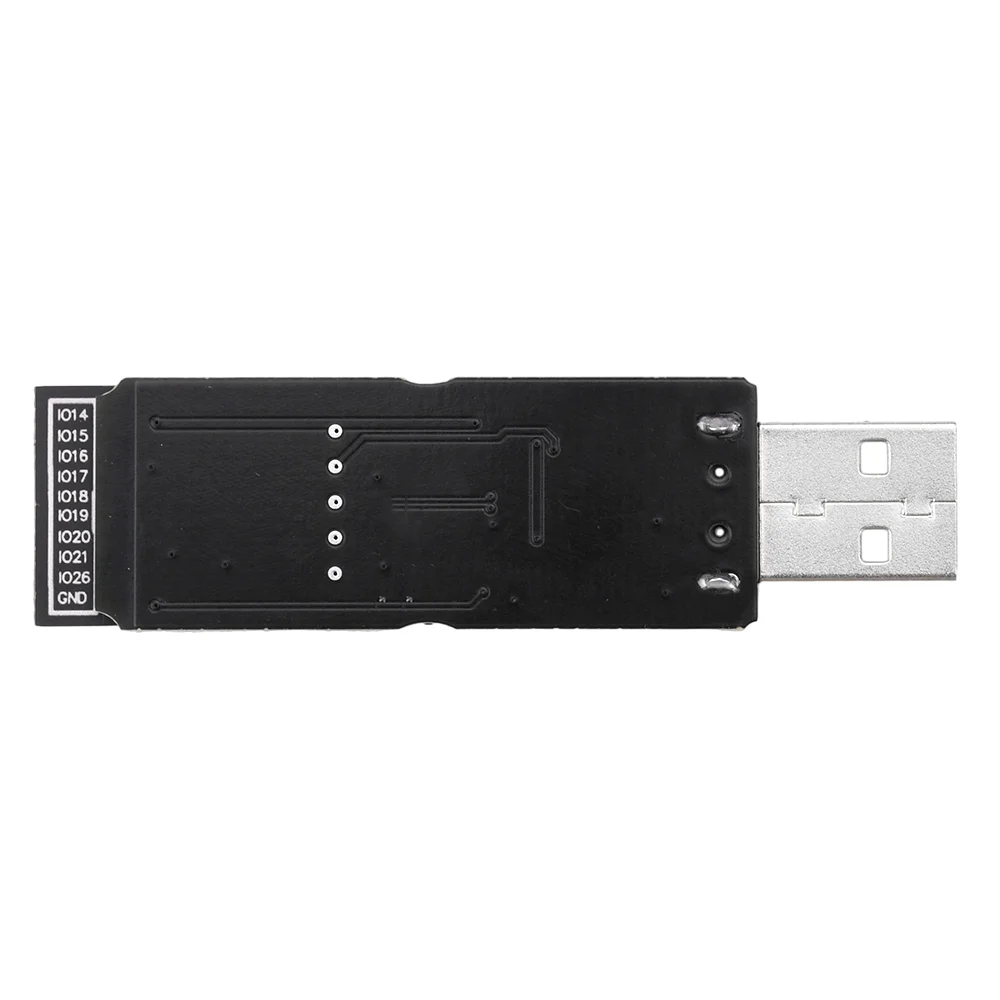

Without casing

Product features:

1. Premium materials ensure durability and extended service life.

2. Compact size and lightweight design for easy portability.

3. Stable performance with plug-and-play functionality.

4. On-board ESP32-S2 module with 4MB Flash storage, suitable for PS49.0 flashing and tinkering without USB cables.

5. Eliminates the need for manual driver installation or firmware flashing. No repeated plugging/unplugging required—can remain permanently connected to the USB port for long-term stable operation and user convenience.

Product Description:

Utilises the ESP32-S2 module with 4MB Flash storage capacity, suitable for PS49.0 firmware flashing and tinkering without USB cables. Direct USB port connection offers enhanced convenience.

Pre-installed firmware enables immediate use upon receipt, eliminating the need for manual driver installation or firmware burning. No repeated plugging/unplugging required—can remain permanently connected to the USB port for long-term stable operation and effortless use.

Product Specifications:

The ESP32-S2 is a versatile Wi-Fi MCU module featuring an on-board PCB antenna. Its powerful capabilities and extensive peripheral interfaces make it suitable for applications such as wearable electronics and smart home devices.

MCU:

Integrated ESP32-S2 chip with Xtensa® single-core 32-bit LX7 microprocessor, supporting clock frequencies up to 240 MHz

128 KB ROM

320 KB SRAM

16 KB RTC SRAM

Wi-Fi:

802.11 b/g/n

Data rates up to 150 Mbps

Frame aggregation (TX/RX A-MPDU, RX A-MSDU)

0.4 µs guard interval

Operating channel centre frequency range: 2412 ~ 2484 MHz

Hardware:

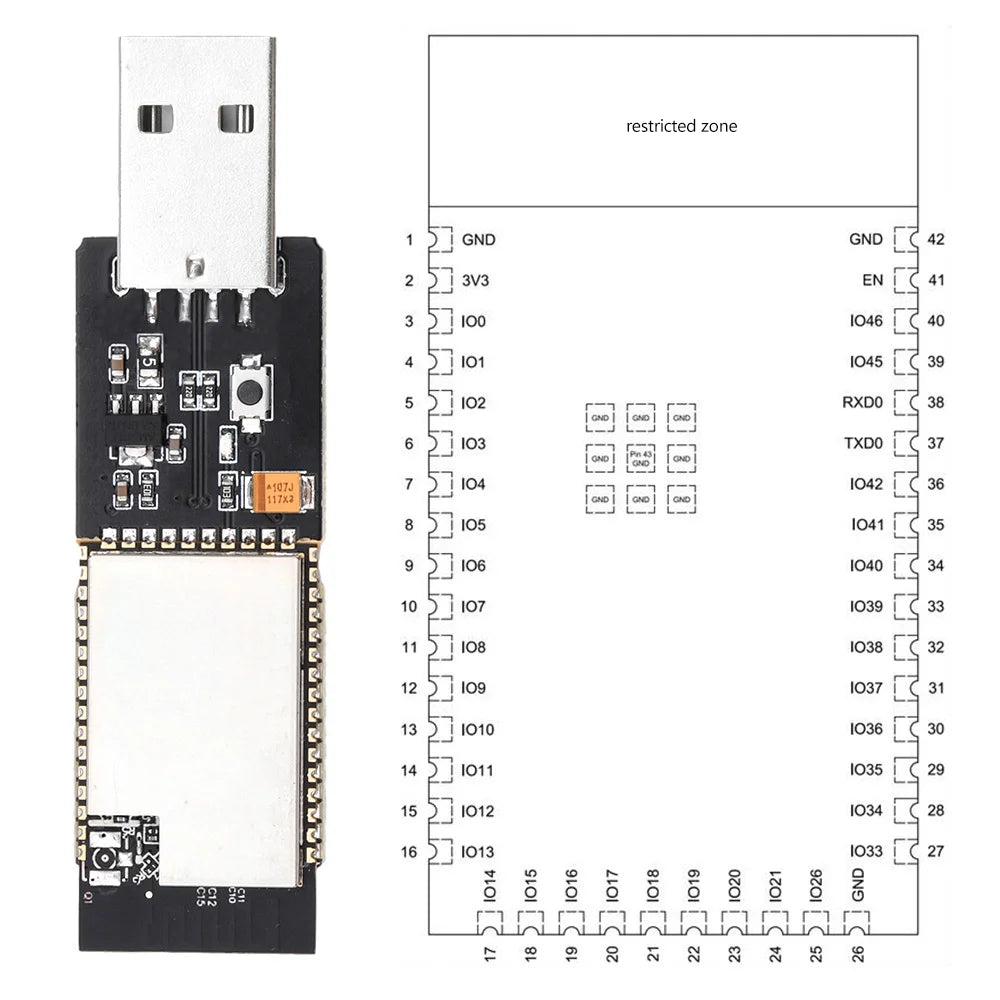

Module interfaces: GPIO, SPI, LCD interface, UART, I2C, I2S, Camera interface, IR, Pulse counter, LED PWM, USB 1.1 OTG, ADC, DAC, Touch sensor, Temperature sensor

40 MHz integrated crystal oscillator

4 MB SPI flash

Operating voltage/supply voltage: 3.0 to 3.6 V

Recommended operating temperature range: –40 to 85 °C

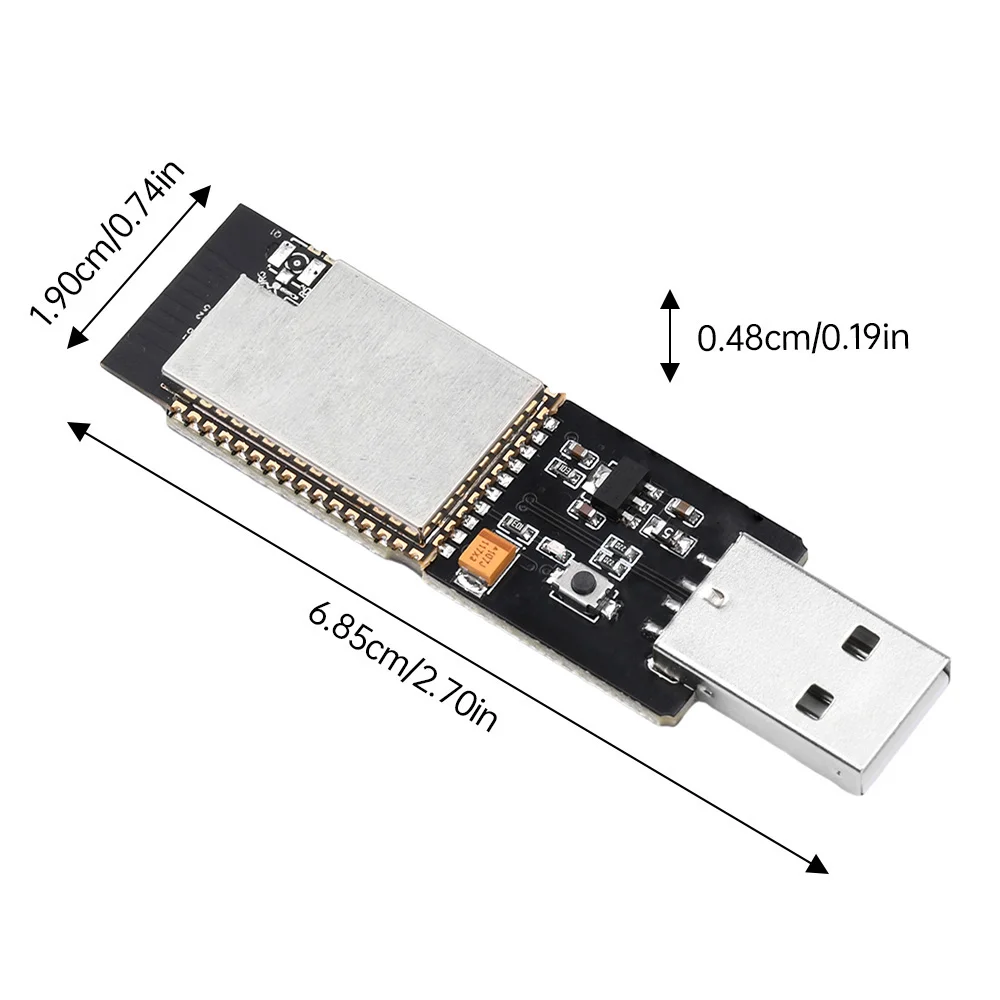

Dimensions: 68 mm × 18 mm

Product list:

1 × Development board
