Handheld Compact Portable Battery Spot Welder LED-Illuminated Dual-Pulse Spot Welding Kit Welding Tool with Type-C Interface

$64.99 $87.99

Product Features:

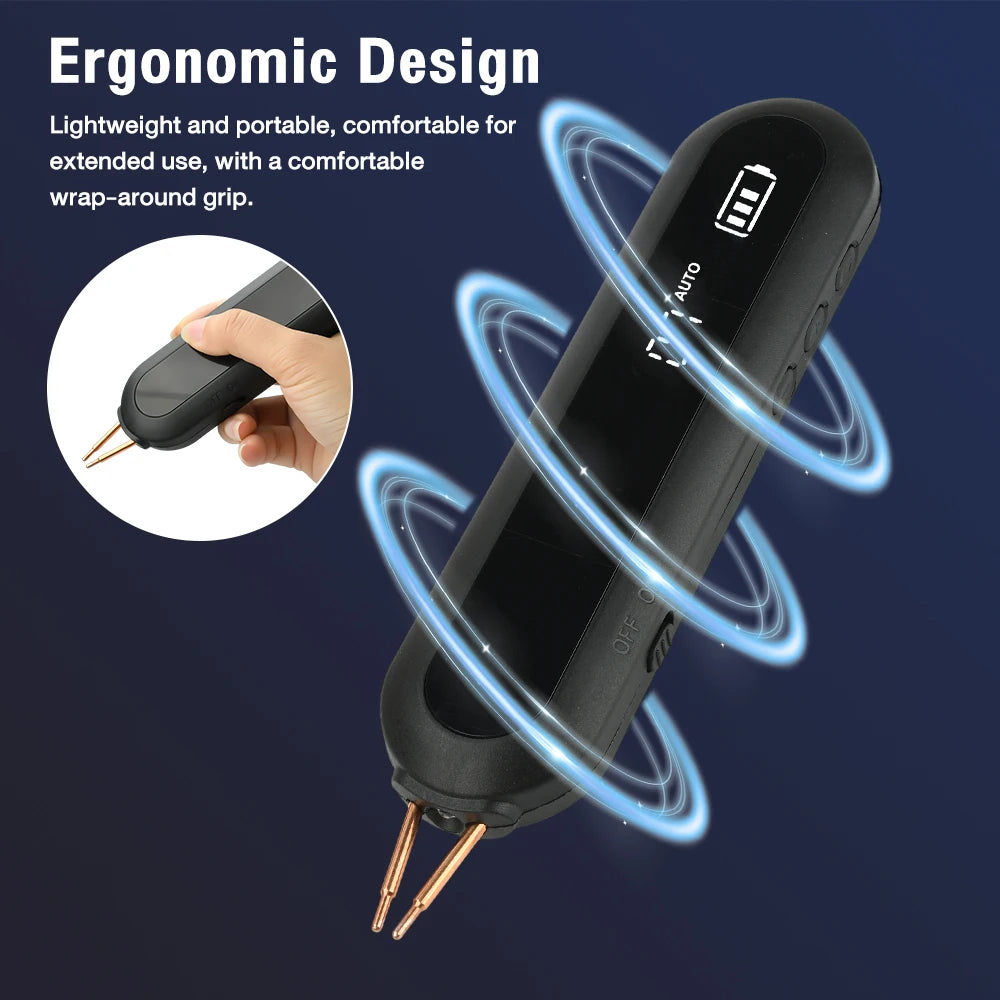

1. Portable Design: Fits comfortably in one hand for convenient operation, making mobile phone repairs on the go effortless.

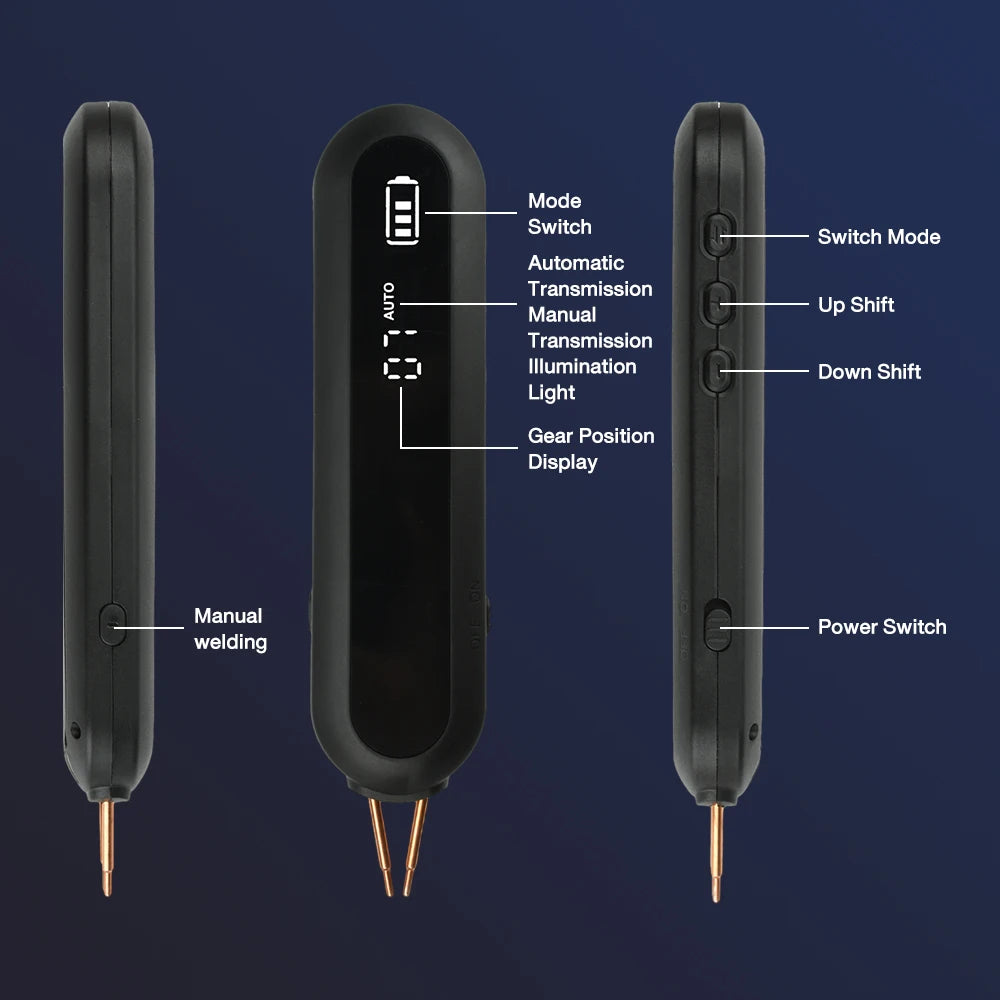

2. Dual Manual/Automatic Modes: 12-level power adjustment accommodates diverse spot welding requirements, capable of welding materials up to 0.25mm thick.

3. Removable Welding Needle: Replaces threaded needles with an embedded fixation system for effortless alignment.

4. Integrated LED illumination: Features 0-9 brightness levels for effortless operation in low-light conditions.

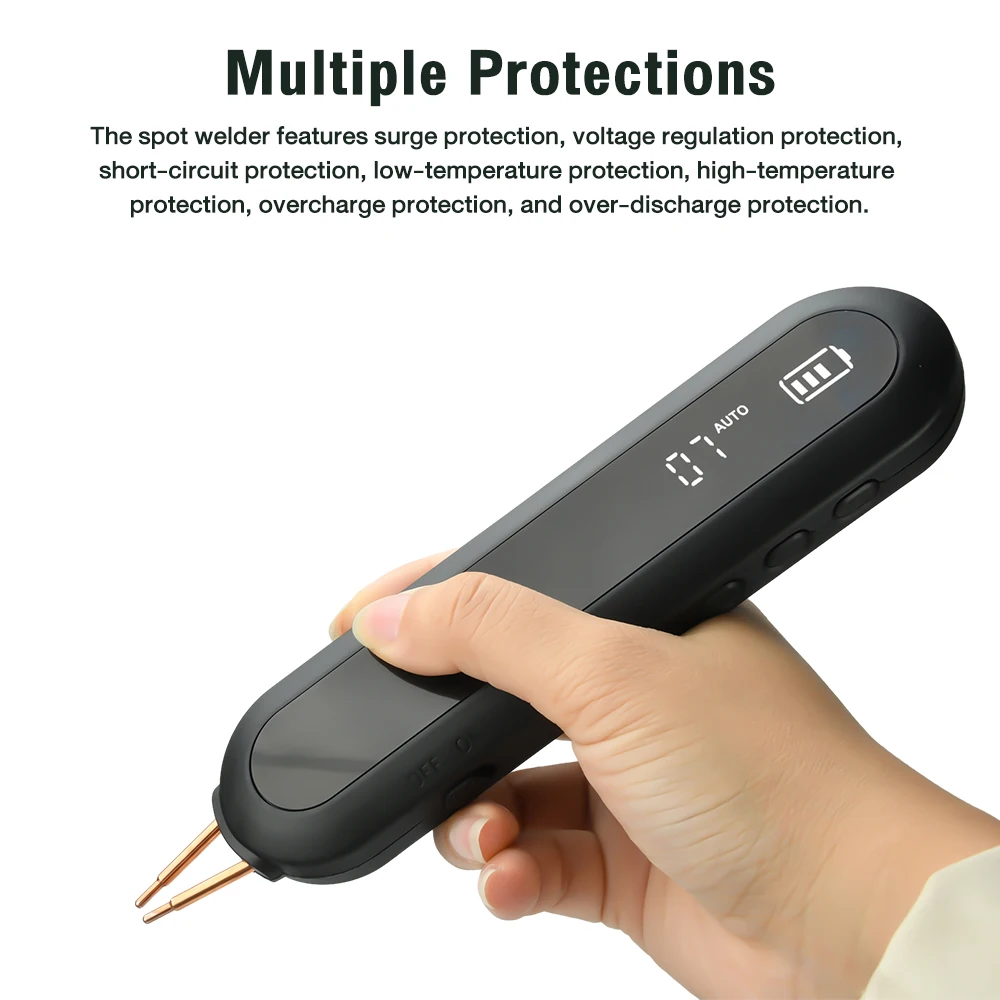

5. Comprehensive protection: Includes surge protection, voltage regulation safeguards, short-circuit prevention, low-temperature protection, high-temperature safeguards, overcharge protection, and over-discharge prevention.

6. Versatile application: Ideal for mobile phone repairs, DIY projects, lithium battery assembly, and other applications – the perfect tool for repair enthusiasts.

Product Specifications:

Product Name: Compact Handheld Spot Welder

Display Type: LED

Housing Material: ABS

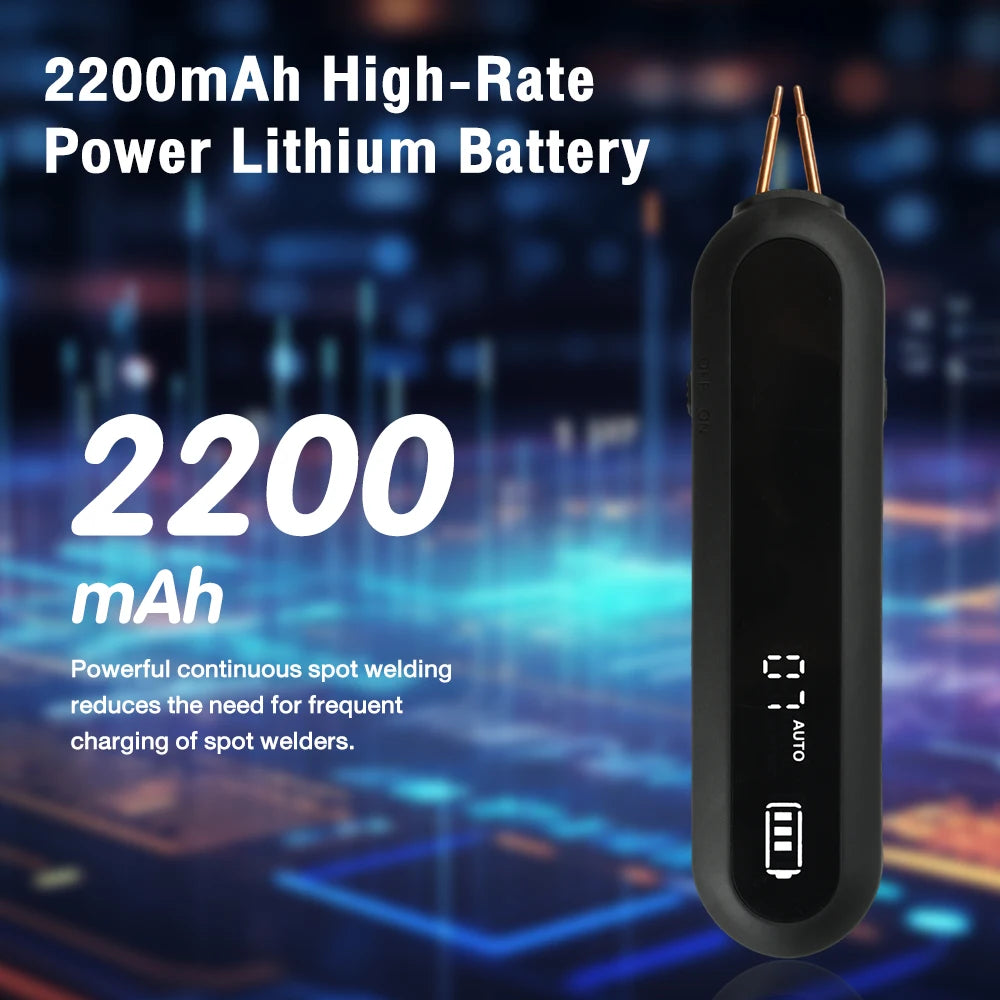

Battery Capacity: 2200mAh

Charging Input: DC5V/2A

Output Voltage: 4.2V

Output Current: 800A

Battery Type: Lithium Polymer

Adjustable Settings: 12-level adjustment

LED Illumination: 0-9 level adjustment

Charging Interface: Type-C

Welding Thickness: 0.1mm–0.25mm

Copper Pin Material: Pure Copper

Copper Pin Dimensions: Approx. 3×50mm

Copper Pin Connection: Threaded, Detachable

Common Troubleshooting:

1. If the device fails to power on, this may indicate low battery charge or a faulty mainboard. First, verify the charging cable and charger are functioning correctly.

2. If the device powers on but does not function, inspect both soldering pins for foreign objects causing a short circuit, or ensure soldering pin mode is activated. 3. If the illumination light fails to illuminate, verify the setting is not in the 0-level off state.

4. Sudden shutdown during operation may result from prolonged high-power usage causing internal overheating and triggering protective shutdown. Allow sufficient cooling before restarting.

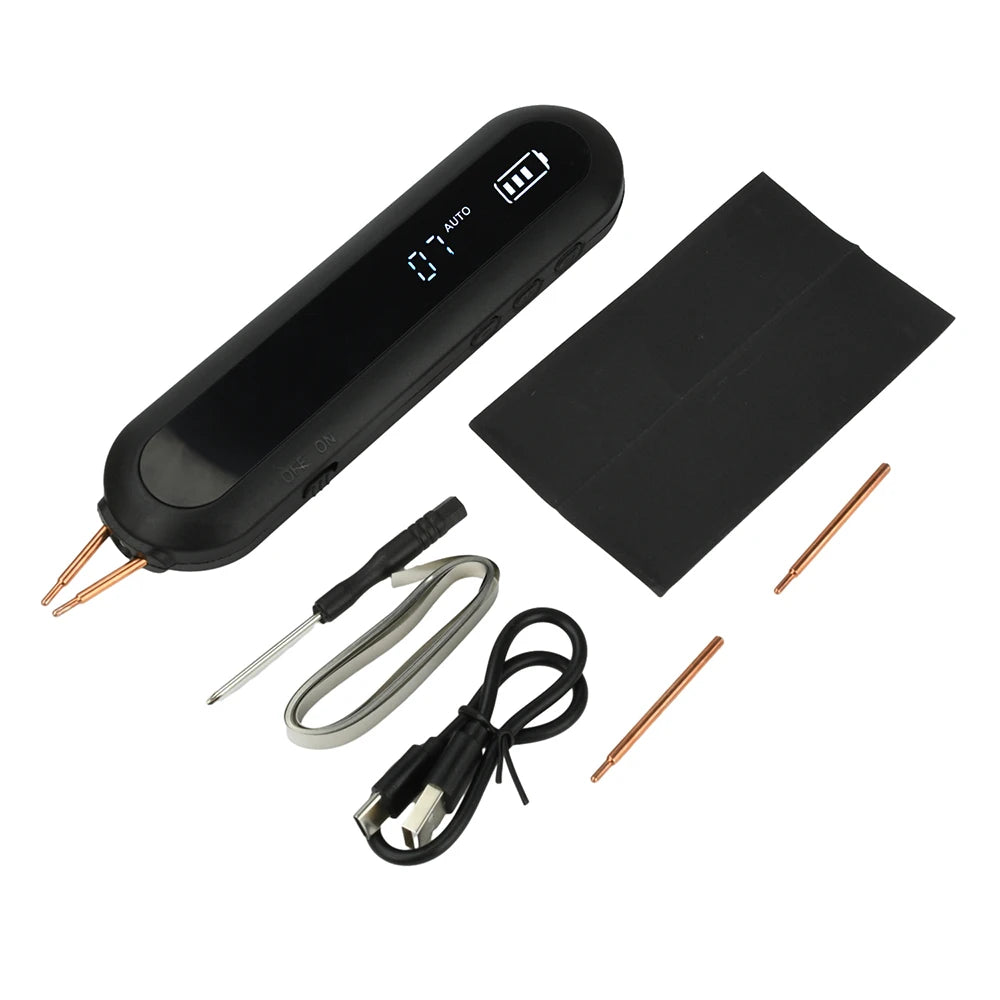

Packing List:

Spot Welder ×1

Type-C Charging Cable ×1

Sandpaper ×1

2m Nickel Coil ×1

Welding Pins ×2

Screwdriver ×1
