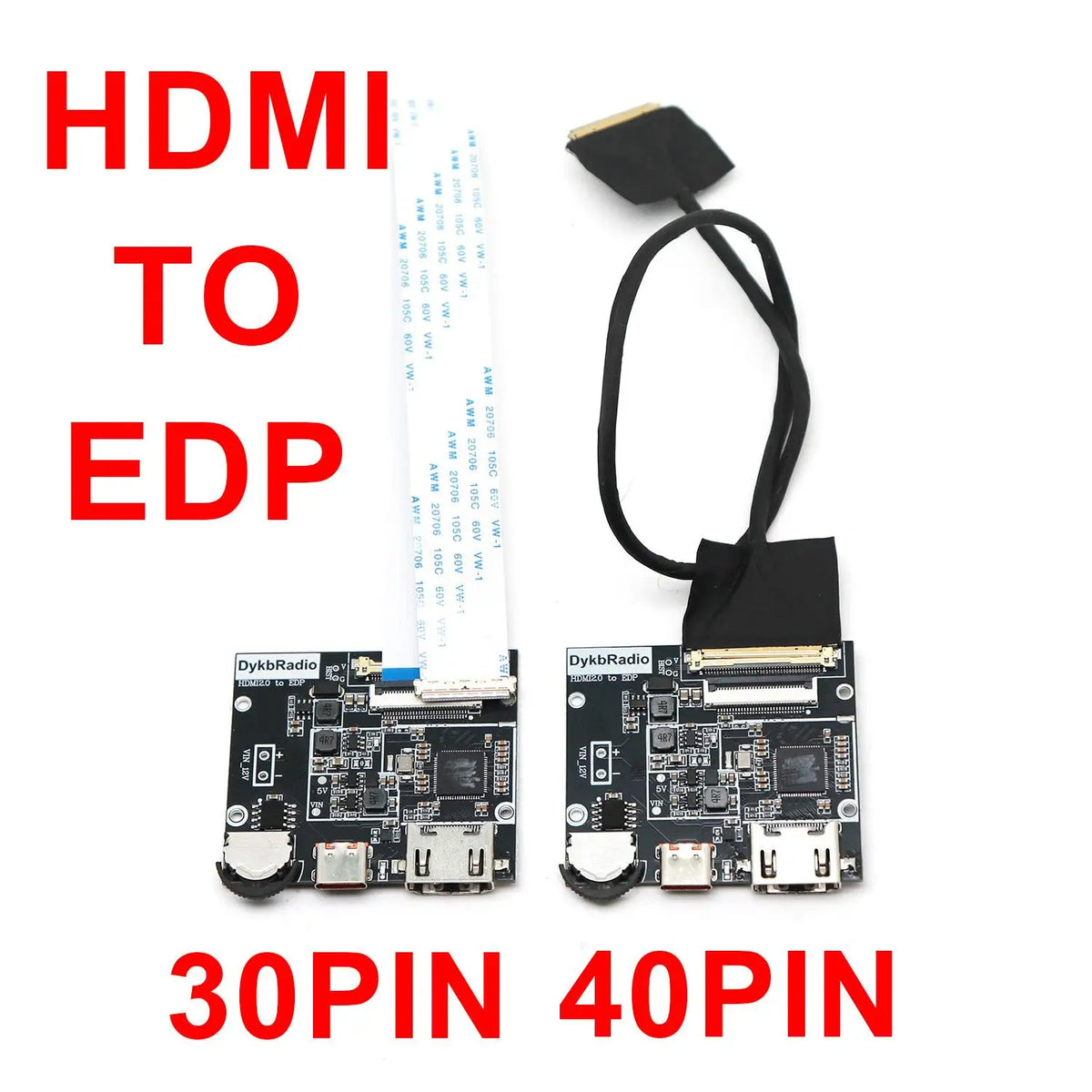

HDMI to EDP Converter Board 30Pin 40Pin 60Hz LCD Controller Driver for 10-18 Inch Laptop Screen DIY Monitor Projector Display

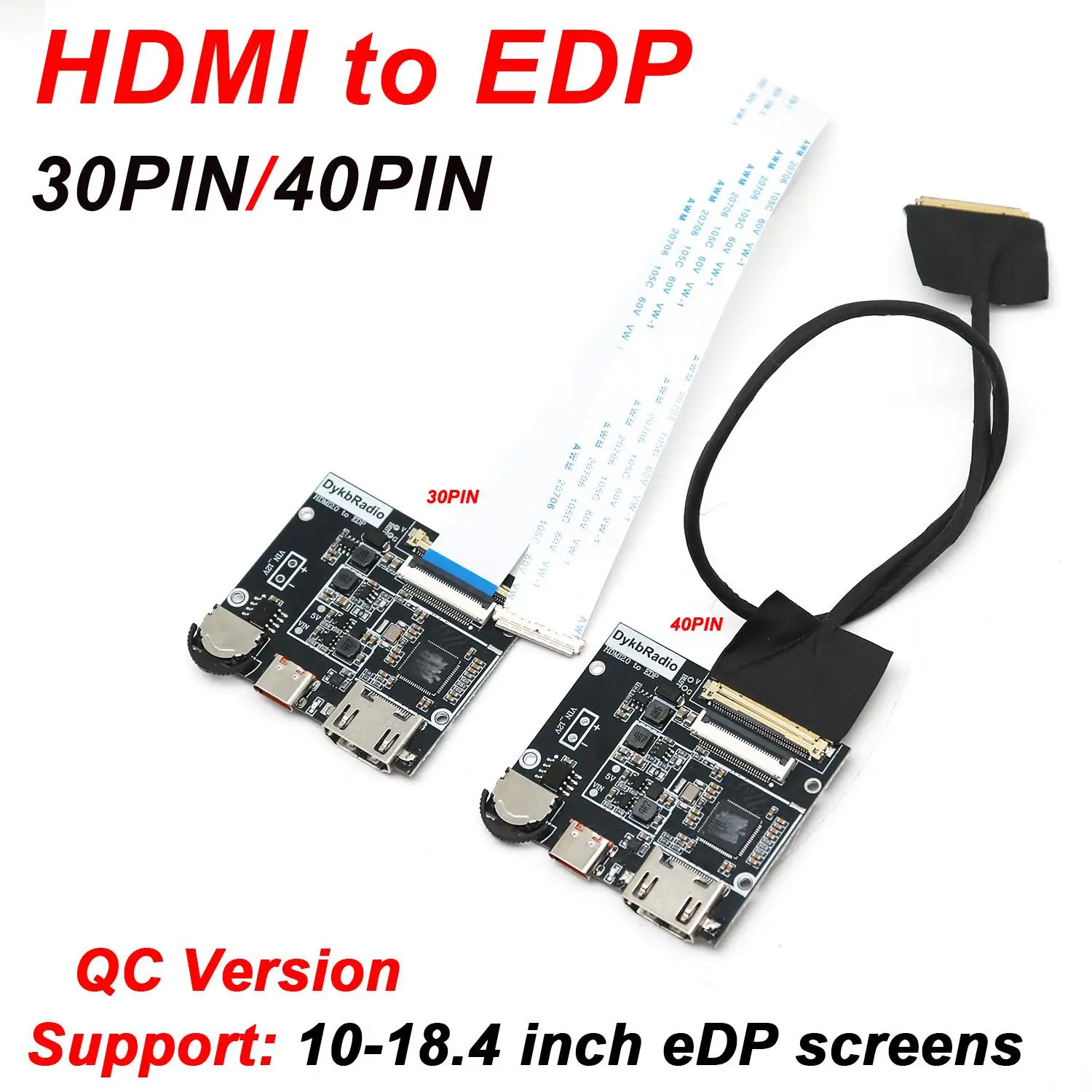

2K/4K – No Programming Required – HDMI to eDP LCD Driver Board for 30PIN / 40PIN, 10" to 18.4" Laptop Panels (QC version)

Product Description:
This HDMI to eDP driver board is designed for 10‑inch to 18.4‑inch laptop LCD panels (eDP interface, 30‑pin or 40‑pin). No firmware programming needed– it automatically adapts to multiple resolutions. Features a scroll wheel for brightness adjustment (10%–100%) and on/off, with brightness memory after power‑off. Supports power delivery via PD (12V) up to 60W, enough for high‑power mini‑LED screens. Not hot‑pluggable – always disconnect power before plugging/unplugging eDP cable. Ideal for DIY monitors, laptop screen conversions, and portable displays.

Key Features:

• Plug & play: Auto‑adapts to common resolutions, no programming required

• Brightness control: Scroll wheel (left/right for brightness, press for on/off) with brightness memory

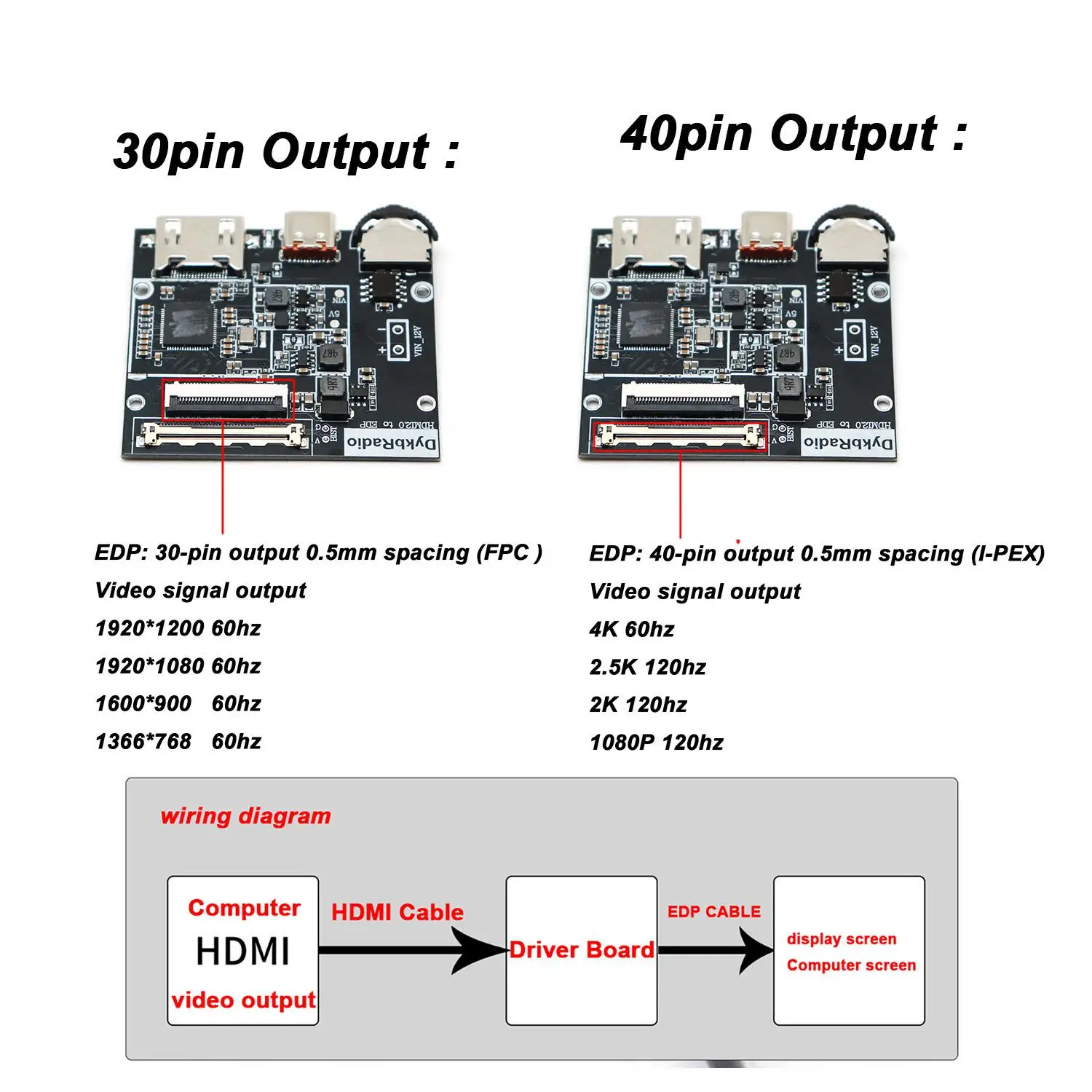

• Wide resolution support (40‑pin):
  1920×1080@120Hz,
  1920×1200@144Hz, 2560×1440@120Hz, 2560×1600@120Hz, 3200×1800@48Hz,
  3840×2160@60Hz, 3840×2400@60Hz (16:9 / 16:10)

• 30‑pin support: 1366×768, 1920×1080, 1920×1200 (2‑lane)

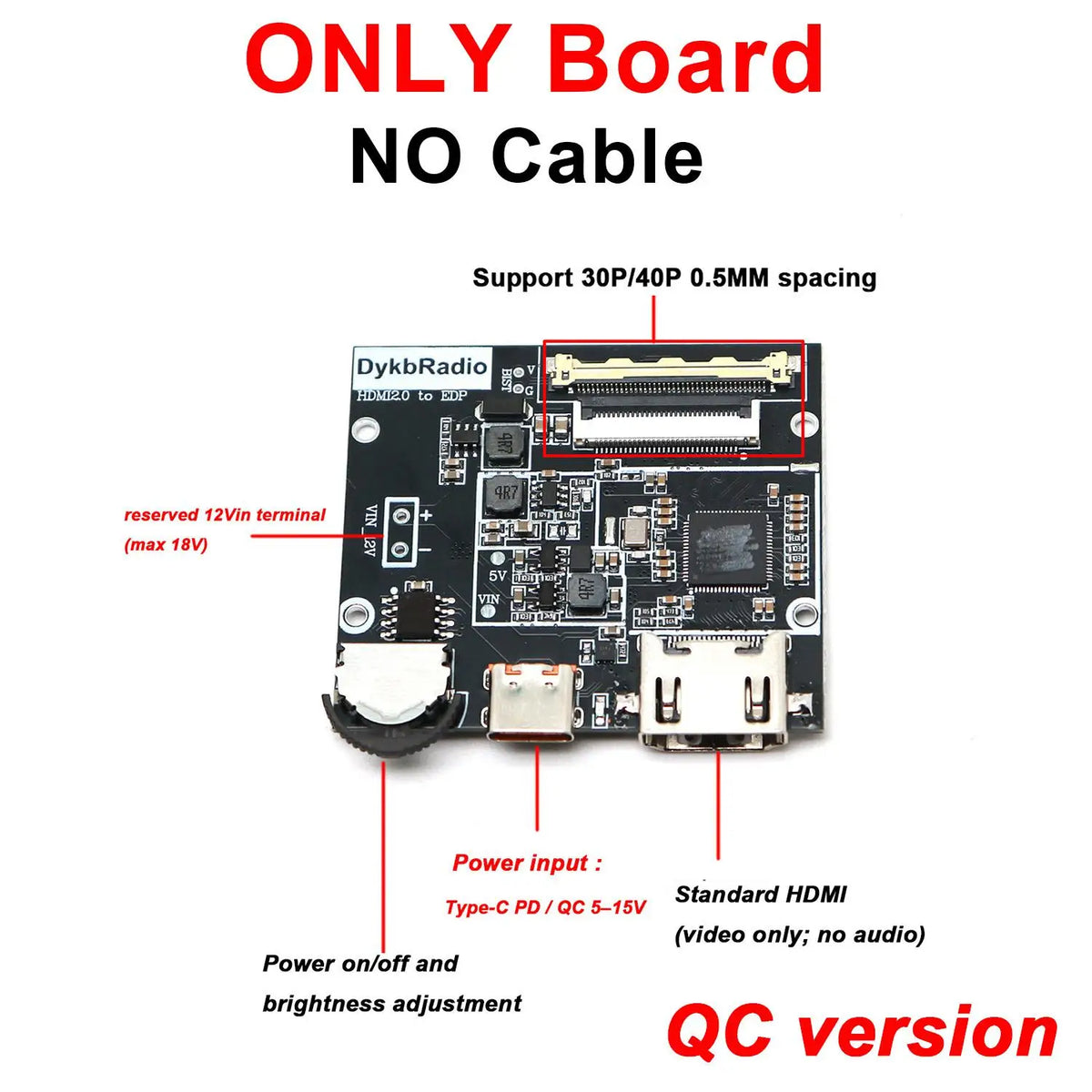

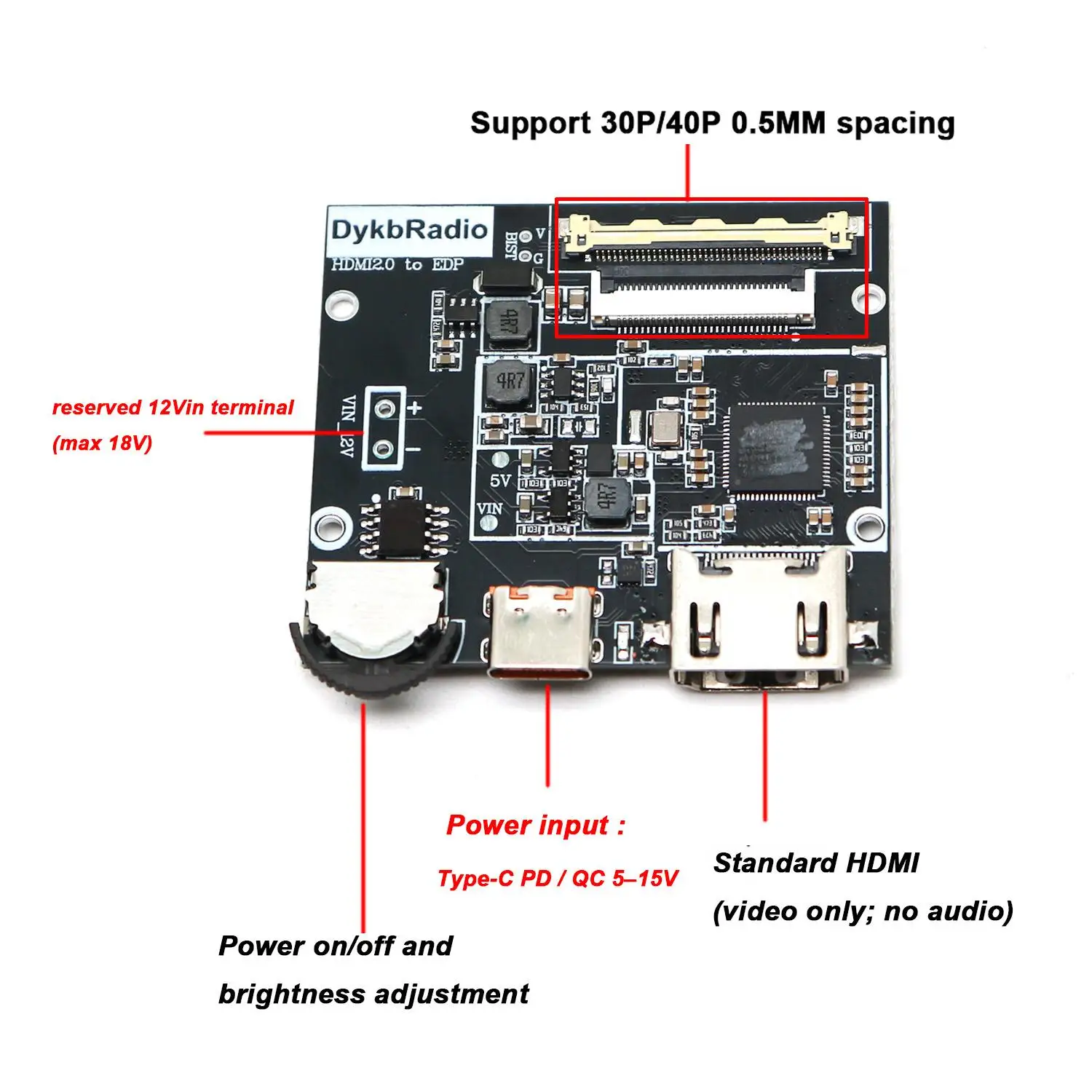

• Power input: Type‑C (PD / QC auto‑detection, supports 5–15V, 60W PD for 12V panel backlight) plus reserved 12Vin terminal (max 18V)

• BIST mode: Short the BIST pin to enter self‑test pattern (not supported by all panels)

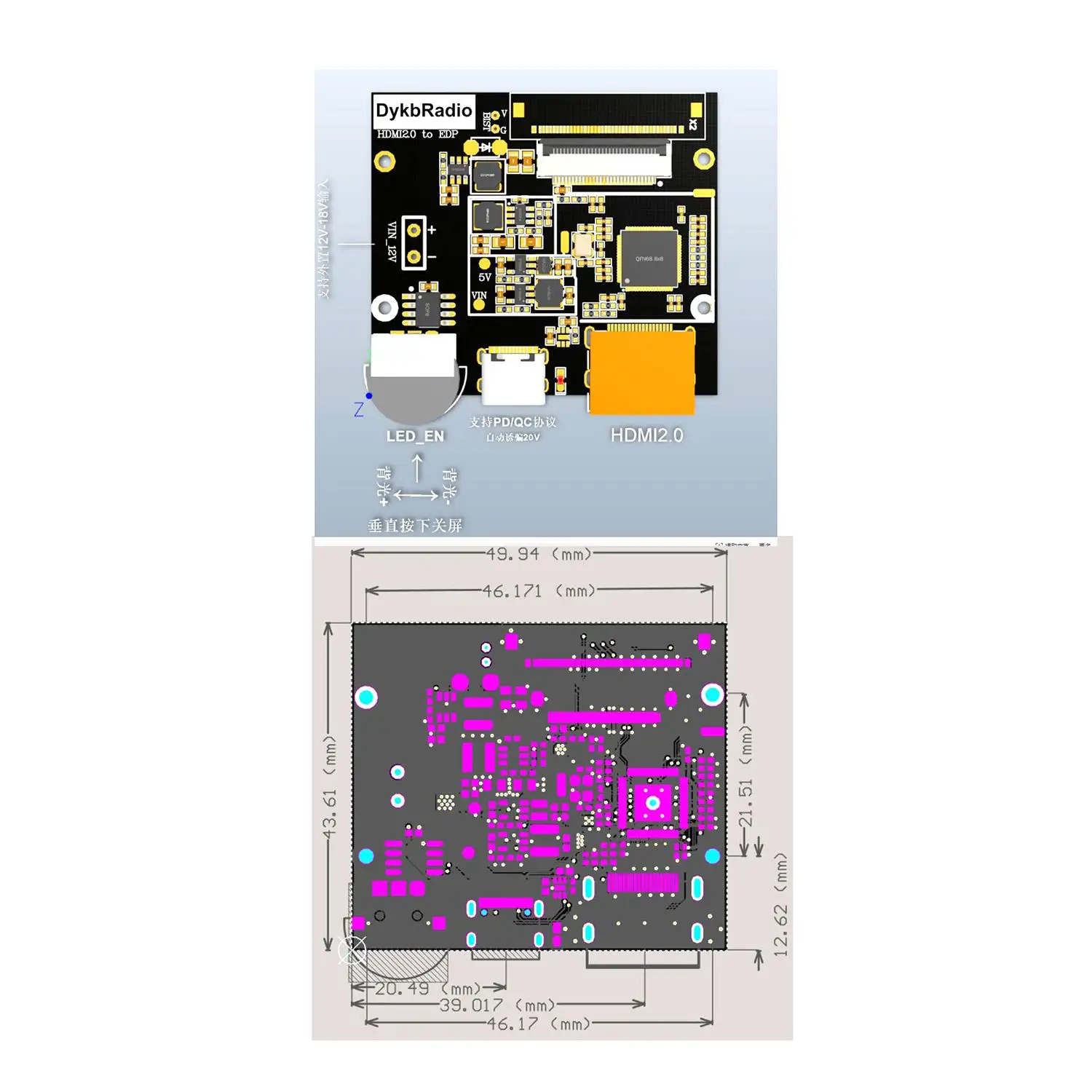

• Dimensions: (not specified, typical ~50×60mm)

• Operating temperature: –40°C to +85°C

• PWM dimming frequency: 1kHz (10%–100% stepless)

Important Notes:

• Not hot‑pluggable – always power off before connecting/disconnecting HDMI or eDP cable.

• Does notsupport 4:3 or non‑standard resolutions. No scaling – input resolution
  must match panel resolution (e.g., 1080p input to 1080p panel, 4K input
  to 4K panel).

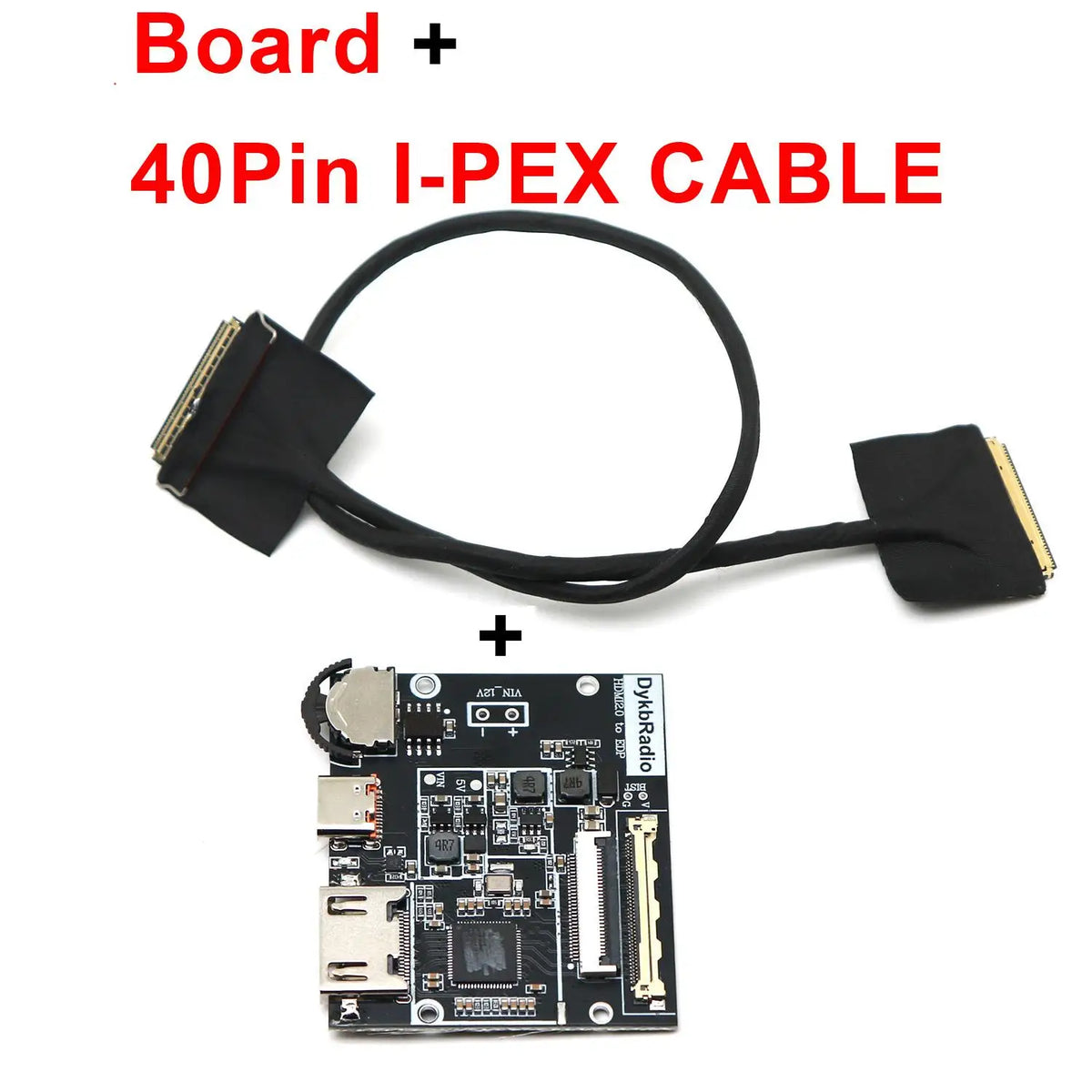

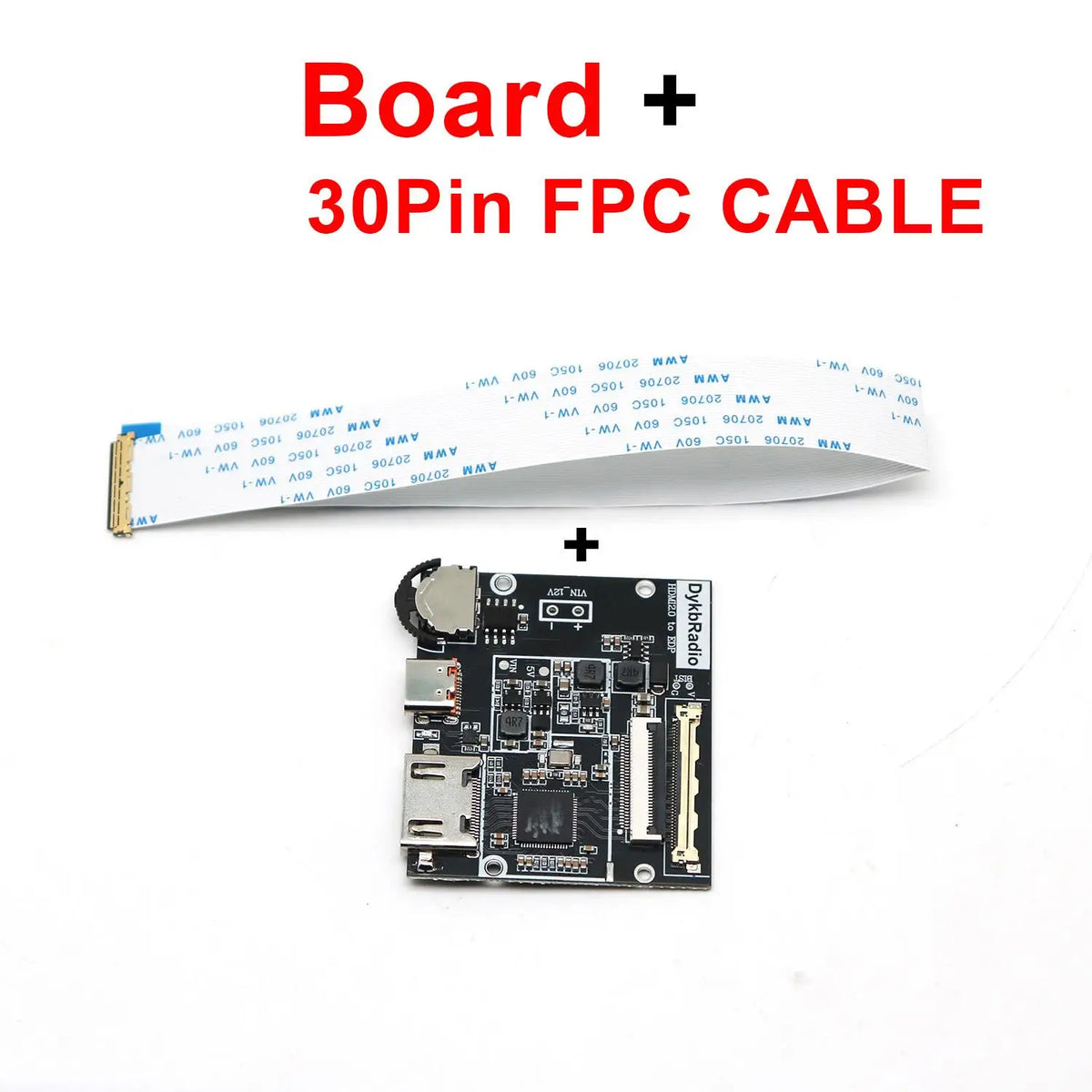

• For 30‑pin eDP, use reverse type FPC cable (0.5mm pitch, same‑side contacts).

Applications:

• Convert a laptop LCD panel into an external monitor

• DIY portable monitor (10–18.4 inch)

• Upgrade or repair notebook displays

• Industrial display driver replacement
