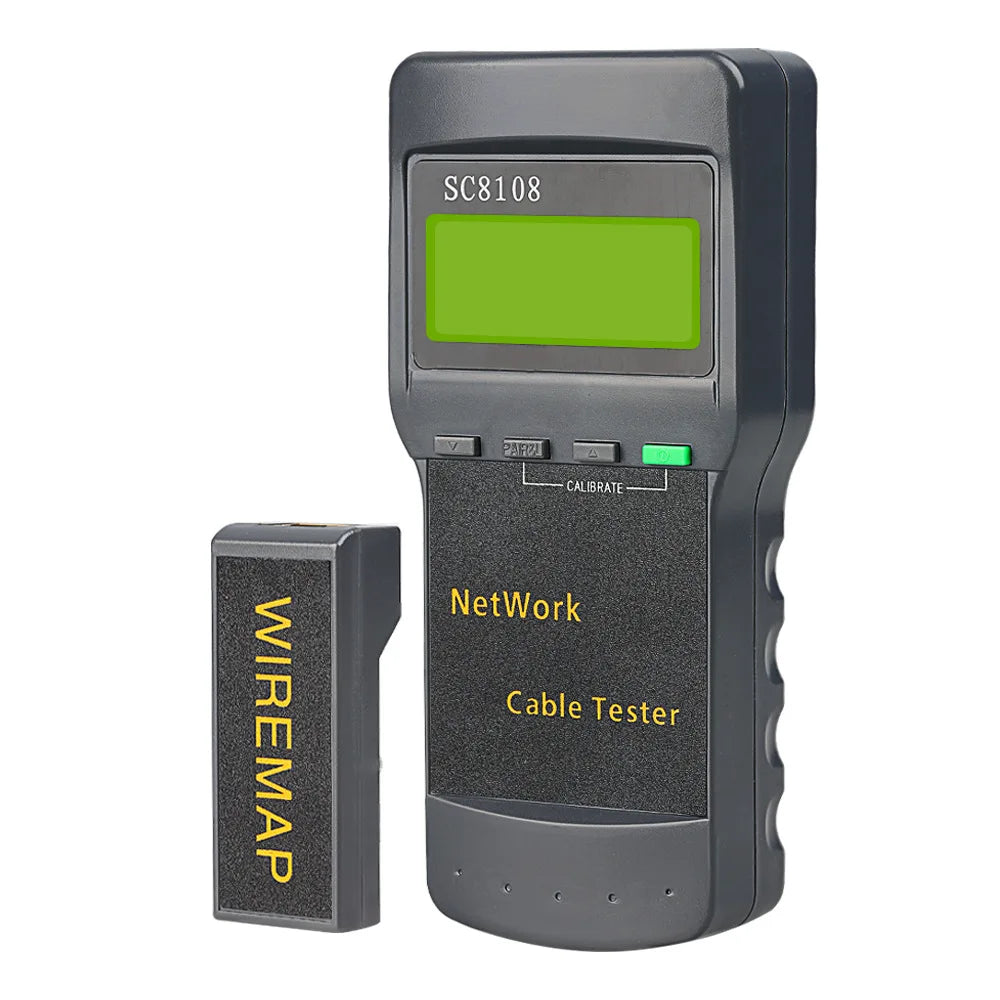

SC8108 Portable LCD Network Tester Meter&LAN Phone Cable Tester Meter with LCD Display CAT5 RJ45

SC8108 Portable LCD Network Tester Meter&LAN Phone Cable Tester Meter with LCD Display CAT5 RJ45

The main function characteristics:

The connectivity test can be carried out, single cable

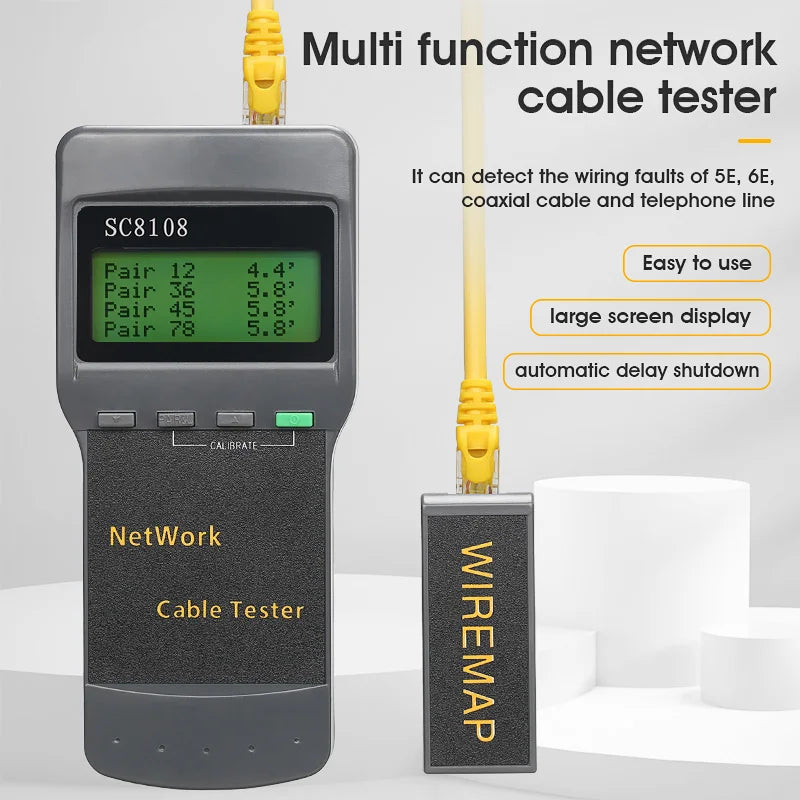

And can detect 5E, 6E coaxial cable and telephone line wiring fault, open circuit,short circuit, including: cross connection, reverse connection and series wound

Localization and connection / connection error.

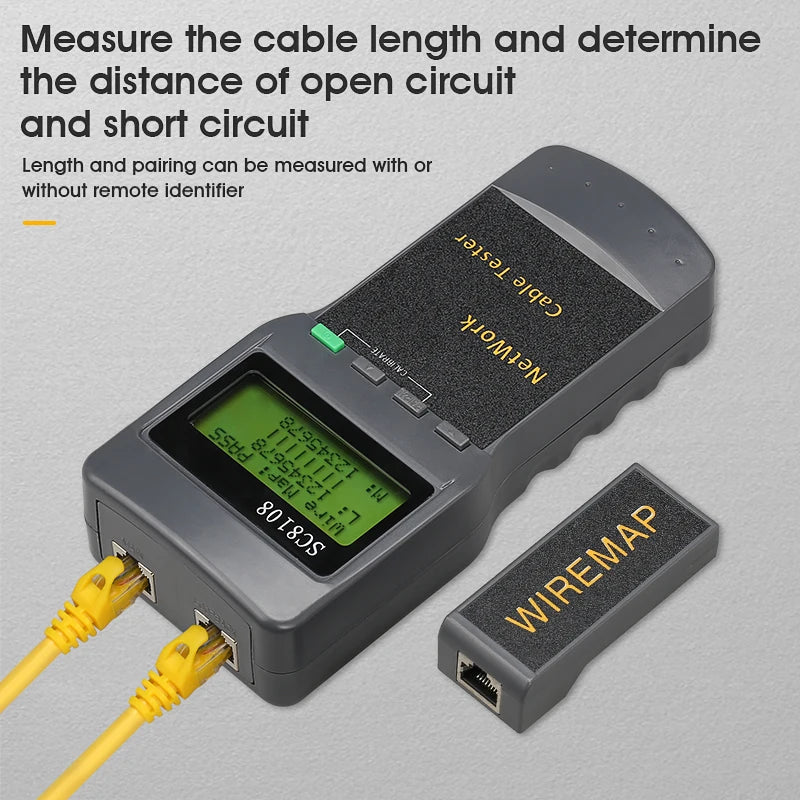

And measuring cable length, and location of the specific location of open circuitshort circuit

And the length of the cable dynamic calibration function, make the lengthmeasuring accuracy is as high as 97%

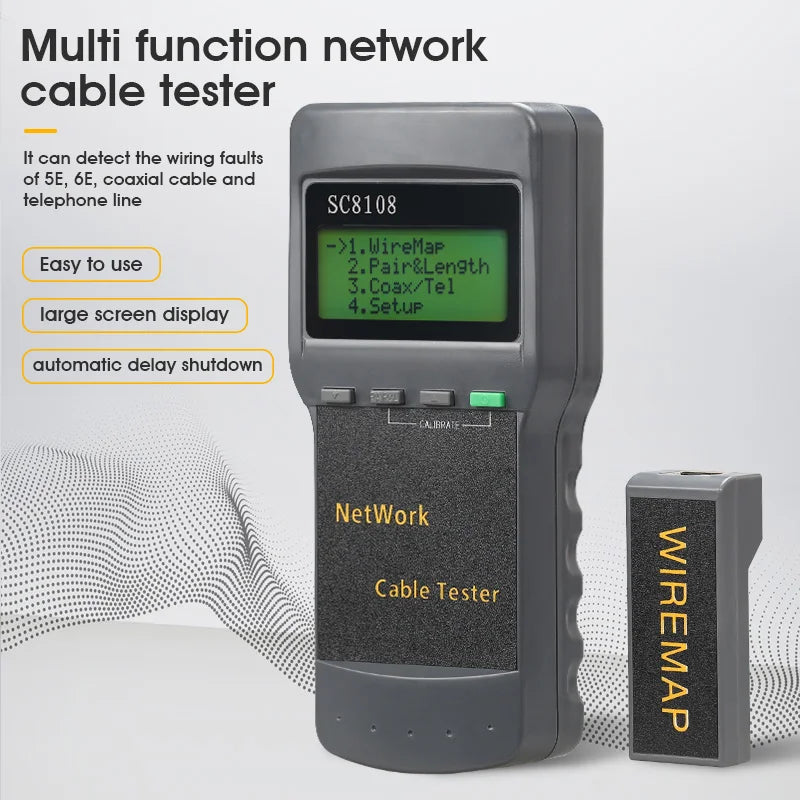

- easy to use, large screen display the test results stick out a mile

And easy to carry, long battery life (50 hours of standby time)

Automatic delay shutdown

And there are no length measurement and matched pairs were inserted on distalrecognizer can

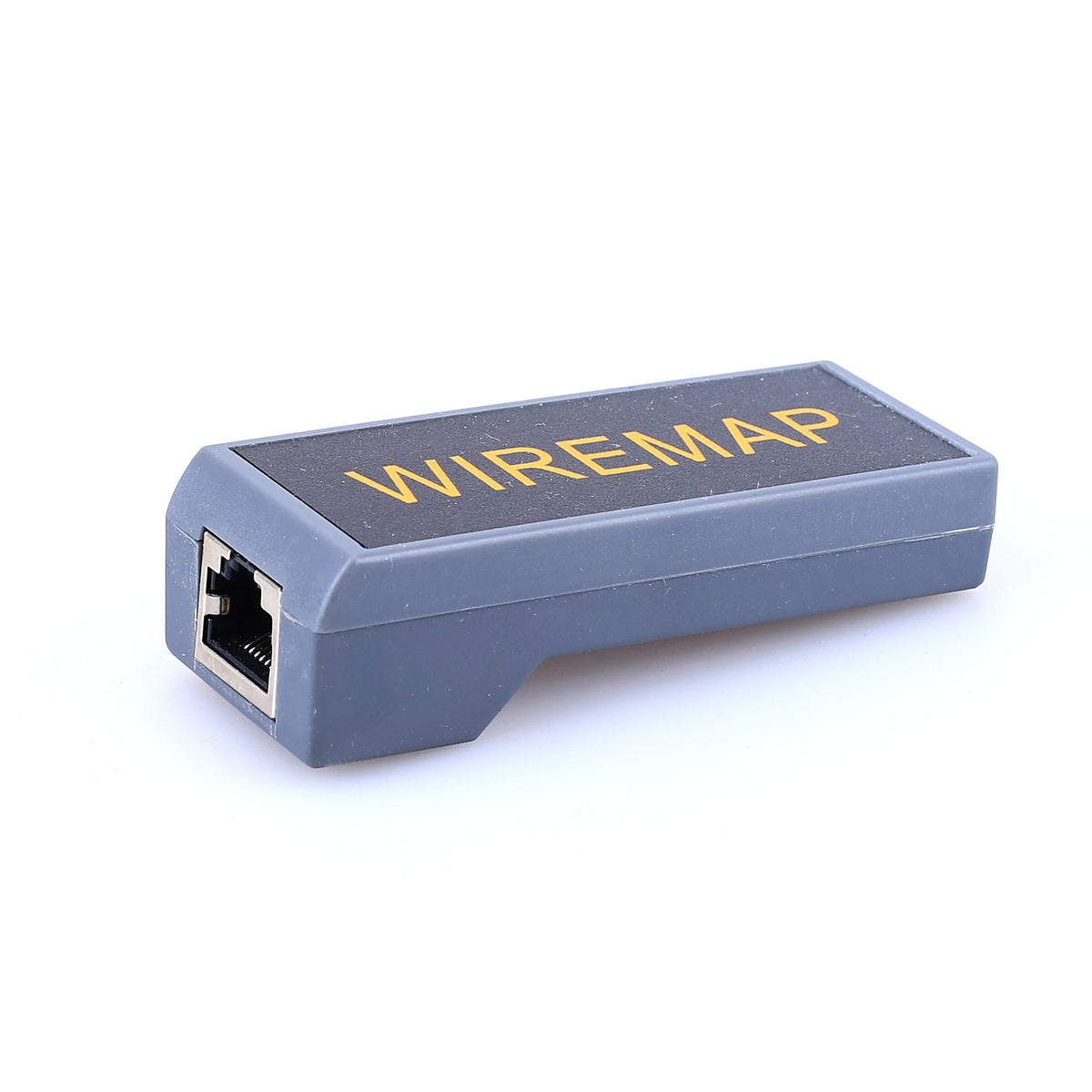

And cable location, 8 distal passive testing socket (identification number ID1-ID8)

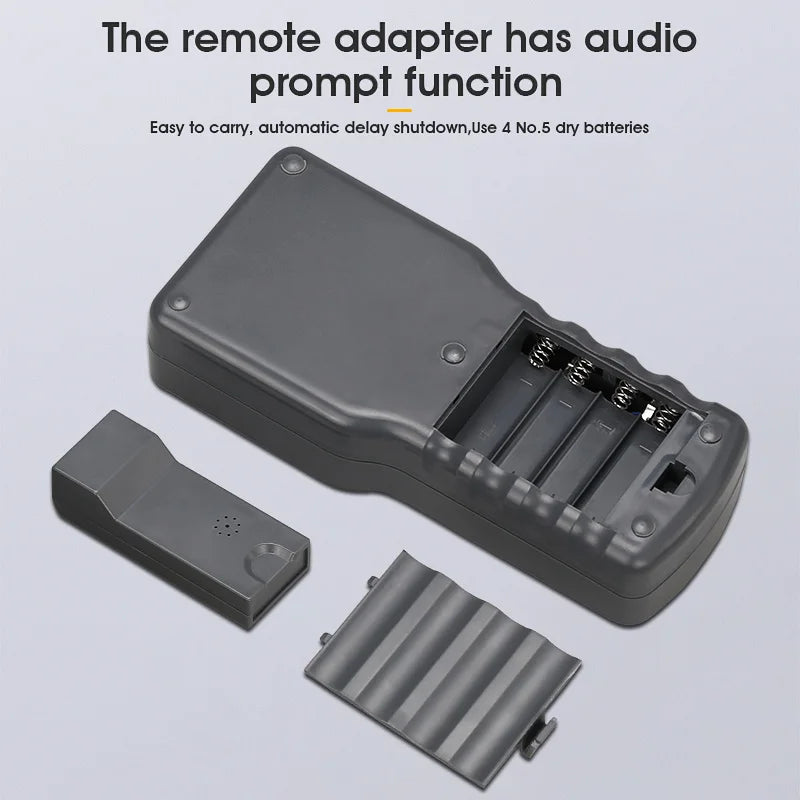

And the distal identification appliance audio prompt function

And self checking function, can automatically compensate the variation of the battery power, the influence of environmental temperature change

And MCU software watchdog design, reliable operation

Length measurement of twin twisted cable:
Scope : 1350M (31,200 FT)
Calibration accuracy : 3% (± 0.5m or ± 1.5 ft) (calibrating cable > 5 M)
Shipment accuracy : 5% (± 0.5m or ± 1.5 ft) (AMP, AT&T Class 5 cable)
Display: M or FT
Length calibration: User can set calibration factor by himself by a given length cable. The length of calibrating cable is more than 5m.
Working temperature: -10°C to 60°C
Powered by 4 AA batteires (NOT included)
